Simplecom CM202 Bi-Directional 2 Way DisplayPort Switch Selector DP 1.4 8K

Simplecom CM202 Bi-Directional 2 Way DisplayPort Switch Selector DP 1.4 8K

$29.00
$29.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

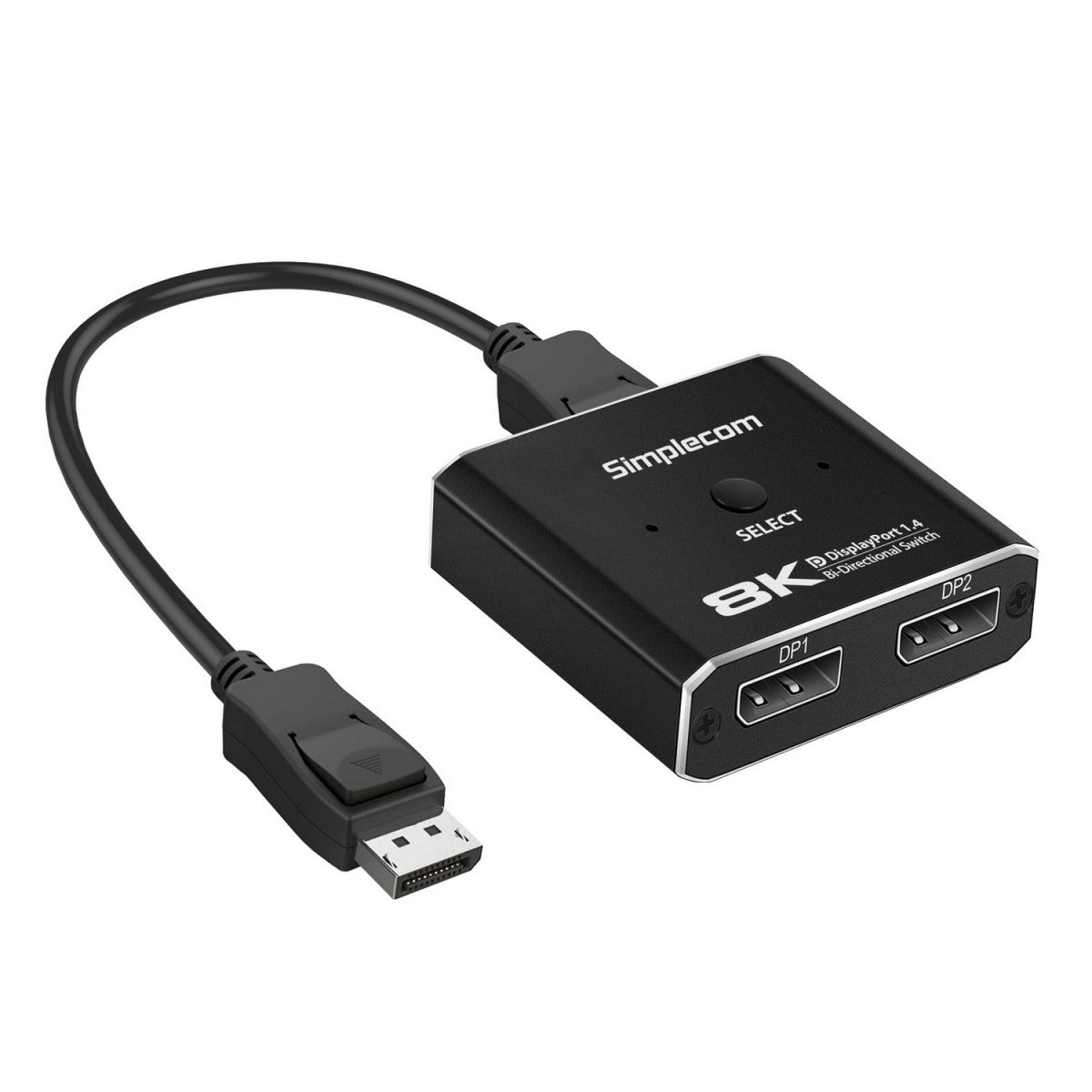

Simplecom CM202 Bi-Directional 2 Way DisplayPort Switch Selector DP 1.4 8K

CM202 is bi-directional 2-way DisplayPort switch than can be used to switch two different DisplayPort sources or DisplayPort displays. Toggle button allows you to quickly select a video source or displays, without having to swap cables.

You can connect two DisplayPort sources, such as laptop and PC, to one DisplayPort on your monitor, and allow two DisplayPort sources to share one DisplayPort on monitor. It also functions in the opposite direction, allows you to connect a DisplayPort source for toggling between two monitors. Note that two screens cannot display simultaneously under 1 input 2 outputs mode.

This switch is DisplayPort 1.4 compliant, and provides high bandwidth up to 32Gbps, which support video output up to 8K@30hz. Portable and compact size, easy to install. The durable aluminium alloy housing can efficiently dissipate heat to ensure durability and safe usage.

FEATURES:

Bi-Directional DisplayPort switch for toggling between 2 DP sources or displays

Quickly switch video sources or displays without having to swap cables

Durable aluminium alloy casing, also efficiently dissipate heat

Portable and compact size, easy to install

DisplayPort 1.4 compliant, support bandwidth up to 32Gbps

Backwards compatible with previous DP version

Support video resolution up to 8K@30hz

Plug and Play, Powered by USB

Specifications

Model: CM202

DisplayPort Version: DP 1.4

Video Resolution Support: up to 8K@30Hz, 4K@120Hz, 2K@144Hz, 1080P@240Hz

HDR Support: Yes

Max Bandwidth: 32Gbps

Max cable distance: 3M (Input + Output)

Max Operation Current: 0.5A

Power Input: USB-C, DC 5V (power adapter is not included)

Operating Temperature: (-15 to +55°C)

Dimension (L x W x H): 59x53x15mm

Weight: 35g

Package Contents

1 x Bi-Directional DisplayPort Switch

1 x DisplayPort cable

1 x USB Power Cable

Important Notes:

For stable connection, the max total cable length
