• APC DIN RAIL - PANEL MOUNT UPS W STANDARD BATTERY 500VA 230V
1 1

APC

APC DIN RAIL - PANEL MOUNT UPS W STANDARD BATTERY 500VA 230V

APC DIN RAIL - PANEL MOUNT UPS W STANDARD BATTERY 500VA 230V

$1,025.00
$1,025.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

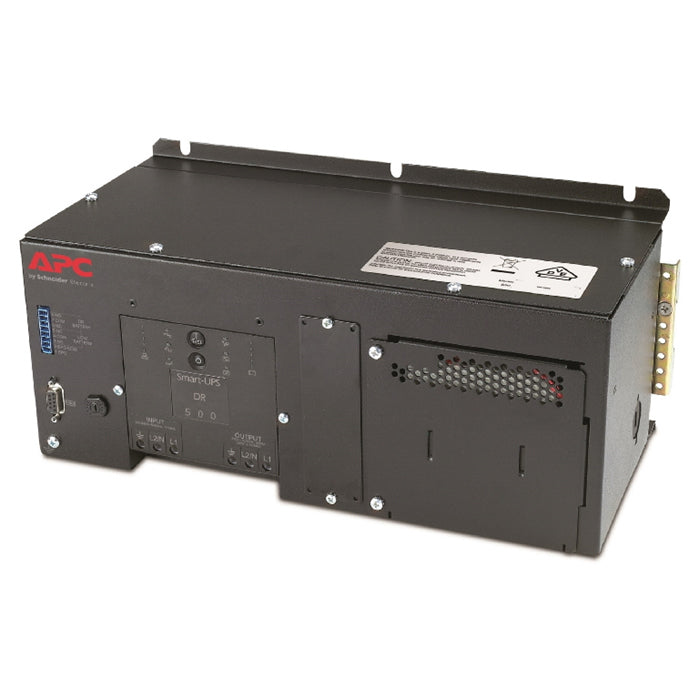

APC DIN RAIL - PANEL MOUNT UPS W STANDARD BATTERY 500VA 230V


  • APC DIN RAIL - PANEL MOUNT UPS W STANDARD BATTERY 500VA 230V
  • Proven Industrial UPS power protection for control applications and harsh environments.
  • Main Input Voltage 230 V
  • Other Input Voltage 220 V, 240 V
  • Main Output Voltage 230 V
  • Other Output Voltage 220 V, 240 V
  • Rated power in W 325 W
  • Rated power in VA 500 VA
  • Output connector type Hard wire 3-wire (H N + E) 1
  • Battery type Lead-acid battery
  • Provided equipment- CD with software, Documentation CD, Installation guide, Smart UPS signalling RS-232 cable
  • Input voltage limits 151...302 V adjustable, 160...285 V
  • Number of input connectors 1 hard wire 3-wire (1P + N + E)
  • Network frequency 50/60 Hz +/- 3 Hz auto-sensing
  • Harmonic distortion Less than 5 %
  • Maximum configurable power in VA 500 VA
  • Maximum configurable power in W 325 W
  • UPS type Line interactive
  • Efficiency 94 % (full load)
  • Output frequency 47...53 Hz for 50 Hz nominal sync to mains, 57...63 Hz for 60 Hz nominal sync to mains
  • Acoustic level 55 dBA
  • Heat dissipation 90 Btu/h
  • Operating altitude 0...10000 ft
  • Ambient air temperature for operation 0…40 °C
  • ambient air temperature for storage -15…45 °C
  • Storage altitude 0.0000000000…15240.0000000000 m
  • IP degree of protection IP20
  • Relative humidity 0…95 %
  • Storage Relative Humidity 0…95 %
