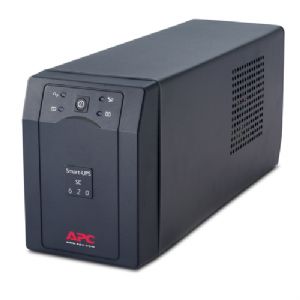

• APC Smart-UPS SC 620VA 230V 390W/DB9/RS232/2Yr Wty
1 1

APC

APC Smart-UPS SC 620VA 230V 390W/DB9/RS232/2Yr Wty

APC Smart-UPS SC 620VA 230V 390W/DB9/RS232/2Yr Wty

$659.00
$659.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

APC Smart-UPS SC 620VA 230V 390W/DB9/RS232/2Yr Wty


  • Output
  • Output power capacity: 390 Watts / 620 VA
  • Max Configurable Power (Watts): 390 Watts / 620 VA
  • Nominal Output Voltage: 230V
  • Output Voltage Distortion: Less than 5% at full load
  • Output Frequency (sync to mains): 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
  • Topology: Line Interactive
  • Waveform type: Stepped approximation to a sinewave
  • Output Connections:
  • 1) IEC 320 C13 (selector_surgetitle)
  • 3) IEC 320 C13 (Battery Backup)
  • Transfer Time: 2ms typical
  • Input
  • Nominal Input Voltage: 230V
  • Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections: IEC-320-C14 inlet
  • Input voltage range for main operations: 195 - 265 V
  • Batteries & Runtime
  • Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
  • Typical recharge time: 5.5 hour(s)
  • Replacement Battery: RBC4
  • RBC Quantity: 1
  • Battery Volt-Amp-Hour Capacity: 132
  • Runtime: View Runtime Graph View Runtime Chart
  • Efficiency: View Efficiency Graph
  • Communications & Management
  • Interface Port(s): DB-9 RS-232
  • Control panel: LED status display with On Line: On Battery: Replace Battery and Overload indicators
  • Audible Alarm: Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm
  • Emergency Power Off (EPO): N/A
  • Surge Protection and Filtering
  • Surge energy rating: 320 Joules
  • Data Line Protection: RJ-45 Modem/Fax/DSL/10-100 Base-T protection
  • Filtering: Full time multi-pole noise filtering: 0.7% IEEE surge let-through: zero clamping response time: meets UL 1449
  • Physical
  • Maximum Height: 168, 16.8 cm
  • Maximum Width: 119, 11.9 cm
  • Maximum Depth: 375, 37.5 cm
  • Net Weight: 12.27 kg
  • Shipping weight: 13.18 kg
  • Shipping Height: 318, 31.8 cm
  • Shipping Width: 262, 26.2 cm
  • Shipping Depth: 508, 50.8 cm
  • Color: Grey
  • Environmental
  • Operating Environment: 0 - 40 °C
  • Operating Relative Humidity: 0 - 95 %
  • Operating Elevation: 0-3000 meters
