• APC Netshelter Metered Rack PDU, 0U, 230V/24A Input, 12x IEC C19 & 30x IEC C13 Outlets
1 1

APC

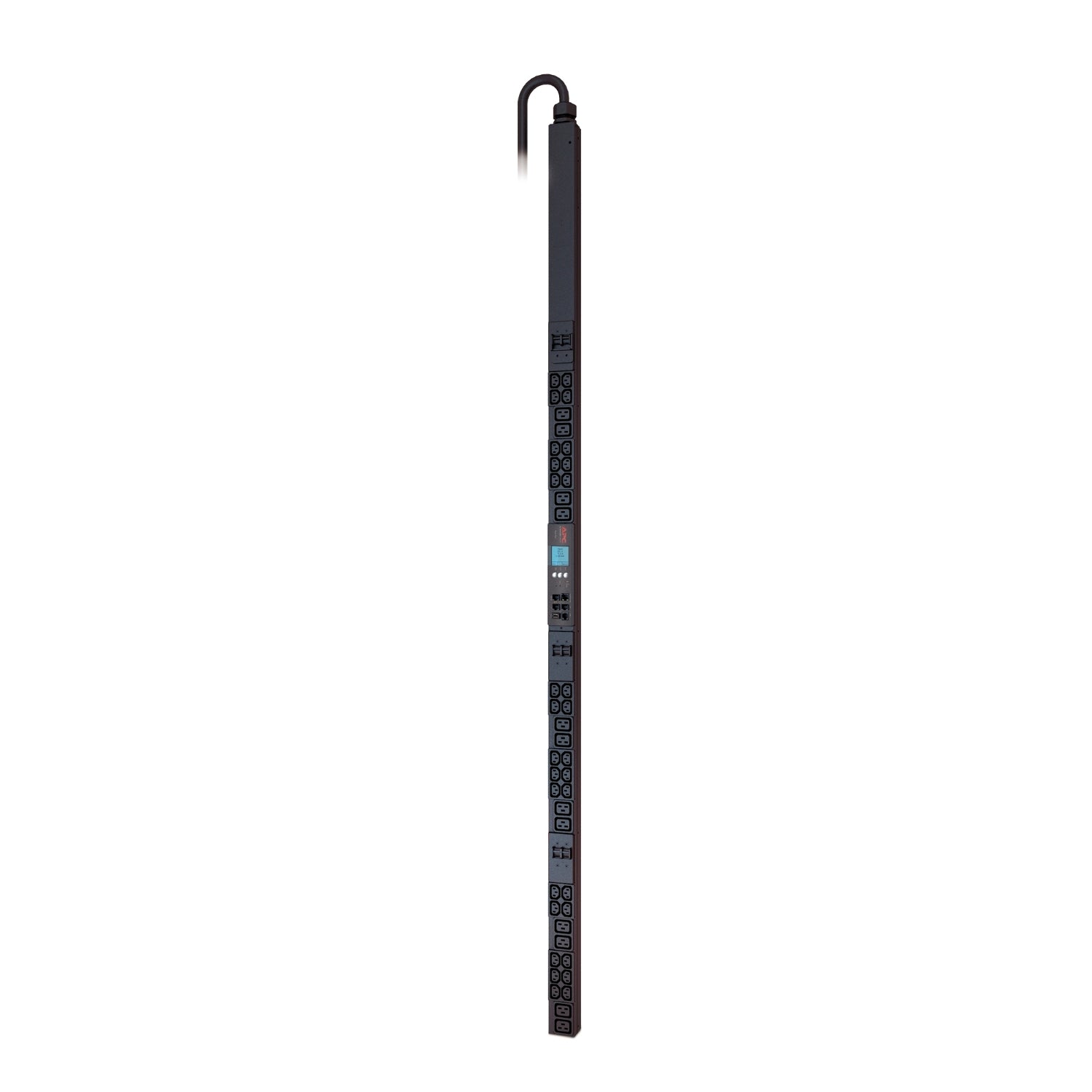

APC Netshelter Metered Rack PDU, 0U, 230V/24A Input, 12x IEC C19 & 30x IEC C13 Outlets

APC Netshelter Metered Rack PDU, 0U, 230V/24A Input, 12x IEC C19 & 30x IEC C13 Outlets

$3,700.00
$3,700.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

APC Netshelter Metered Rack PDU, 0U, 230V/24A Input, 12x IEC C19 & 30x IEC C13 Outlets


  • APC NetShelter Metered Rack PDU, 0U, 3PH, 22kW 230V 32A or 17.3kW 230V 24A, x30 C13 and x12 C19 outlets, IEC 309 3P+N+PE cord
  • APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (30) C13 & (12) C19, and the cable length is 1.83m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
  • Colour Black
  • PDU type Metered
  • Cord length 1.83 m
  • Provided equipment- Installation guide, Rack mounting brackets, Serial configuration cable, Safety guide
  • Input Voltage 400 V 3 phases
  • Output Voltage 230 V
  • Rack units 0U
  • Mounting position Vertical
  • Max line current 32 A
  • Input current limits 32 A
  • Load capacity 22000 VA
  • Network frequency 50/60 Hz
  • Total number of outlets 30 IEC 60320 C13, 12 IEC 60320 C19
  • Product certifications0 VCCI class A, VDE
  • Standards- EN 55022 class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC part 15 class A, ICES-003
  • Ambient air temperature for operation -5…60 °C
  • Relative humidity 5…95 %
  • Operating altitude 0...10000 ft
  • Ambient air temperature for storage -25…65 °C
  • Storage Relative Humidity 5…95 %
  • Storage altitude 0.00…15240.00 m
  • Mounting mode- Rack mounted
  • Compatible PDU- AP8000BLU, AP8000RED, AP8702R-WW, AP8702S-WW, AP8702S-WWX340
  • Compatible Sensors- AP9335T, AP9335TH
  • Compatible Mounting- AR7711
