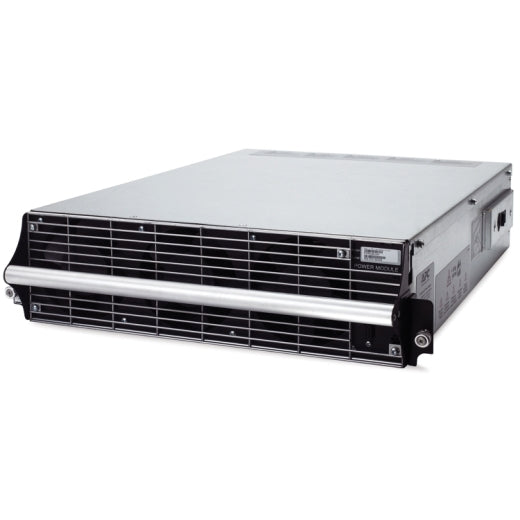

APC Symmetra PX Power Module, 10/16kW, 400V

APC Symmetra PX Power Module, 10/16kW, 400V

$12,700.00
$12,700.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

APC Symmetra PX Power Module, 10/16kW, 400V


  • APC Symmetra PX Power Module, 10/16kW, 400V
  • Main Input Voltage 400 V 3 phases
  • Main Output Voltage 230 V 400 V 3 phases
  • Rated power in W 16000 W
  • Rated power in VA 16000 VA
  • Output connector type Hard wire 5-wire (3P + N + E) 1
  • Provided equipment Installation guide
  • Number of battery filled slots 0
  • Number of battery free slots 0
  • Additional information Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage
  • Network frequency 40...70 Hz
  • Number of input connectors 1 hard wire 5-wire (3P + N + E)
  • Input voltage limits 340...477 V
  • Maximum input current 33 A
  • Max short time withstand current 30 kA
  • Input harmonic distortion Less than 5 % for full load
  • Input Power Factor at Full Load 0.99
  • Maximum configurable power in W 16000 W
  • Harmonic distortion Less than 2 %
  • Output frequency 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains, 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised
  • Crest factor Unlimited
  • UPS type Double conversion online
  • Output voltage tolerance +/- 1% static and +/- 5% at 100% load step
  • Output harmonic distortion < 2% for 0 to 100% linear load and < 6% for full non-linear load
  • Output overload operation 10 minutes at 125% and 60 seconds at 150%
  • Ambient air temperature for operation 0…40 °C
  • Relative humidity 0…95 %
  • Operating altitude 0...3333 ft
  • Ambient air temperature for storage -15…40 °C
  • Storage Relative Humidity 0…95 %
  • Storage altitude 0.00…4572.00 m
  • Acoustic level 63 dBA
  • Heat dissipation 2573 Btu/h
  • NEMA degree of protection NEMA 1
  • Compatible Spare parts- WSYPM10K16H
