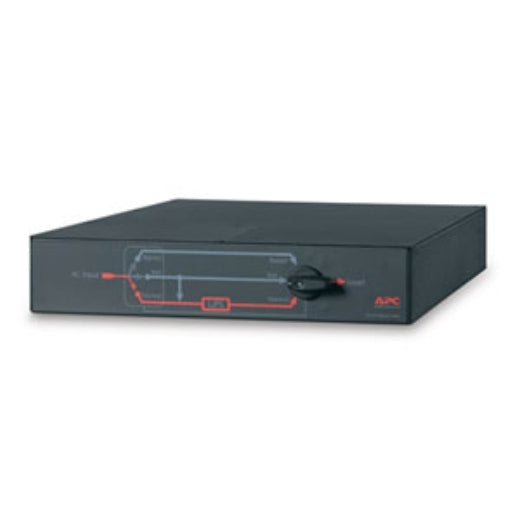

• APC Service Bypass Panel- 230V; 50A; MBB; IEC320 C20/HW input; IEC-320 Output- (2) C19 (8) C13
1 1

APC

APC Service Bypass Panel- 230V; 50A; MBB; IEC320 C20/HW input; IEC-320 Output- (2) C19 (8) C13

APC Service Bypass Panel- 230V; 50A; MBB; IEC320 C20/HW input; IEC-320 Output- (2) C19 (8) C13

$2,175.00
$2,175.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

APC Service Bypass Panel- 230V; 50A; MBB; IEC320 C20/HW input; IEC-320 Output- (2) C19 (8) C13


  • APC Service Bypass Panel- 230V, 32A, MBB, IEC320 C20/HW input, IEC-320 Output- (2) C19 (8) C13
  • Main Input Voltage 230 V
  • Main Output Voltage 230 V
  • Input Connection Type IEC 60320 C20
  • Number of rack unit 2U
  • Number of cables 1
  • Provided equipment Hardwire panel
  • Installation guide Rack mounting brackets, User manual, Wall mounting brackets
  • Network frequency 50/60 Hz
  • Number of input connectors 1 hard wire 3-wire (1P + N + E)
  • Max line current 32 A
  • Input current limits 32 A
  • Load capacity 7680 VA
  • Power factor 0…1
  • Max current draw 32 A
  • Number of power socket outlets 8 IEC 60320 C13, 2 IEC 60320 C19
  • Protection type Circuit breaker
  • Efficiency 99 %
  • Product certifications- CSA, GOST
  • Standards- EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
  • Ambient air temperature for operation -20…50 °C
  • Relative humidity 0…95 %
  • Operating altitude 0...15000 ft
  • Ambient air temperature for storage -25…65 °C
  • Storage Relative Humidity 0…95 %
  • Storage altitude 0.00…15240.00 m
  • Mounting mode- Rack mounted
