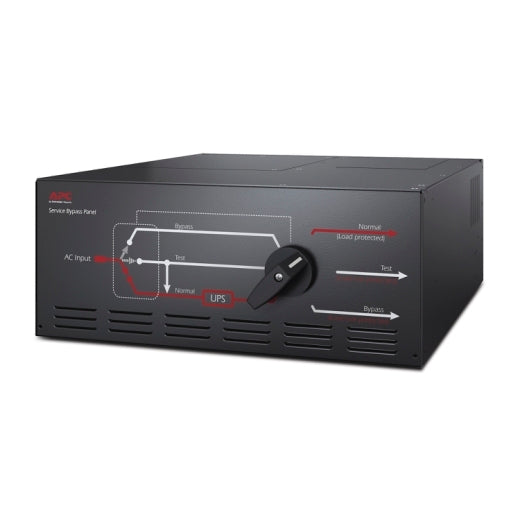

• APC Service Bypass Panel 230V MBB 125A HW input IEC-320 output (8) C19
1 1

APC

APC Service Bypass Panel 230V MBB 125A HW input IEC-320 output (8) C19

APC Service Bypass Panel 230V MBB 125A HW input IEC-320 output (8) C19

$4,700.00
$4,700.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

APC Service Bypass Panel 230V MBB 125A HW input IEC-320 output (8) C19


  • APC Service Bypass Panel 230V MBB 125A HW input IEC-320 output (8) C19
  • Main Input Voltage 220 V, 230 V, 240 V, 380 V 3 phases, 400 V 3 phases, 415 V 3 phases
  • Main Output Voltage 230 V
  • Other Output Voltage 220 V, 240 V
  • Number of rack unit 4U
  • Number of cables 1
  • Number of power socket outlets 8 IEC 60320 C19
  • Provided equipment- Installation guide, Rack mounting brackets, User manual
  • Network frequency 50/60 Hz
  • Number of input connectors 1 hard wire 3-wire (1P + N + E), 1 hard wire 5 wire (3P + N + E)
  • Max line current 125 A
  • Input current limits 125 A
  • Load capacity 20000 VA
  • Power factor 0…1
  • Max current draw 125 A
  • Number of power socket outlets 8 IEC 60320 C19
  • Protection type Circuit breaker
  • Efficiency 99 %
  • Ambient air temperature for operation -20…50 °C
  • Relative humidity 0…95 %
  • Operating altitude 0...15000 ft
  • Ambient air temperature for storage -40…65 °C
  • Storage Relative Humidity 0…95 %
  • Storage altitude 0.00…15240.00 m
  • Mounting mode- Rack mounted
