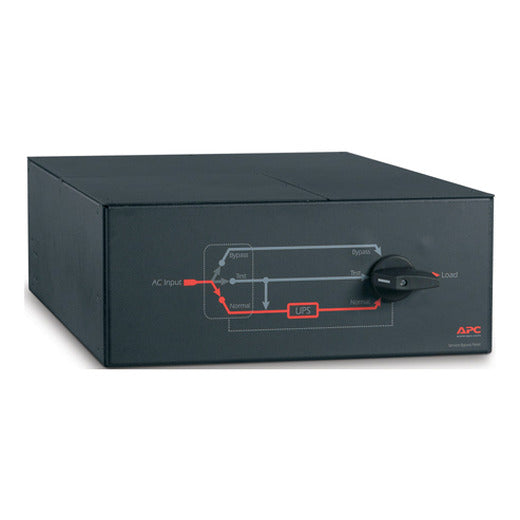

• APC Service Bypass Panel 200/208/240 V, 100 A, MBB, Hardwire input/output
1 1

APC

APC Service Bypass Panel 200/208/240 V, 100 A, MBB, Hardwire input/output

APC Service Bypass Panel 200/208/240 V, 100 A, MBB, Hardwire input/output

$3,725.00
$3,725.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

APC Service Bypass Panel 200/208/240 V, 100 A, MBB, Hardwire input/output


  • APC Service Bypass Panel 200/208/240 V, 100 A, MBB, Hardwire input/output
  • Main Input Voltage 200 V 208 V 230 V 480 V 3 phases
  • Main Output Voltage 120 V 200 V 208 V 230 V
  • Other Output Voltage 220 V 240 V
  • Output connector type Hard wire 3-wire (H N + E) 1, Hard wire 3-wire (2P + E) 1, Hard wire 4-wire (2P + N + E) 1
  • Number of rack unit 4U
  • Number of cables 1
  • Provided equipment Installation guide
  • Rack mounting brackets User manual
  • Network frequency 50/60 Hz
  • Number of input connectors 1 hard wire 3-wire (H N + E), 1 hard wire 3-wire (2P + E), 1 hard wire 4-wire (2P + N + E), 1 hard wire 5-wire (3P + N + E)
  • Permissible voltage 200…240 V
  • Max line current 100 A
  • Input current limits 100 A
  • Load capacity 20000 VA
  • Power factor 0…1
  • Max current draw 100 A
  • Protection type Circuit breaker
  • Efficiency 99 %
  • Product certifications CSA GOST
  • Standards EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
  • Ambient air temperature for operation -20…50 °C
  • Relative humidity 0…95 %
  • Operating altitude 0...15000 ft
  • Ambient air temperature for storage -40…65 °C
  • Storage Relative Humidity 0…95 %
  • Storage altitude 0.00…15240.00 m
  • Mounting mode- Rack mounted
