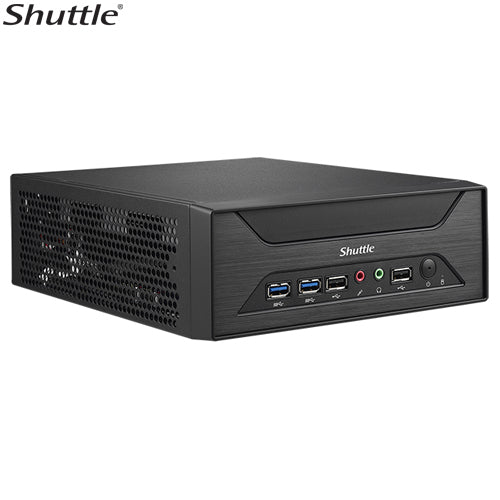

• Shuttle XH270 Slim Mini PC 3L Barebone - Support Intel I211KBL&SKY CPU, 4x 2.5' HDD/SSD bay (RAID), 2xLAN, HDMI, DP, VGA, RS232, 2xDDR4, M.2 2280,120W
1 1

Shuttle

Shuttle XH270 Slim Mini PC 3L Barebone - Support Intel I211KBL&SKY CPU, 4x 2.5' HDD/SSD bay (RAID), 2xLAN, HDMI, DP, VGA, RS232, 2xDDR4, M.2 2280,120W

Shuttle XH270 Slim Mini PC 3L Barebone - Support Intel I211KBL&SKY CPU, 4x 2.5' HDD/SSD bay (RAID), 2xLAN, HDMI, DP, VGA, RS232, 2xDDR4, M.2 2280,120W

$518.00
$518.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

Shuttle XH270 Slim Mini PC 3L Barebone - Support Intel I211KBL&SKY CPU, 4x 2.5' HDD/SSD bay (RAID), 2xLAN, HDMI, DP, VGA, RS232, 2xDDR4, M.2 2280,120W


  • FORM FACTOR Mini-ITX MB
  • 3L chassis
  • PROCESSOR Support Skylake-S/Kabylake-S 65W CPU
  • CHIPSET Intel H270 Express Chipset
  • MEMORY (2)DDR4 SO-DIMM 2133/2400MHz support, dual channel up to 32GB (16GB*2)
  • VIDEO OUTPUT (1)HDMI+(1)DisplayPort+(1)VGA support triple independent display 4K playback
  • Integrated in CPU
  • AUDIO Realtek ALC662 5.1 channel High Definition audio
  • ETHERNET Intel I211*2 10Mb/100Mb/1Gb/s operation
  • Support Wake-on-LAN function
  • Support Teaming feature
  • STORAGE INTERFACE SATA 6.0Gb/s interface
  • ONBOARD CONNECTORS (1) 4pin fan connector
  • 4) SATA connector w/power
  • 2) 2x5 pin USB2.0 header
  • 1) Front audio header
  • 1) Front USB2.0 header
  • 1) Front USB3.0 header
  • 1) Auto power on
  • 1) RS232 header
  • FRONT PANEL (1) Power Button
  • 1) Power Led
  • 1) HDD Led
  • 2) USB2.0 port
  • 2) USB3.0 port
  • 1)MIC-In
  • 1)Earphone-Out
  • BACK PANEL (2) RJ45 Gigabit LAN port
  • 1) DisplayPort
  • 1) HDMI
  • 1) VGA
  • 2) USB2.0 port
  • 2) USB3.0 port
  • 1) RS232
  • 1) Line-in port
  • 1) Line out port
  • 1) MIC-in port
  • 1) Clear CMOS button
  • 1) DC in
  • 1)Kensington lock
  • 2)Wireless Antenna fixture(optional)
  • DRIVE BAYS Support 4* 2.5' HDD/SSD
  • DIMENSIONS 240(L) x 200(W) x 72(H) mm
  • Dimension drawing
  • POWER 120W Power Adapter
  • Input:100- 240V AC
  • Output: 19V 6.32A DC
  • ACCESSORIES XPC Multilanguage Quick User Guide
  • XPC DVD Driver
  • Thermal Grease
  • 120W adapter
  • 2.5 HDD rack*4
  • Power cord
  • HDD Screw pack
  • EXPANSION SLOT (1) M.2 2280 Type M (PCIe x4,SATA 6GB/s)
  • 1) M.2 2230 Type A,E (PCIe x1,USB2.0)
  • OS SUPPORT Windows 7(SKL-S only)
  • Windows 10
  • Linux
