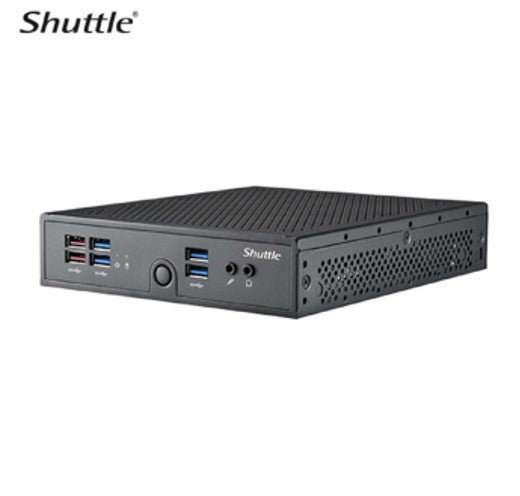

• Shuttle XPC SLIM Barebone - Core i5-1335U (15W), 2x DDR5, 2x M.2 2280, HDMI, DP, VGA, COM, 2 x LAN, (5G LTE optional), 90W, fanless,
1 1

Shuttle

Shuttle XPC SLIM Barebone - Core i5-1335U (15W), 2x DDR5, 2x M.2 2280, HDMI, DP, VGA, COM, 2 x LAN, (5G LTE optional), 90W, fanless,

Shuttle XPC SLIM Barebone - Core i5-1335U (15W), 2x DDR5, 2x M.2 2280, HDMI, DP, VGA, COM, 2 x LAN, (5G LTE optional), 90W, fanless,

$1,629.00
$1,629.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

Shuttle XPC SLIM Barebone - Core i5-1335U (15W), 2x DDR5, 2x M.2 2280, HDMI, DP, VGA, COM, 2 x LAN, (5G LTE optional), 90W, fanless,


  • Shuttle XPC SLIM Barebone - Core i5-1335U (15W), 2x DDR5, 2x M.2 2280, HDMI, DP, VGA, COM, 2 x LAN, (5G LTE optional), 90W, fanless,
  • Efficient 1-Liter Fanless PC | Harness 13th Gen Raptor Lake-U Power
  • Shuttle's latest fanless model, the DS50U, supports the cutting-edge 13th Gen Intel® Raptor Lake-U processor, and enables dual-channel up to DDR5-5200 memory. With Iris® Xe or UHD integrated graphics based on processor SKUs, the DS50U can enhance multitask performance and handle a variety of digital applications effortlessly. Despite its compact 1-liter volume, this device features a rich array of I/O connectors, including eight USB ports, SATA 3.0, dual M.2 slots, and one M.2 E slot for expandability, enabling users to install various peripherals. Additionally, it supports triple displays via HDMI 2.0b, DisplayPort, and VGA. The DS50U is well-suited for a wide range of business applications, including IoT gateways, smart digital signage, automation control, edge computing, interactive kiosks, and more.
  • FORM FACTOR Shuttle 1.3L Chassis
  • PROCESSOR Intel Raptor Lake -U series
  • MEMORY 2 x 262 pin DDR5 SODIMM slots, 32GB per DIMM (Max 64GB)
  • Dual Channel DDR5 up to 5200Mhz
  • VIDEO OUTPUT (1)HDMI 2.0b + (1)DisplayPort 1.4 + (1) VGA video outputs
  • Support triple independent display
  • AUDIO Realtek ALC888S
  • 2 channel High Definition Audio
  • ETHERNET (1)Intel GbE Lan / (1)Intel 2.5 GbE Lan
  • 10Mb/s,100Mb/s,1Gb/s operation
  • Support Wake-On-LAN function
  • Support Teaming function
  • STORAGE INTERFACE SATA for HDD/SSD
  • ONBOARD CONNECTORS (1) 2.5 inch SATA connector
  • 1) USB2.0 header
  • 1) Auto Power on Jumper
  • 1) RS232 voltage switch
  • 1) External 4 pin header
  • FRONT PANEL (1) Power on button
  • 1) Power LED
  • 1) HDD LED
  • 2) USB 3.2 Gen2
  • 4) USB 3.2 Gen1
  • 1) Mic in
  • 1) Headphone out
  • BACK PANEL (2) RJ45 LAN
  • 1) HDMI
  • 1) DisplayPort
  • 1) VGA
  • 1) RS232/RS422/RS485
  • 2) USB 2.0
  • 1) External 4 pin header (Clear CMOS/Power Switch/5V)
  • 1) DC-in
  • 1) Kensington lock
  • 2) Antenna fixture
  • DRIVE BAYS (1) 2.5' HDD / SSD bay
  • POWER 90W 19V Adapter bundled
  • Input:100- 240V AC
  • ACCESSORIES XPC Multilanguage Quick User Guide
  • XPC DVD Driver
  • Food stand
  • VESA mount
  • VESA Screw pack
  • Power cord
  • Thermal Grease
  • HDD Screw pack
  • 90W adapter
  • EXPANSION SLOT (2) M.2 2280 Type M key socket
  • 1) M.2 2230 Type E Key socket
  • OS SUPPORT Windows 11, Linux
  • GRAPHICS Integrated Intel® Iris® Xe
  • Feature depends on processor)
  • CERTIFICATION Safety certification : CB , BSMI , cTUVus
  • EMI certification : FCC , CE , BSMI , RCM , VCCI , UKCA
  • OPERATING TEMPERATURE 0℃~40℃
