Shuttle DH770 Slim Mini PC, Intel ® 14th/13th/12th Gen LGA1700 socket, 1L, H770, 2x DDR5, 2x 2.5G LAN, 2x COM, 4x USB 3.2 Gen 1, 4x USB 3.2 Gen 2, 2x

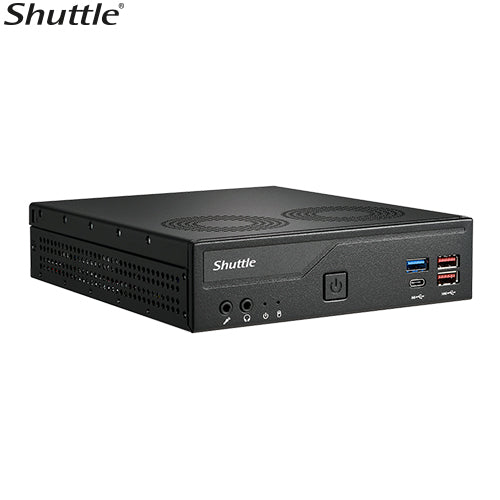

  • The Shuttle XPC Slim DH770 is a 1.3-liter Barebone Mini-PC featuring the H770 chipset, designed to support Intel® 12th, 13th, and 14th generation LGA1700 processors with a maximum TDP of up to 65W.
  • Thanks to Intel® UHD graphics and dual DDR5-5600 support, the DH770 delivers enhanced graphics performance, faster memory access, and robust multitasking capabilities. It excels in AIoT Edge tasks, crystal-clear video streaming, and various demanding applications. Its compact design houses a wide array of I/O interfaces, including HDMI 2.0, DisplayPort 1.4, USB 3.2, COM (RS232/422/485), SATA 3.0, M.2 SSD, dual 2.5G LAN, and WLAN expansion. Whether utilized for a 4-display TV wall, interactive digital signage, NVR stations, or automation control, the DH770 offers exceptional versatility and reliability across various industries.
  • FORM FACTOR 1.3L chassis
  • PROCESSOR Support Intel® 12th/13th/14th Generation Core™ i3/i5/i7/i9, Pentium®, Celeron® LGA1700 CPU max. TDP 65W
  • CHIPSET Intel H770 Express chipset
  • MEMORY 2 x DDR5 SODIMM slots,32GB per DIMM (Max 64GB)
  • DDR5 5600 MHz
  • VIDEO OUTPUT HDMI 2.0 x 2+ DisplayPort x 2, Quad video outputs
  • 4K playback (Dual channel memory recommended)
  • Integrated in CPU
  • AUDIO Realtek ALC 888S High Definition Audio
  • ETHERNET (2)Intel 2.5GbE LAN
  • Supports 10/100/1000 Mb/Sec.
  • Support wake ON LAN (WOL) feature
  • STORAGE INTERFACE SATA 6.0Gb/s interface
  • NVMe interface
  • Support SATA RAID 0,1
  • ONBOARD CONNECTORS (1) 4pin fan connector
  • 1) VGA(For PVG01 use)
  • 1) 1x4 pin USB header(For WWN03 use)
  • 1) SATA connector w/power
  • 1) Front audio header
  • 1) Auto power on header
  • 1) RS232 voltage switch
  • FRONT PANEL (2) USB 3.2 Gen1 ports
  • Include Type C x1)
  • 2) USB 3.2 Gen2 ports
  • 1) Microphone-In
  • 1) Line-Out
  • 1) Power-On button
  • 1) Power LED
  • 1) HDD LED
  • BACK PANEL (2) RJ45 LAN port w/LED
  • 2) HDMI port
  • 2) Display port
  • 2) USB 3.2 Gen1 ports
  • 2) USB 3.2 Gen2 ports
  • 1) RS232
  • 1) RS232/RS422/RS485
  • 1) External 4pin header
  • 1) DC-in
  • 2) Wireless Antenna fixture
  • 1) Kensington lock
  • DRIVE BAYS (1) 2.5' HDD / SSD bay
  • DIMENSIONS 190(L) x 165(W) x 43(H) mm
  • Dimension drawing
  • POWER 120W Power Adapter
  • Input:100- 240V AC
  • 19V 6.32A
  • ACCESSORIES XPC Multilanguage Quick User Guide
  • XPC DVD Driver
  • VESA mount
  • VESA Screw pack
  • Power cord
  • Thermal Grease
  • HDD Screw pack
  • 120W adapter
  • EXPANSION SLOT (1) M.2 2280 Type M key socket
  • 1) M.2 2230 Type E key socket
  • OS SUPPORT Windows 11 64 bit O.S
  • Linux
  • REMARK RS232 ports support 0/5/12V output. Voltage setting please refer to Quick Guide.
  • OPERATING TEMPERATURE 0℃~50℃
