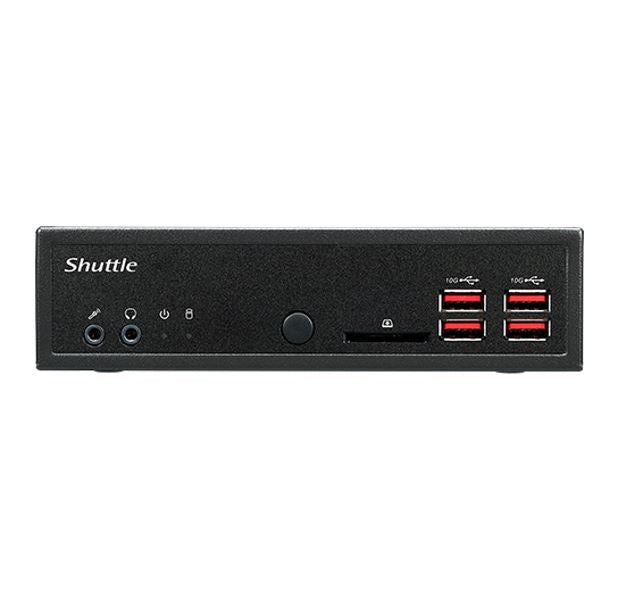

• Shuttle DH32U XPC Slim, Intel Tiger lake-U Pentium 7505, 2xDDR4, 2.5' HDD/SSD Bay, 2x Intel i211, 1x RS232, HDMI, 90W, VESA Mount
1 1

Shuttle

Shuttle DH32U XPC Slim, Intel Tiger lake-U Pentium 7505, 2xDDR4, 2.5' HDD/SSD Bay, 2x Intel i211, 1x RS232, HDMI, 90W, VESA Mount

Shuttle DH32U XPC Slim, Intel Tiger lake-U Pentium 7505, 2xDDR4, 2.5' HDD/SSD Bay, 2x Intel i211, 1x RS232, HDMI, 90W, VESA Mount

$888.00
$888.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

Shuttle DH32U XPC Slim, Intel Tiger lake-U Pentium 7505, 2xDDR4, 2.5' HDD/SSD Bay, 2x Intel i211, 1x RS232, HDMI, 90W, VESA Mount


  • Shuttle DH32U XPC Slim, Pentium7505, Intel® DG1 Graphics, 4 x HDMI 2.0b, 2 COM, 2 LAN
  • Form Factor
  • Shuttle 1.3L Chassis
  • Processor
  • Intel Tiger lake-U Pentium 7505 15W
  • Memory
  • 2 x 260 pin DDR4 SODIMM slots,32GB per DIMM (Max 64GB) Dual Channel DDR4 3200 Mhz
  • Video Output
  • HDMI 2.0b x 4 Quad Independence Video Output
  • 4K/2K playback (Dual Channel Memory Recommended)
  • Support EDID Emulation Function(DH32UE series only)
  • Audio
  • Realtek ALC662/897/888S
  • 2 Channel High Definition Audio
  • Ethernet
  • Intel i211x2 100Mb/s and 1Gb/s; Operation Supports Wake-On-LAN Function
  • Storage Interface
  • SATA 6.0Gb/s Interface
  • Onboard Connectors
  • 1x SATA power connector
  • 2x 4 pin fan connectors
  • 1x Auto power on header
  • 1x VGA
  • 1x RS232
  • 1x RS232/422/485
  • 1x External 4 pin header (Power/Clear/CMOS/5V/GND
  • Front Panel
  • 4x USB 3.2 Gen2 ports
  • 1x Microphone-In
  • 1x Earphone-Out
  • 1x Power-On button
  • 1x Power LED
  • 1x HDD LED
  • 1x SD Card reader
  • Back Panel
  • 2x RJ45 Gigabit LAN port
  • 4x HDMI port
  • 4x USB 3.2 Gen1 ports
  • 1x RS232
  • 1x RS232/422/485
  • 1x External power on/Clear CMOS header
  • 1x Kensington lock
  • 2x Wireless Antenna fixture
  • 1x DC in
  • Drive Bays
  • 1x 2.5' HDD / SSD bay
  • Dimensions
  • 190(L) x 165(W) x 43(H) mm
  • Power
  • 90W Power Adapter
  • Input:100- 240V AC
  • Output: 19V 4.7A DC
  • Accessories
  • XPC DVD Driver
  • VESA mount
  • Expansiuon Slot
  • 1x M.2 2280 Type M Key Socket
  • 1x M.2 2230 Type E Key Socket
  • OS Support
  • Windows 10 64 bit O.S
  • Linux
  • Graphics
  • Intel Xe DG1 GPU
