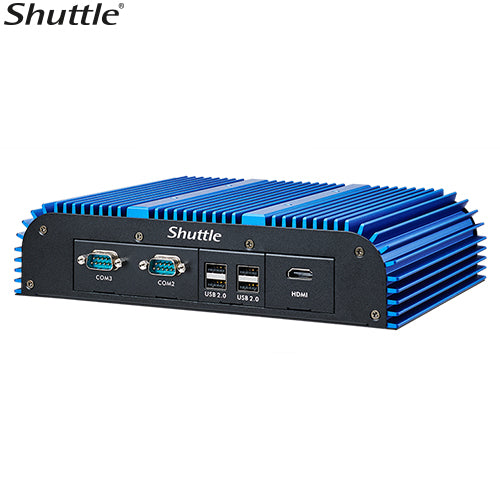

• Shuttle BPCWL02 Embedded Box PC Barebone - Whiskey Lake Intel i3-8145UE, Fan-Less Robust Aluminum Chassis, 2x LAN, 3x RS-232 (RS422/485), 90W adapter
1 1

Shuttle

Shuttle BPCWL02 Embedded Box PC Barebone - Whiskey Lake Intel i3-8145UE, Fan-Less Robust Aluminum Chassis, 2x LAN, 3x RS-232 (RS422/485), 90W adapter

Shuttle BPCWL02 Embedded Box PC Barebone - Whiskey Lake Intel i3-8145UE, Fan-Less Robust Aluminum Chassis, 2x LAN, 3x RS-232 (RS422/485), 90W adapter

$1,469.00
$1,469.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

Shuttle BPCWL02 Embedded Box PC Barebone - Whiskey Lake Intel i3-8145UE, Fan-Less Robust Aluminum Chassis, 2x LAN, 3x RS-232 (RS422/485), 90W adapter


  • Shuttle BPCWL02 Embedded Box PC Barebone - Whiskey Lake Intel i3-8145UE, Fan-Less Robust Aluminum Chassis, 2x LAN, 3x RS-232 (RS422/485), 90W adapter
  • Processor
  • 8th Gen. Intel® Whiskey Lake-U Processors
  • Memory
  • 2 x 260 pin SO-DIMM up to 64GB Dual Channel DDR4 2666MHz
  • BIOS
  • AMI UEFI 64 Mbit
  • Graphics - Display Interface
  • 2 x HDMI 1.4b: 4096 x 2160@30Hz - Supports three displays
  • Internal Storage
  • 1 x M.2 2280 M key (PCIe NVMe / SATA)
  • Audio Codec
  • Realtek ALC662 2-channel
  • Ethernet
  • 2 x Intel® Gigabit LAN
  • WLAN
  • Intel WiFI Module (802.11 a/b/g/n/ac) & BT 5.0 (Option)
  • Realtek RTL8821CE 802.11a/b/g/n/ac + Bluetooth 4.2 WLAN card M.2 2230 E key (Option)
  • External antenna (Dipole) x2 (Option)
  • LAN
  • 2 x RJ-45 (10/100/1000Mbps)
  • Serial Ports
  • 1 x RS-232 (DB-9)
  • 2 x RS-232/422/485 (DB-9) (RS232 with power supply :ring in/ 5V (standard) &12V (with specific optional board)
  • USB
  • 4 x USB3.2 Gen 1 (Type A)
  • 4 x USB2.0
  • Audio
  • 1 x Line-out
  • 1 x Mic-in
  • Power Type
  • 19V (without wide range board)
  • With wide range board, MB support 9-36V DC-in
  • Adapter
  • 19V/4.74A 90W external adapter
  • OS Support
  • Windows 10/11 Embedded 64bit
  • Linux 64bit
  • Mounting VESA Mount 75 x 75 mm
  • Ear Mount 256 x 100 mm
  • Din Rail
  • Dimension (WxHxD)
  • 245 x 57 x 169mm
  • Weight 2.85 kg
