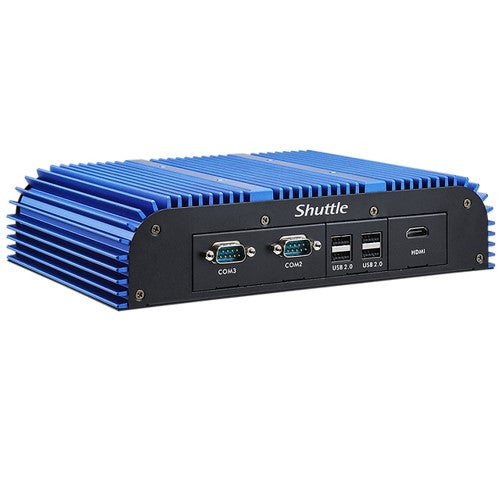

• Shuttle BPCAL03I3 Box PC, Core i3-1215UE, 2x DDR5, 2x LAN, 3x COM, 1x M.2, 8x USB, 2x HDMI
1 1

Shuttle

Shuttle BPCAL03I3 Box PC, Core i3-1215UE, 2x DDR5, 2x LAN, 3x COM, 1x M.2, 8x USB, 2x HDMI

Shuttle BPCAL03I3 Box PC, Core i3-1215UE, 2x DDR5, 2x LAN, 3x COM, 1x M.2, 8x USB, 2x HDMI

$1,969.00
$1,969.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

Shuttle BPCAL03I3 Box PC, Core i3-1215UE, 2x DDR5, 2x LAN, 3x COM, 1x M.2, 8x USB, 2x HDMI


  • Shuttle BPCAL03I3 Box PC, Core i3-1215UE, 2x DDR5, 2x LAN, 3x COM, 1x M.2, 8x USB, 2x HDMI
  • Aluminum chassis, fanless, -20~60°C, 150W, Supports Intel® vPro™ and AMT (Max 4 display outputs)
  • Unparalleled Real-Time Edge Computing Prowess
  • Shuttle’s BPCAL03 are intelligent embedded PCs, with Intel® 12th Gen Alder Lake processors for optimized intelligent workloads.
  • Powered by i5 processors and Intel® Iris Xe graphics, they accelerate a wide range of tasks, including edge AI inference, data analysis, process control, image recognition, and more.
  • Their highly flexible I/O modular designs, along with various mounting options, also meet a wide range of customized requirements in industrial IoT environments.
  • 12th Gen Intel® Alder Lake Core™ Processor Applications for optimized intelligent workloads
  • Supports dual-channel DDR5-4800 MHz memory, Max. 64GB (2 x 32GB).
  • Up to Quad Displays Capability
  • Stunning 4K/Ultra HD visual (4K x 2K) provided via 1 x HDMI 2.0b (4096 x 2160@60Hz).
  • Up to three customizable expansion DisplayPorts, including a maximum of two HDMI 2.0b outputs.
  • High-Speed Data Transmission
  • USB Efficiency: 4 x USB 3.2 Gen 2
  • Over 20 times faster than legacy USB 2.0
  • Network
  • Ethernet 2 x Intel® 2.5G LAN
  • WLAN
  • Intel WiFI Module (802.11 a/b/g/n/ac) & BT 5.0 (Option)
  • Realtek RTL8821CE 802.11a/b/g/n/ac + Bluetooth 4.2 WLAN card M.2 2230 E key (Option)
  • External antenna (Dipole) x2 (Option)
  • I/O Interface
  • LAN
  • 2 x RJ-45 (10/100/1000Mbps/2.5GbE)
  • Supports Wake On LAN
  • Serial Ports
  • 1 x RS-232 (DB-9)
  • 2 x RS-232/422/485 (DB-9) (RS232 with power supply :ring in/ 5V (standard) &12V (with specific optional board)
  • USB
  • 4 x USB3.2 Gen 2 (Type A)
  • 4 x USB2.0
  • Audio
  • 1 x Line-out
  • 1 x Mic-in
  • Operating Temperature
  • BPCAL03: -20 ~ 60°C
  • Storage Temperature
  • 20°C ~ 80°C
  • Relative Humidity
  • 20% - 80% RH (non-condensing)
