• Shuttle BPCAL02 Box PC, Intel i7-1255U, 2 x Intel® 2.5G LAN, 90W External Adapter, HDMI, VESA Mount
1 1

Shuttle

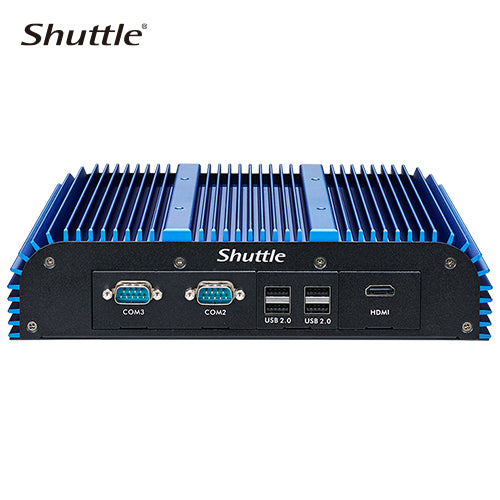

Shuttle BPCAL02 Box PC, Intel i7-1255U, 2 x Intel® 2.5G LAN, 90W External Adapter, HDMI, VESA Mount

Shuttle BPCAL02 Box PC, Intel i7-1255U, 2 x Intel® 2.5G LAN, 90W External Adapter, HDMI, VESA Mount

$2,169.00
$2,169.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

Shuttle BPCAL02 Box PC, Intel i7-1255U, 2 x Intel® 2.5G LAN, 90W External Adapter, HDMI, VESA Mount


  • Shuttle BPCEL02 Box PC, Intel i7-1255U, 2 x Intel® 2.5G LAN, 90W External Adapter, HDMI, VESA Mount
  • Shuttle’s BPCAL02 and BPCAL03 are intelligent embedded PCs, with Intel® 12th Gen Alder Lake processors for optimized intelligent workloads. These computers support dual-channel DDR5-4800 memory, enhance caching, and ensure data security. Powered by i5/i7 processors and Intel® Iris Xe graphics, they accelerate a wide range of tasks, including edge AI inference, data analysis, process control, image recognition, and more. Their highly flexible I/O modular designs, along with various mounting options, also meet a wide range of customized requirements in industrial IoT environments. Additionally, the BPCAL03 is capable of operating in a wide temperature range (-20°C to +60°C).
  • Processor 12th Gen. Intel® Alder Lake Core i3-1215UE (default)
  • Optional: i5-1235U, i5-1245UE, i7-1255U, i7-1265UE, Celeron® 7305E
  • Memory 2 x 262 pin SO-DIMM up to 64GB
  • Dual Channel DDR5 4800 MHz
  • BIOS AMI UEFI 64 Mbit
  • Graphics
  • Display Interface 2 x HDMI 2.0b: 4096 x 2160@60Hz
  • Display output max: 4 independent or clone
  • Storage
  • Audio
  • Audio Codec Realtek ALC888s-VD 2-channel
  • Network
  • Ethernet 2 x Intel® 2.5G LAN
  • WLAN Intel WiFI Module (802.11 a/b/g/n/ac) & BT 5.0 (Option)
  • Realtek RTL8821CE 802.11a/b/g/n/ac + Bluetooth 4.2 WLAN card M.2 2230 E key (Option)
  • External antenna (Dipole) x2 (Option)
  • I/O Interface
  • LAN 2 x RJ-45 (10/100/1000Mbps/2.5GbE)
  • Supports Wake On LAN
  • Serial Ports 1 x RS-232 (DB-9)
  • 2 x RS-232/422/485 (DB-9) (RS232 with power supply :ring in/ 5V (standard) &12V (with specific optional board)
  • USB 4 x USB3.2 Gen 2 (Type A)
  • 4 x USB2.0
  • Audio 1 x Line-out
  • 1 x Mic-in
  • Power
  • Type 1. 19V (without wide range board)
  • 2. With wide range board, MB support 9-36V DC-in
  • Adapter BPCAL02: 19V/4.74A 90W external adapter
  • BPCAL03: 19V/7.89A 150W external adapter
  • Watchdog Timer
  • OS Support Windows 10 / 11 IoT 64bit
  • Linux 64bit
  • Mechanism
  • Mounting VESA Mount 75 x 75 mm
  • Ear Mount 256 x 100 mm
  • Din Rail Mount 35 mm
  • Dimension (WxHxD) 245 x 57 x 169mm
  • Weight 2.85 kg
  • Operating Temperature BPCAL02: 0 ~ 40°C
  • BPCAL03: -20 ~ 60°C
  • Storage Temperature -20°C ~ 80°C
  • Relative Humidity 20% - 80% RH (non-condensing)
  • EMC CE, FCC, VCCI, BSMI, RCM
  • Safety cTUVus, CB, CEC, BSMI
