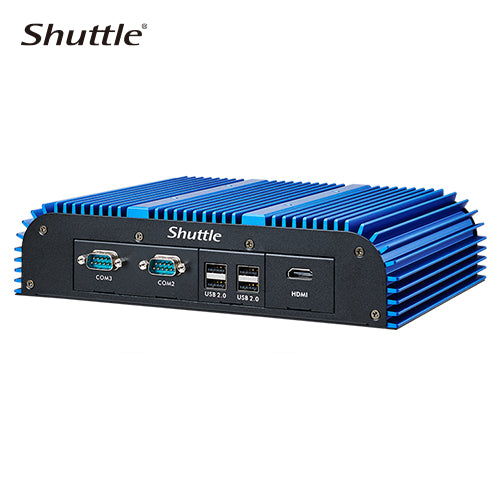

• Shuttle BPCAL02 Box PC, Intel i3-1215U, 2 x Intel® 2.5G LAN, 90W External Adapter, HDMI, VESA Mount
1 1

Shuttle

Shuttle BPCAL02 Box PC, Intel i3-1215U, 2 x Intel® 2.5G LAN, 90W External Adapter, HDMI, VESA Mount

Shuttle BPCAL02 Box PC, Intel i3-1215U, 2 x Intel® 2.5G LAN, 90W External Adapter, HDMI, VESA Mount

$1,519.00
$1,519.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

Shuttle BPCAL02 Box PC, Intel i3-1215U, 2 x Intel® 2.5G LAN, 90W External Adapter, HDMI, VESA Mount


  • Shuttle BPCAL02 Box PC, Intel i3-1215U, 2 x Intel® 2.5G LAN, 90W External Adapter, HDMI, VESA Mount
  • Unparalleled Real-Time Edge Computing Prowess
  • Shuttle’s BPCAL02 and BPCAL03 are intelligent embedded PCs, with Intel® 12th Gen Alder Lake processors for optimized intelligent workloads. These computers support dual-channel DDR5-4800 memory, enhance caching, and ensure data security and accelerate a wide range of tasks, including edge AI inference, data analysis, process control, image recognition, and more. Their highly flexible I/O modular designs, along with various mounting options, also meet a wide range of customized requirements in industrial IoT environments.
  • 12th Gen Intel® Alder Lake Core™ Processor
  • Intel Alder Lake platform is the optimal processor for IoT applications. It employs a 10nm process architecture with a hybrid design featuring P-cores for primary workloads and E-cores built for multitasking, meticulously optimized for intelligent tasks. As the latest generation, Alder Lake (P-core) offers a 28% performance improvement for users, along with an approximate 20% boost in IPC (Instructions Per Clock).
  • Enables Intel® Iris® Xᵉ with dual-channel memory.
  • Processor 12th Gen. Intel® Alder Lake Core i3-1215UE
  • Memory 2 x 262 pin SO-DIMM up to 64GB
  • Dual Channel DDR5 4800 MHz
  • BIOS AMI UEFI 64 Mbit
  • Display Interface 2 x HDMI 2.0b: 4096 x 2160@60Hz
  • Display output max: 4 independent or clone
  • Audio Codec Realtek ALC888s-VD 2-channel
  • Ethernet 2 x Intel® 2.5G LAN
  • WLAN Intel WiFI Module (802.11 a/b/g/n/ac) & BT 5.0 (Option)
  • Realtek RTL8821CE 802.11a/b/g/n/ac + Bluetooth 4.2 WLAN card M.2 2230 E key (Option)
  • LAN 2 x RJ-45 (10/100/1000Mbps/2.5GbE)
  • Supports Wake On LAN
  • Serial Ports 1 x RS-232 (DB-9)
  • 2 x RS-232/422/485 (DB-9)
  • USB 4 x USB3.2 Gen 2 (Type A), 4 x USB2.0
  • Audio 1 x Line-out
  • 1 x Mic-in
  • Operating Temperature BPCAL02: 0 ~ 40°C
  • EMC CE, FCC, VCCI, BSMI, RCM
  • Safety cTUVus, CB, CEC, BSMI
