LDR Outdoor Smart Solar Box,IP55,Touch Screen,Waterproof Cabniet,Solar Power Input( <100VD), 2 PoE Port Up to 90W,6 PoE Port Up to 30W, L2 Mange,White


  • LDR Smart Solar Box, IP55, With Touch Screen
  • SKU: RCLDR-DB-QU3082SPG-T
  • Description:

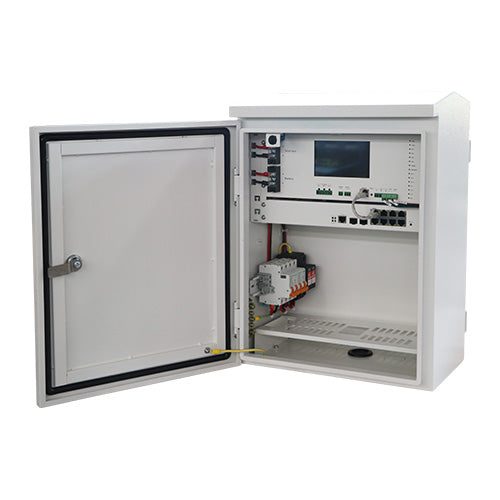

  • RCLDR-OD-QB2082SPG-T is an outdoor smart solar powered box, powered by solar battery, with MPPT controller, PoE switch, circuit-breaker, surge protector inside. It can be applied for surveillance monitoring, forest monitoring, etcWith #5 inch touched screen. Customers can check some key parameters on site,ex solar parameters, battery parameters, control DC output, alarm information, and modify the IP, the humidity and temperature,serial number etc.
  • Data Sheet: Click Here
  • User Manual: Click Here
  • Cabinet Display : Click Here
  • Screen Schematic: Click Here
  • Touch Screen Vedio: Click Here
  • Software Installation: Click Here
  • Please contact us for more Software platfrom details after purchase. *
  • Key Features
  • BYO: * Need to buy your own battery* - DC 12V lead-acid or Lithium Battery - *Customer Provide*
  • BYO: * Need to buy your own solar panel* - Solar power input, input <100VDC;
  • Dimension(H×W×D): 500mm×380mm×220mm
  • Load Capacity : 70kg
  • Provide DC 3 channel power output, can remotely control, detect the output voltage and current;
  • Supports 2 port PoE power each up to 90W, 6 port PoE power each up to 30W;
  • Network Switch: 8*/10/100/1000M Base-TX 30W PoE, 2* 1000M SFP, unmanaged
  • Supports L2 management, such as QoS, VLAN, MSTP, Multi-broadcast, ports management and PoE management;
  • With Touch Screen, 5 inch, resolution ratio 480*800
  • With MPPT controller, connected the solar battery and charge the storage battery ;
  • The box adopts waterproof, anti-rust treatment, suitable for long time outdoor use.
  • Software platform- control remotely.
