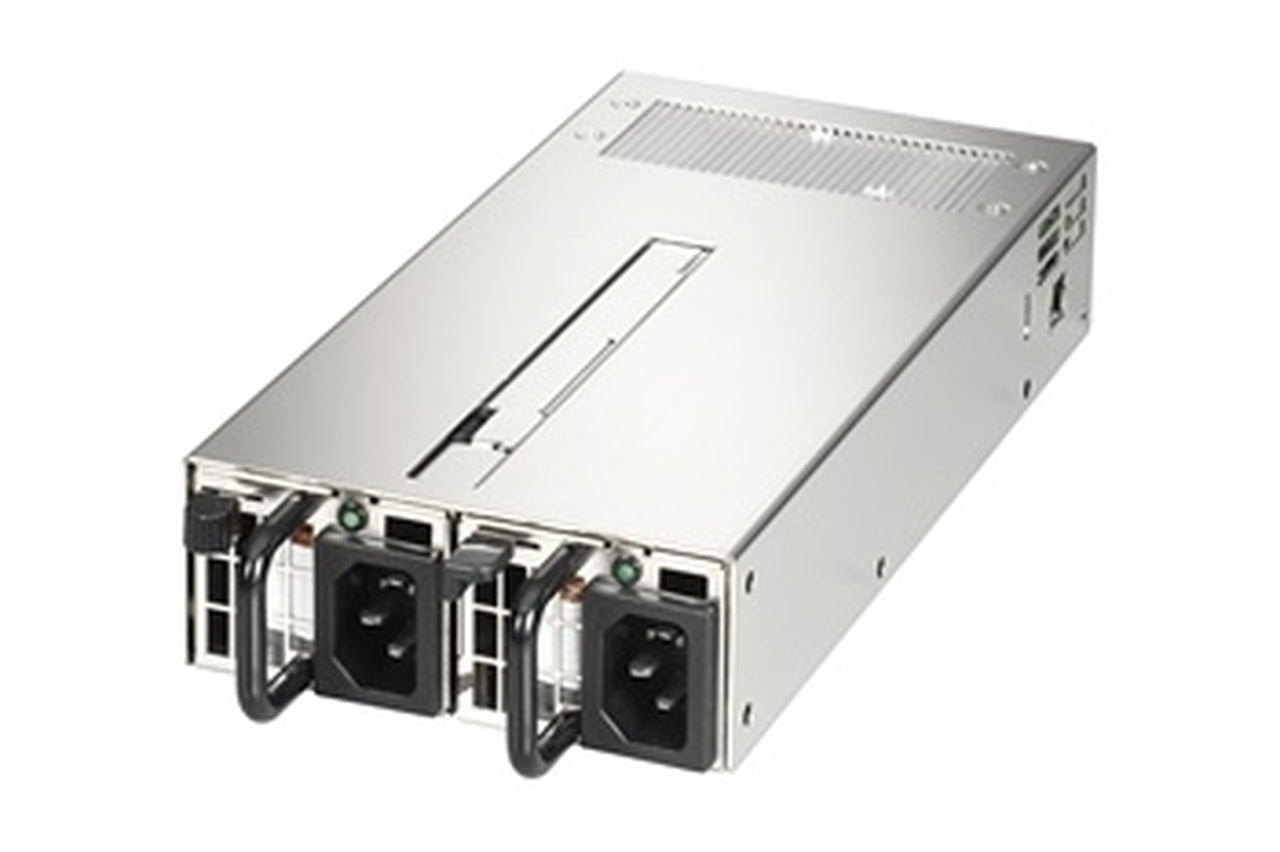

• ZIPPY 1U REDUNTANT 120W PSU R1T2-5120V0H 215 X 106 X41.5 mm For Server
1 1

Zippy

ZIPPY 1U REDUNTANT 120W PSU R1T2-5120V0H 215 X 106 X41.5 mm For Server

ZIPPY 1U REDUNTANT 120W PSU R1T2-5120V0H 215 X 106 X41.5 mm For Server

$666.00
$666.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

ZIPPY 1U REDUNTANT 120W PSU R1T2-5120V0H 215 X 106 X41.5 mm For Server


  • ZIPPY 1U REDUNTANT 120W PSU R1T2-5120V0H 215 X 106 X41.5 mm For Server
  • FEATURES
  • TEMPERATURE RANGE：OPERATING 0℃～50℃, STORAGE -20℃~80℃
  • HOLD UP TIME：WHEN POWER SHUTDOWN DC OUTPUT 12V MUST BE MAINTAIN 17MSEC IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE
  • THE MAXIMUM POWER SUPPLY SYSTEM EFFICIENCY SHALL BE 86%, MEASURED AT NOMINAL INPUT VOLTAGE 230 V AND FULL LOADING(+12V:10A).
  • LEAKAGE CURRENT: 3.5 MA. MAX. AT NOMINAL VOLTAGE 250VAC
  • REMOTE ON/OFF CONTROL
  • POWER GOOD SIGNAL：ON DELAY 100mS TO 550mS，OFF DELAY 1Ms
  • OVER POWER PROTECTION：110～150% MAX
  • OVER VOLTAGE PROTECTION: +5V→5.7~6.5V, +3.3V→3.7~4.1V, +12V→12.8~15V
  • SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V, +5VSB
  • SAFETY: MEET UL&CUL, TUV, CCC
  • WARNING METHOD: AUDIO ALARM(BUZZER SOUND, RESETABLE), FALUT LED, TTL
  • THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
  • OUTPUT WATTAGE
  • 120W
  • BEST SOLUTION FOR
  • Server
  • DIMENSION
  • 215x106x41.5(mm)
  • 8.46x4.17x1.63(inch)
  • INPUT SPEC
  • VOLTAGE： 90～264VAC FULL RANGE
  • FREQUENCY： 47～63HZ
  • INPUT CURRENT：2A (RMS) FOR 115 VAC
  • 1A (RMS) FOR 230 VAC
  • INRUSH CURRENT：35A MAX. FOR 115 VAC PER MODULE
  • 70A MAX. FOR 230 VAC PER MODULE
  • DC OUTPUT SPEC
  • Output Voltage Output Current Min. Output Current Max. Regulation Load Regulation Line Output Ripple & Noise Max.[P-P]
  • 5V 0 10 ±5% ±1% 50mV
  • 12V 2 10 ±5% ±1% 120mV
  • 3.3V 0 10 ± 5% ±1% 50mV
  • 12V 0 0.3 ±10% ± 1% 120mV
  • 5VSB 0.1 3 ±5% ±1% 50mV
