• Gigabyte UD850GM PG5 850W ICE ATX PSU Power Supply 80 PLUS GOLD Fan Type 120mm Hydraulic Bearing(HYB)fan >100,000 hours
1 1

Gigabyte

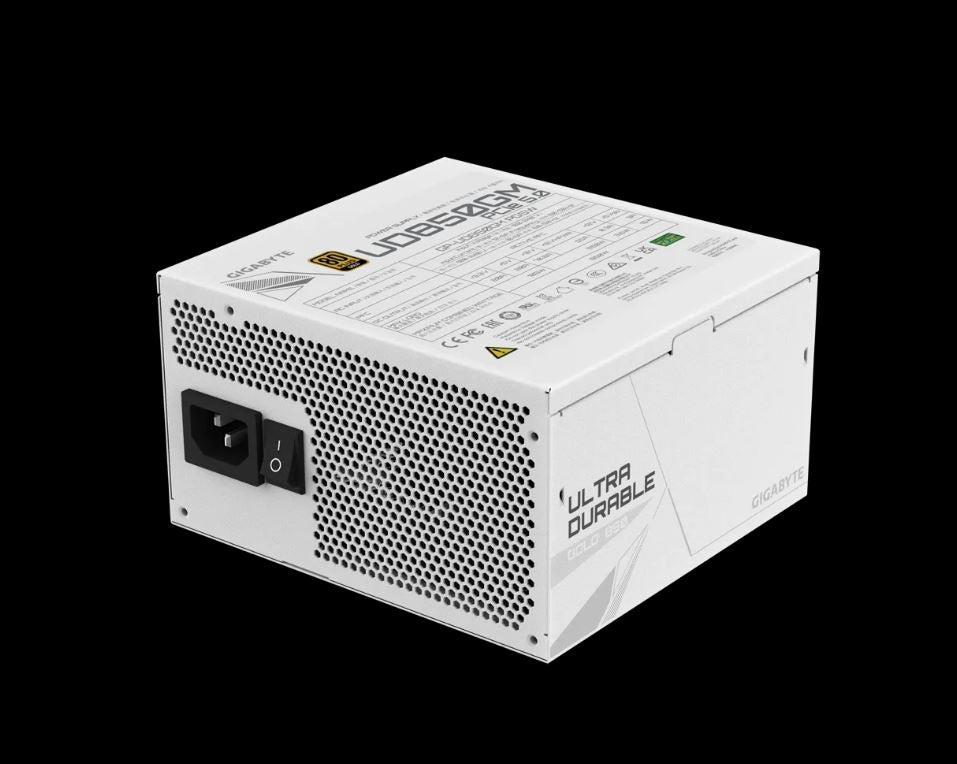

Gigabyte UD850GM PG5 850W ICE ATX PSU Power Supply 80 PLUS GOLD Fan Type 120mm Hydraulic Bearing(HYB)fan >100,000 hours

Gigabyte UD850GM PG5 850W ICE ATX PSU Power Supply 80 PLUS GOLD Fan Type 120mm Hydraulic Bearing(HYB)fan >100,000 hours

$197.00
$197.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

Gigabyte UD850GM PG5 850W ICE ATX PSU Power Supply 80 PLUS GOLD Fan Type 120mm Hydraulic Bearing(HYB)fan >100,000 hours


  • Gigabyte UD850GM PG5 850W ICE ATX PSU Power Supply 80 PLUS GOLD Fan Type 120mm Hydraulic Bearing(HYB)fan >100,000 hours
  • Model GP-UD850GM PG5
  • Type Intel Form Factor ATX 12V
  • PFC Active PFC (>0.9 typical)
  • Input Voltage 100-240 Vac (full range)
  • Input Current 12-6A
  • Input Frequency 60-50 Hz
  • Output Capacity 850W
  • Dimension 150 x 140 x 86 mm
  • Fan Type 120mm Hydraulic Bearing(HYB)fan
  • 80 PLUS Gold
  • Efficiency 90% at typical load
  • MTBF >100,000 hours
  • Protection OVP/OPP/SCP/UVP/OCP/OTP
  • Power Good Signal 100-150ms
  • Hold Up Time >16ms
  • Cable Type Flat, All black
  • Connectors
  • ATX/MB 20+4 Pin x 1 : 610mm*1
  • CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
  • PCI-e 12+4 Pin x 1: 700mm*1
  • PCI-e 6+2 Pin x 4 : 600mm+150mm*2
  • SATA x 8 :
  • 600mm+150mm+150mm+150mm*2
  • 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
