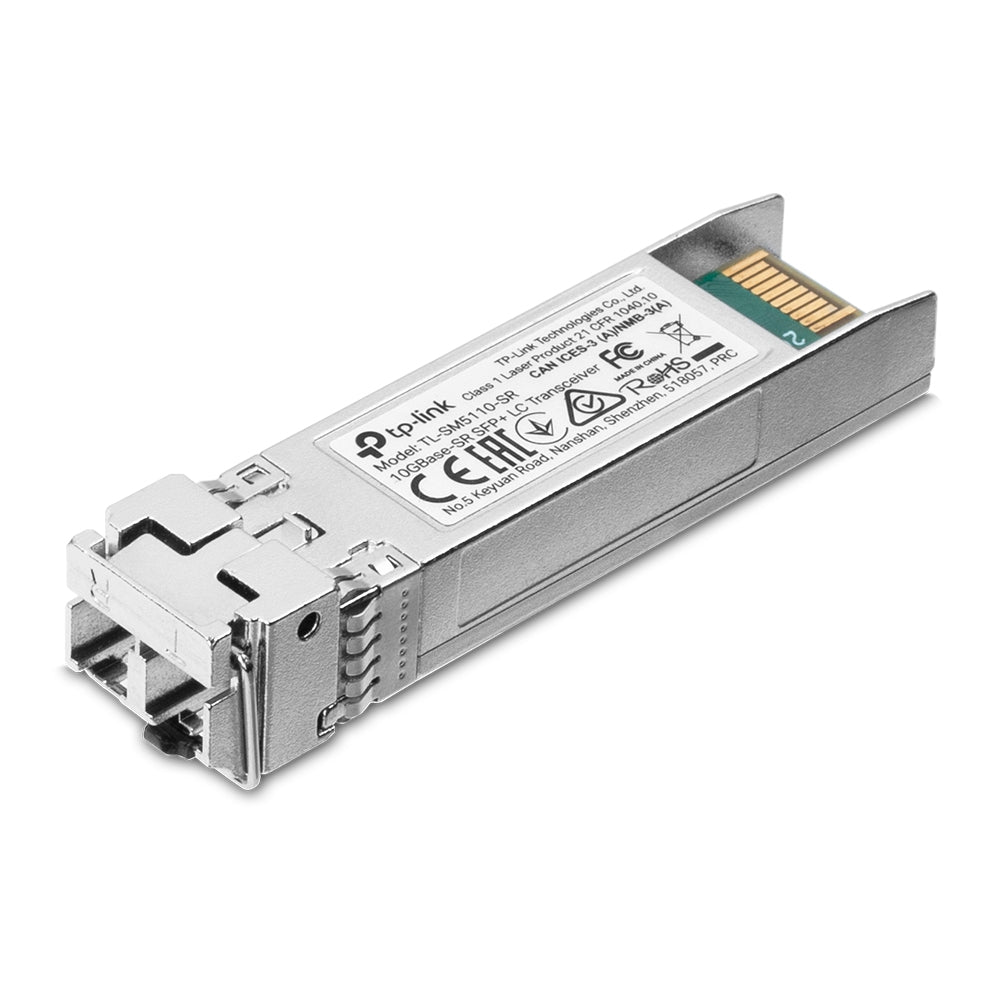

TP-Link TL-SM5110-SR 10GBase-LR 10GBase-SR SFP+ LC Transceiver Multi Mode Hot-Pluggable Digital Diagnostic Monitoring SFP+ MSA Compatible


  • TP-Link TL-SM5110-SR 10GBase-LR 10GBase-SR SFP+ LC Transceiver Multi Mode Hot-Pluggable Supports Digital Diagnostic Monitoring SFP+ MSA Compatible
  • Multi-mode SFP+ LC Transceiver
  • Hot-Pluggable with maximum flexibility
  • Supports Digital Diagnostic Monitoring (DDM)
  • Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
  • Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
  • What This Product Does
  • The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
  • HARDWARE FEATURES
  • DDM Yes
  • SFP-MSA Yes
  • Hot Swappable Yes
  • TRANSCEIVER
  • Standards and Protocols IEEE 802.3ae, TCP/IP, SFF-8472
  • Wave Length 850nm
  • Power Supply 3.3V
  • Fiber Type 50/125um or 62.5/125um Multi-mode
  • Max. Cable Length 300m (OM3)
  • Data Rate 10Gbps
  • Port Type LC/UPC
  • Safety & Emission FCC, CE
  • Environment Operating Temperature: 0–70 ℃ (32–158 ℉)
  • Storage Temperature: -40–80 ℃ (-40–176 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing
