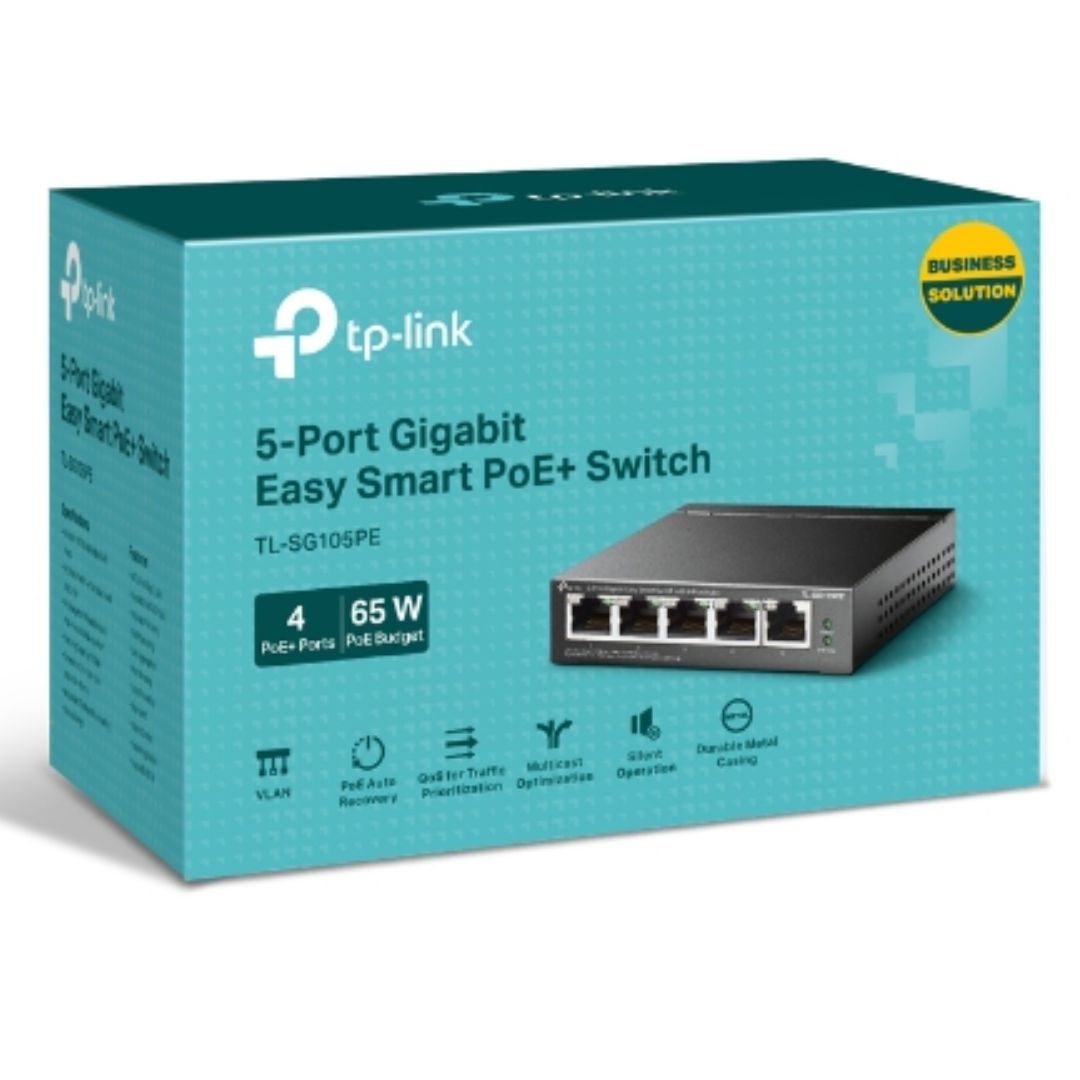

• TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+, Up To 65W For all PoE Ports, Up To 30W Each PoE Port
1 1

TP-LINK

TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+, Up To 65W For all PoE Ports, Up To 30W Each PoE Port

TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+, Up To 65W For all PoE Ports, Up To 30W Each PoE Port

$79.00
$79.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+, Up To 65W For all PoE Ports, Up To 30W Each PoE Port


  • TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+
  • Five 10/100/1000Mbps RJ45 ports
  • Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data and power can be transferred on one single cable
  • Supports PoE power up to 65 W for all PoE ports
  • Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and Easy Smart Configuration Utility simplify configuration
  • HARDWARE FEATURES
  • Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
  • IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
  • Interface Five 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation/AUTO MDI/MDIX
  • Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • Fan Quantity Fanless
  • Power Supply External Power Adapter (Output: 53.5 VDC/1.31 A)
  • PoE Ports (RJ45) Standard: 802.3 af/at compliant
  • PoE Ports: Port 1- Port 4
  • PoE Power Budget: 65 W
  • Max Power Consumption 4.52 W (220V/50Hz with no PD connected)
  • 75.16 W (220V/50Hz with 65 W PD connected)
  • Max Heat Dissipation 15.41 BTU/h (with no PD connected)
  • 256.30 BTU/h (with 65 W PD connected)
  • PERFORMANCE
  • Switching Capacity 10 Gbps
  • Packet Forwarding Rate 7.44 Mpps
  • MAC Address Table 2 K
  • Packet Buffer Memory 1.5 Mb
  • Jumbo Frame 16 KB
  • SOFTWARE FEATURES
  • Quality of Service Support Port-Based/802.1p/DSCP priority
  • Support 4 priority queues
  • Rate Limit
  • Storm Control
  • L2 Features IGMP Snooping V1/V2/V3
  • Static Link Aggregation
  • Port Mirroring
  • Cable Diagnostics
  • Loop Prevention
  • PoE Auto Recovery
  • Extend Mode
  • VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
  • MTU/Port/Tag VLAN
  • Management Web-based GUI
