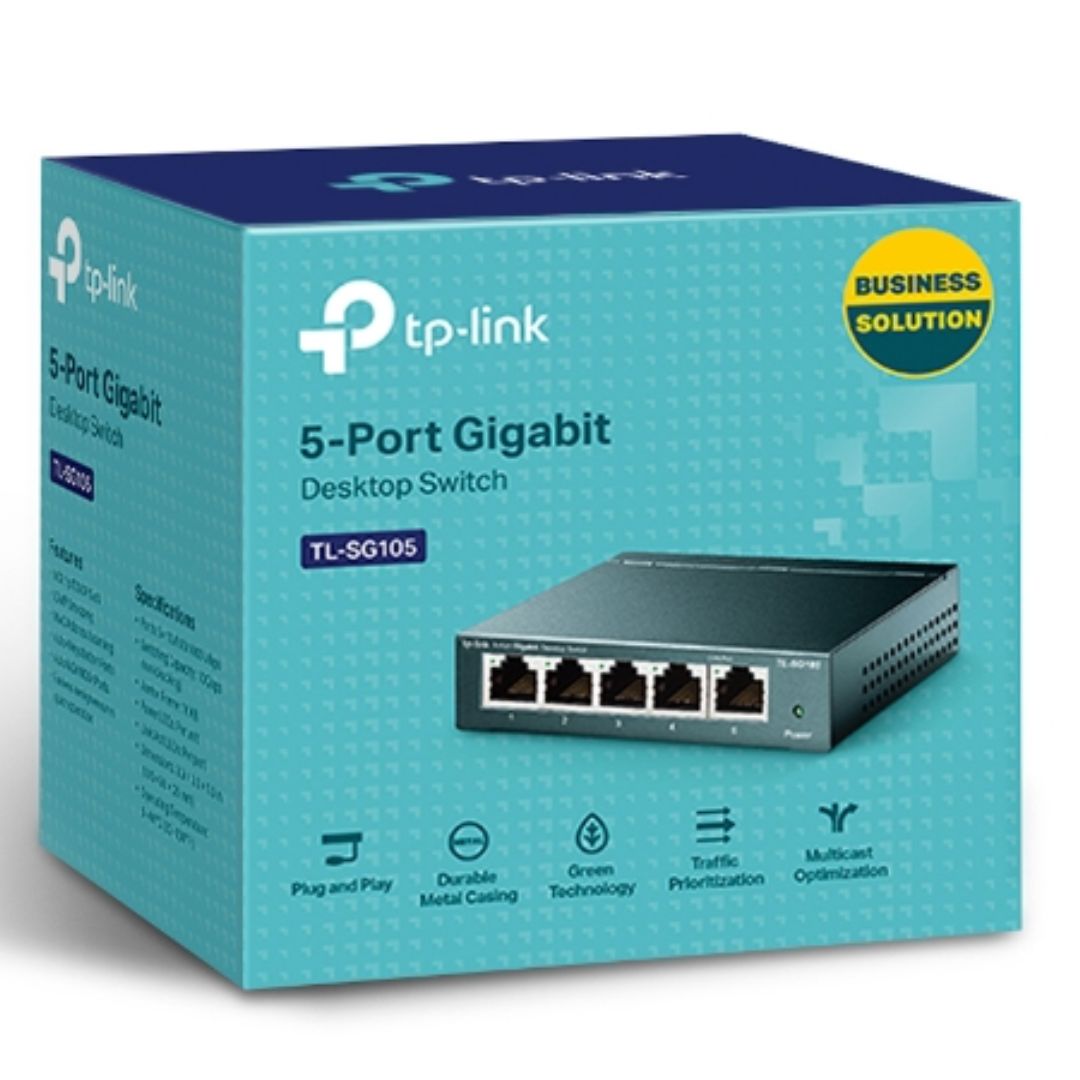

• TP-Link TL-SG105 5port Switch Desktop,Gigabit,Steel Case, 5-Port 10/100/1000Mbps RJ45 Supporting Auto-MDI/MDIX, Plug and Play, Fanless
1 1

TP-LINK

TP-Link TL-SG105 5port Switch Desktop,Gigabit,Steel Case, 5-Port 10/100/1000Mbps RJ45 Supporting Auto-MDI/MDIX, Plug and Play, Fanless

TP-Link TL-SG105 5port Switch Desktop,Gigabit,Steel Case, 5-Port 10/100/1000Mbps RJ45 Supporting Auto-MDI/MDIX, Plug and Play, Fanless

$39.00
$39.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

TP-Link TL-SG105 5port Switch Desktop,Gigabit,Steel Case, 5-Port 10/100/1000Mbps RJ45 Supporting Auto-MDI/MDIX, Plug and Play, Fanless


  • TP-Link TL-SG105 5port Switch Desktop,Gigabit,Steel Case
  • 5-Port 10/100/1000Mbps Desktop Switch
  • 5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Plug and play, no configuration needed
  • Supports 802.1p/DSCP QoS and IGMP Snooping functions
  • Durable metal casing, desktop/wall-mounting options, and a fanless design
  • IEEE 802.3x flow control provides reliable data transfer
  • Green Ethernet technology reduces power consumption
  • HARDWARE FEATURES
  • Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
  • Interface 5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
  • Fan Quantity Fanless
  • External Power Supply External Power Adapter (Output: 5 V DC / 0.6A)
  • LED Indicator System Power
  • Link/Act indicators per port built into each RJ-45 port
  • Dimensions ( W x D x H ) (100 x 98 x 25 mm)
  • Max Power Consumption 2.3 W (220 V/ 50 Hz)
  • Max Heat Dissipation 7.83 BTU/h
  • PERFORMANCE
  • Packet Forwarding Rate 7.4 Mpps
  • MAC Address Table 2K
  • Packet Buffer Memory 1 Mb
  • Jumbo Frame 16 KB
  • SOFTWARE FEATURES
  • Advanced Features Green Technology
  • 802.3X Flow Control
  • 802.1P/DSCP QoS (for V2 and later version)
  • IGMP Snooping
  • Transfer Method Store and Forward
  • OTHERS
  • Certification CE, FCC, RoHS
  • Package Contents 5-Port 10/100/1000Mbps Desktop Switch
  • Power Adapter
  • Installation Guide
  • Environment Operating Temperature: 0–40 °C (32–104 °F)
  • Storage Temperature: -40–70 °C (-40–158 °F)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing
