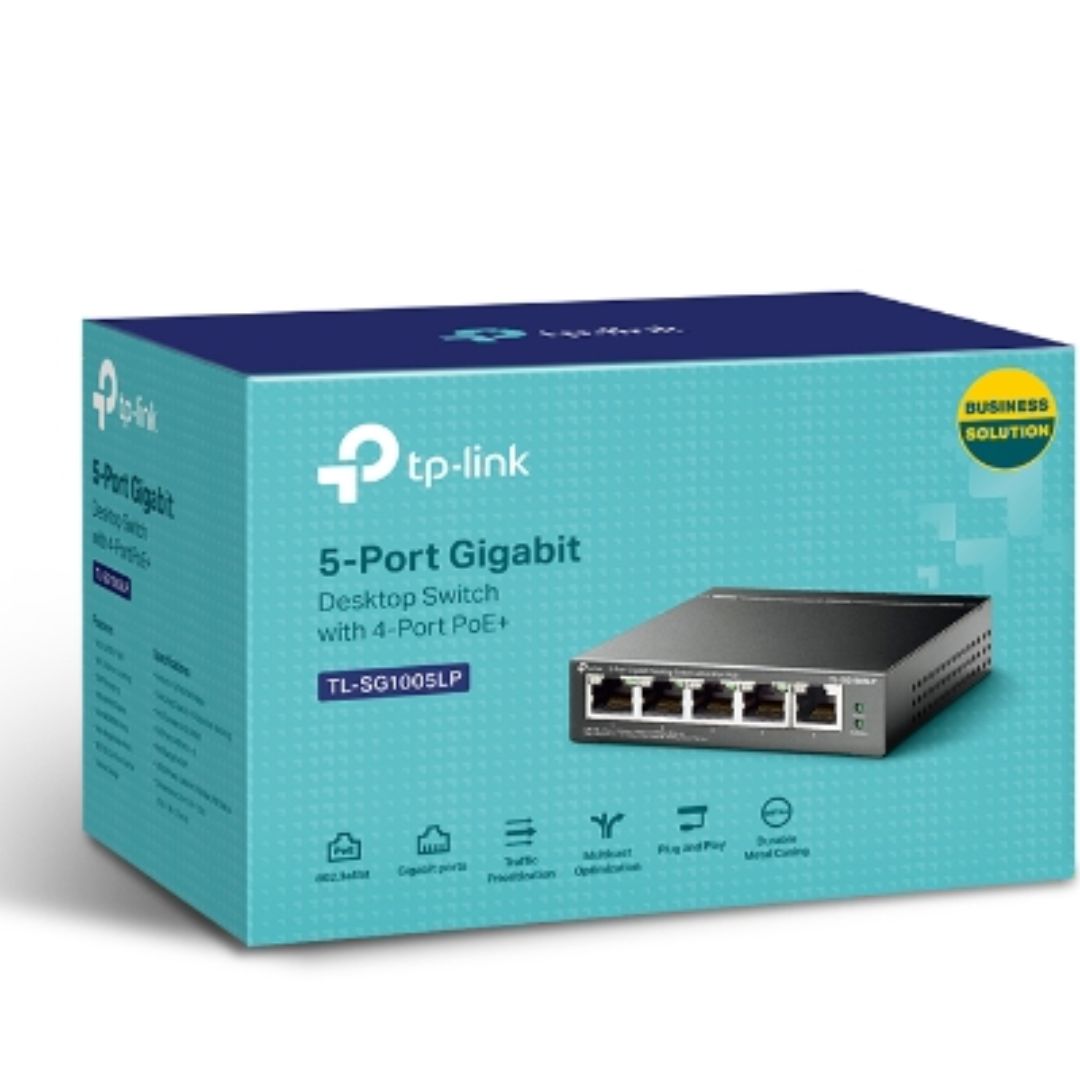

• TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+, Up To 40W For all PoE Ports, Up To 30W Each Port
1 1

TP-LINK

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+, Up To 40W For all PoE Ports, Up To 30W Each Port

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+, Up To 40W For all PoE Ports, Up To 30W Each Port

$59.00
$59.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+, Up To 40W For all PoE Ports, Up To 30W Each Port


  • TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+
  • 5× 10/100/1000 Mbps RJ45 ports
  • With four PoE+ ports, transfers data and power on one single cable
  • Works with IEEE 802.3af/at compliant PDs
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE Power up to 30 W for each PoE port
  • Supports PoE Power up to 40 W for all PoE ports*
  • Plug and play, no configuration and installation required
  • HARDWARE FEATURES
  • Interface - 5× 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation
  • AUTO MDI/MDIX
  • Network Media - 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • Fan Quantity Fanless
  • External Power Supply External Power Adapter (Output: 53.5 VDC / 0.81 A)
  • Packet Forwarding Rate 7.44 Mpps
  • PoE Ports (RJ45) - Standard: 802.3 af/at compliant
  • PoE Ports: Ports 1–4
  • Power Supply: 40 W
  • Mac Address Table 2K
  • Jumbo Frame 16 KB
  • Switching Capacity 10 Gbps
  • Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8×98×25 mm)
  • Max Power Consumption - 4.12 W (220/50 Hz. no PD connected)
  • 47.5 W (220/50 Hz. with 40 W PD connected)
  • Max Heat Dissipation - 14.05 BTU/h (no PD connected)
  • 161.98 BTU/h (with 40 W PD connected)
  • SOFTWARE FEATURES
  • Advanced Features - Compatible With IEEE 802.3af/at Compliant PDs
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • 802.1p/DSCP QoS
  • IGMP Snooping
  • Transfer Method Store-And-Forward
  • OTHERS
  • Certification FCC, CE, RoHS
  • Package Contents - TL-SG1005LP
  • Power Adapter
  • Installation Guide
  • Environment - Operating Temperature: 0–40 ℃ (32–104 ℉);
  • Storage Temperature: -40–70 ℃ (-40–158 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing
