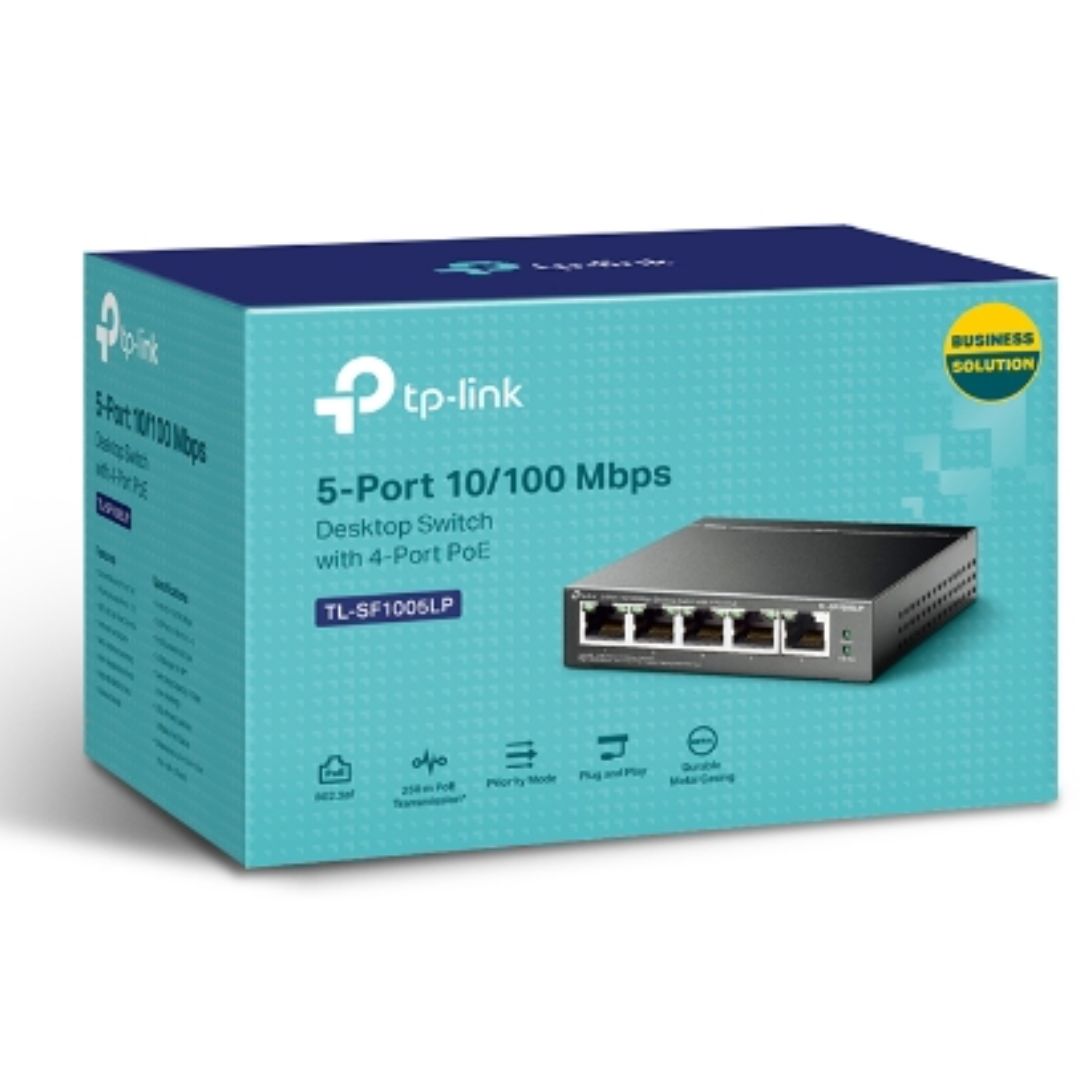

TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop Switch with 4-Port PoE 41W IEEE 802.3af compliant 1Gbps Switching

TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop Switch with 4-Port PoE 41W IEEE 802.3af compliant 1Gbps Switching

$59.00
$59.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop Switch with 4-Port PoE 41W IEEE 802.3af compliant 1Gbps Switching


  • TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
  • 5× 10/100 Mbps RJ45 ports
  • 4× PoE ports transfer data and power on individual cables
  • Works with IEEE 802.3af compliant PDs
  • Up to 250 m data and power transmitting range under Extend Mode**
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
  • Supports PoE Power up to 41 W for all PoE ports*
  • Plug and play with no configuration required
  • HARDWARE FEATURES
  • Interface - 5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)
  • AUTO Negotiation
  • AUTO MDI/MDIX
  • Network Media - 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • Fan Quantity Fanless
  • Physical Security Lock Yes
  • External Power Supply External Power Adapter (Output: 53.5 V DC / 0.81 A)
  • Packet Forwarding Rate 0.744 Mpps
  • PoE Ports (RJ45) - Standard: 802.3 af compliant
  • PoE Ports: Ports 1–4
  • Power Supply: 41 W
  • Mac Address Table 2K
  • Jumbo Frame 2 KB
  • Switching Capacity 1 Gbps
  • Dimensions ( W x D x H ) 3.9×3.9×1.0 in (100×98×25 mm)
  • Max Power Consumption - 1.9 W (220 V / 50 Hz, no PD connected)
  • 47 W (220 V / 50 Hz, with 41 W PD connected)
  • Max Heat Dissipation - 6.48 BTU/h(no PD connected)
  • 160.27 BTU/h(with 41 W PD connected)
  • SOFTWARE FEATURES
  • Transmission Method Store-And-Forward
  • Advanced Functions - Compatible With IEEE 802.3af/at Compliant PDs
  • Extend Mode Button (Ports 1–4)
  • Priority Mode Button (Ports 1–2)
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
  • OTHERS
  • Certification FCC, CE, RoHS
  • Package Contents - TL-SF1005LP
  • Power Adapter
  • Installation Guide
  • Environment - Operating Temperature: 0–40 ℃ (32–104 ℉)
  • Storage Temperature: -40–70 ℃ (-40–158 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH
