TP-Link MC111CS 10/100Mbps SC WDM Media Converter Monomode Simplex 10/100Base-TX, 100Base-FX standards Link Fault Passthrough and Far End Fault(LS)


  • TP-Link MC111CS 10/100Mbps WDM Media Converter
  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
  • Adopts WDM technology, transmitting and receiving data on one single fiber
  • MEDIA CONVERTER & MODULE
  • Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Basic Function Adopts WDM technology
  • Half/Full-Duplex transfer mode for FX port
  • Full Duplex Flow Control (IEEE 802.3x)
  • Half Duplex Flow Control (Backpressure)
  • Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
  • Extends fiber distance up to 20km
  • Ports 1 100M SC/UPC port
  • 1 100M RJ45 port (Auto MDI/MDIX)
  • Wave Length 1550nm Tx/1310nm Rx
  • WDM TX 1550nm
  • WDM RX 1310nm
  • Network Media 10BASE-T UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • Network Media 100BASE-T UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • Network Media 100BASE-FX Single-mode Fiber
  • LED Indicators PWR, FDX/Col, Link/Act, SPD
  • Dimensions (W*D*H) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
  • Power Supply External Power Adapter
  • Max Power Consumption 2.49W
  • Safety & Emission FCC, CE, RoHS
  • Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
  • What This Product Does

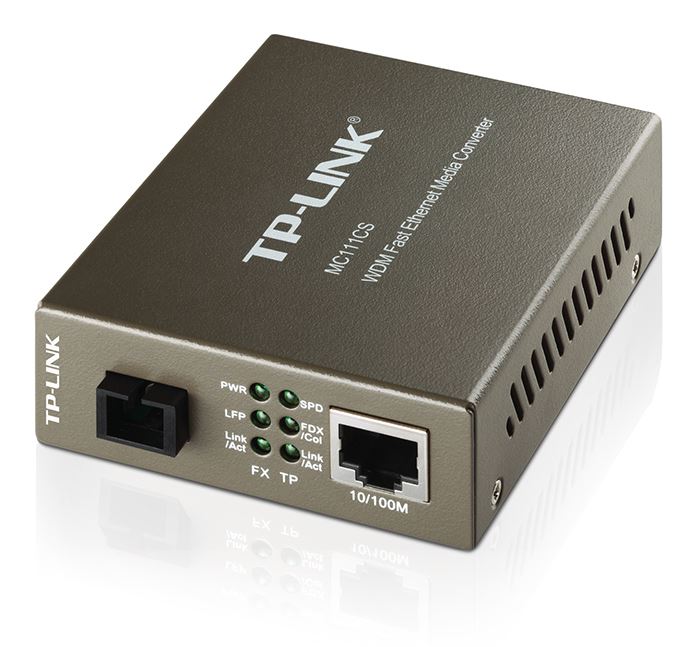

  • The MC111CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Adopting WDM technology, MC111CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC111CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC111CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1550nm on transferring data and at 1310nm on receiving
