• TP-Link CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE Access Point 27dBm 5km Passive PoE MIMO antenna
1 1

TP-LINK

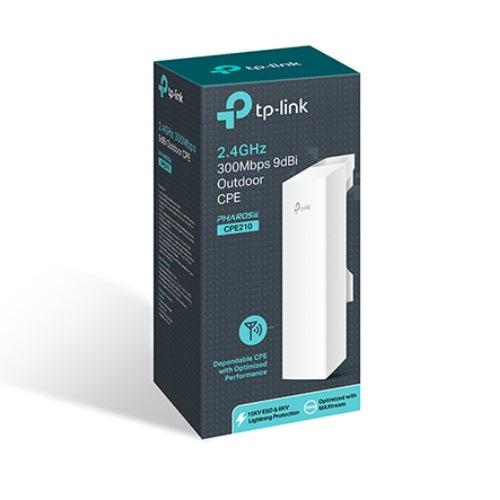

TP-Link CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE Access Point 27dBm 5km Passive PoE MIMO antenna

TP-Link CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE Access Point 27dBm 5km Passive PoE MIMO antenna

$69.00
$69.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

TP-Link CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE Access Point 27dBm 5km Passive PoE MIMO antenna


  • TP-Link CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE Access Point
  • Built-in 9dBi 2x2 dual-polarized directional MIMO antenna
  • Adjustable transmission power from 0 to 27dBm/500mw
  • System-level optimizations for more than 5km long range wireless transmission
  • TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
  • Centralized Management System – Pharos Control
  • AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
  • Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
  • HARDWARE FEATURES
  • Processor Qualcomm Atheros 560MHz CPU, MIPS 74Kc
  • Memory 64MB DDR2 RAM, 8MB Flash
  • Interface 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
  • 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
  • 1 Grounding Terminal
  • 1 Reset Button
  • Power Supply Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
  • Voltage range: 16-27VDC
  • Power Consumption 10.5 Watts Max
  • Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
  • Dimensions ( W x D x H ) 224 x 79 x 60 mm
  • Antenna Type Built-in 9dBi 2x2 Dual-polarized Directional Antenna
  • Beam Width: 65° (H-Plane) / 35° (E-Plane)
  • Note: For more details, please refer to datasheet
  • Protection 15KV ESD Protection
  • 6KV Lightning Protection
  • Enclosure Outdoor ASA stabilized plastic material
  • IPX5 waterproof Certification
  • WIRELESS FEATURES
  • Wireless Standards IEEE 802.11b/g/n (with Pharos MAXtream disabled)
  • Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
  • Wireless Speeds Up to 300Mbps (40MHz,Dynamic)
  • Up to 144.4Mbps (20MHz,Dynamic)
  • Up to 72.2Mbps (10MHz,Dynamic)
  • Up to 36.1Mbps (5MHz,Dynamic)
  • Frequency 2.4~2.483GHz
  • Note: Available operating frequency may vary depending on the limitation
