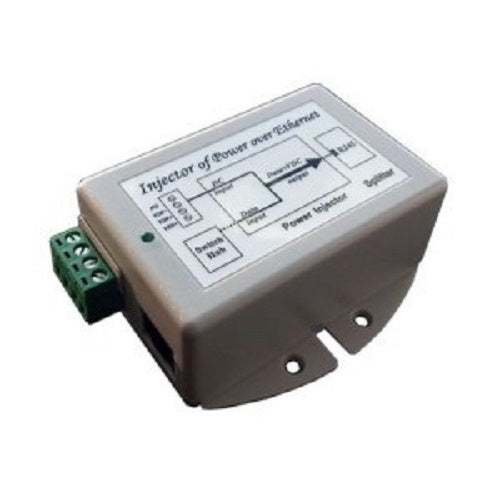

Tycon Power TP-DCDC-1248G, 9-36VDC IN. 48V 20W Gigabit Passive PoE OUT. DC to DC Converter and PoE Injector

Tycon Power TP-DCDC-1248G, 9-36VDC IN. 48V 20W Gigabit Passive PoE OUT. DC to DC Converter and PoE Injector

$154.00
$154.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

Tycon Power TP-DCDC-1248G, 9-36VDC IN. 48V 20W Gigabit Passive PoE OUT. DC to DC Converter and PoE Injector


  • Tycon Power TP-DCDC-1248G 1Gbps 9-36VDC IN 48V OUT 24W DC to DC PoE
  • Description:
  • The TP-DCDC-1248G offered by Tycon Power is a low cost and high efficiency solution for those requiring Passive Power over Ethernet from a 12VDC or 24VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5/6 Ethernet cable. The output voltage is regulated and protected.
  • They have two common (-) and two (+) for connecting 2 power sources, such as a primary with a backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated. A metal enclosure model is available for industrial applications.
  • They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The other models have power outputs up to 24W.
  • SKU:TP-DCDC-1248G
  • SPEC SHEET:Click Here
  • USER GUIDE:Click Here
  • DIMENSIONAL DRAWING:Click Here
  • Features
  • Input Voltage 12VDC or 24VDC (Range 9-36VDC)
  • Passive PoE Output, 48VDC
  • Dual Inputs for Connecting 2 Power Sources
  • Integrated 10/100/1000MB PoE Inserter
  • High Power up to 24W
  • Low Self Consumption Power
  • Short Circuit, Over Current and Reverse/Over Voltage Protect
  • High Temperature Operation
  • Compact Size – Maximize Available Space
  • I.T.E. Power Supply, UL Listed
  • Applications
  • 12V / 24V Battery Systems, Vehicle Applications
  • Wireless Access Points and Client Devices
  • IP Phone and Security Camera Systems
