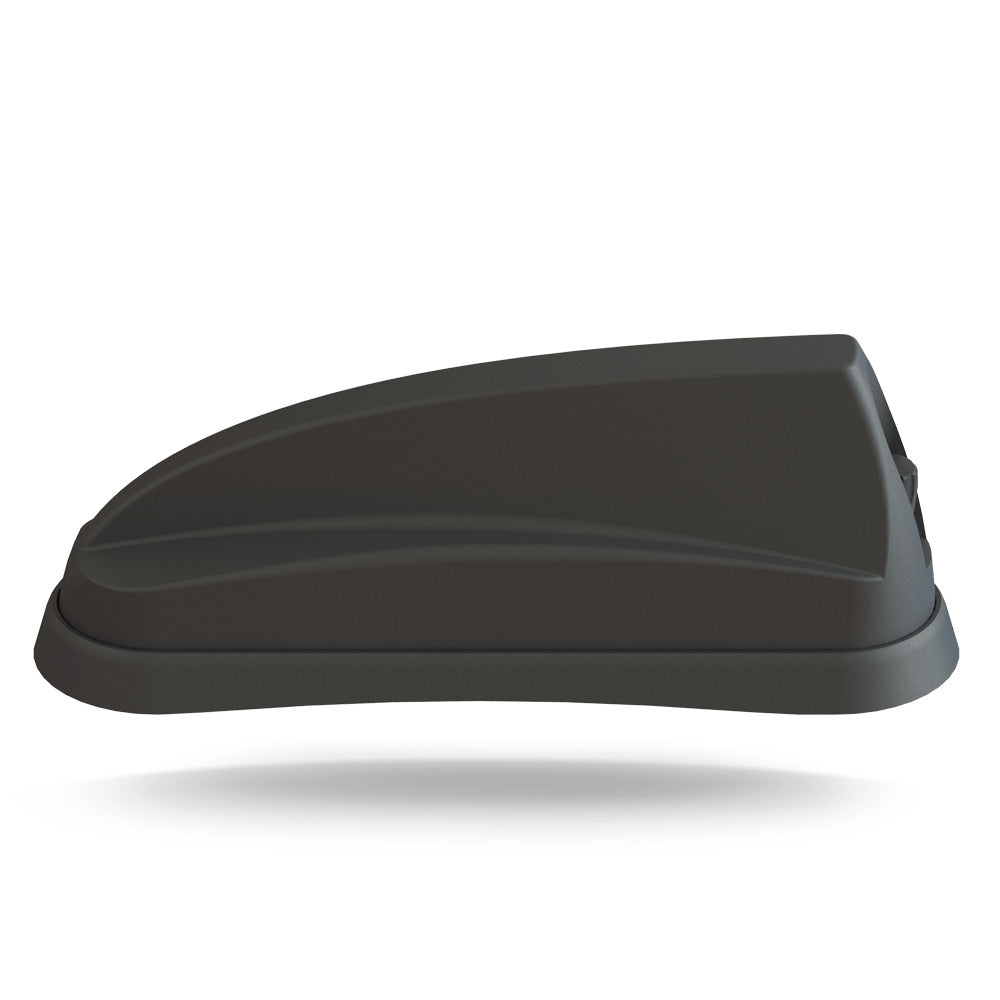

• PANORAMA 2×2 MiMo Cellular Sharkee Antenna Black – 617-960 / 1710-6000MHz, 4G/5G, GPS/GNSS with advanced filtering for LTE Band 13/14
1 1

PANORAMA

PANORAMA 22 MiMo Cellular Sharkee Antenna Black 617-960 / 1710-6000MHz, 4G/5G, GPS/GNSS with advanced filtering for LTE Band 13/14

PANORAMA 22 MiMo Cellular Sharkee Antenna Black 617-960 / 1710-6000MHz, 4G/5G, GPS/GNSS with advanced filtering for LTE Band 13/14

$424.00
$424.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

PANORAMA 2×2 MiMo Cellular Sharkee Antenna Black – 617-960 / 1710-6000MHz, 4G/5G, GPS/GNSS with advanced filtering for LTE Band 13/14


  • PANORAMA 2×2 MiMo Cellular Sharkee Antenna Black – 617-960 / 1710-6000MHz, 4G/5G, GPS/GNSS with advanced filtering for LTE Band 13/14
  • 4G/5G MiMo Antenna Discrete OEM Style Sharkfin. The SHKG ‘Sharkee®’ range has become a byword for industry leading technology in discrete OEM sharkfin housing. The SHKG-6- 60 brings 5G capability to the product family. The antenna can be fitted on a metallic or non-metallic panel and still offer similar performance. The SHKG shark fin style design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient, and robust antenna is essential. Requiring only a single hole mounting, the SHKG reduces vehicle damage, installation time & cost, and visual impact whilst protecting a vehicle’s resale value.
  • Pattern Omnidirectional
  • Max Input Power(W) 10
  • Frequency Range | Gain 617 – 960MHz | 5dBi; 1710 – 3800MHz | 8dBi; 4900 – 6000MHz | 9dBi
  • Cellular LTE Elements 2 x 2 MIMO
  • WIFI Elements No; 2 x 2 MIMO; 3 x 3 MIMO; 4 x 4 MIMO
  • UHF Elements No
  • GPS Frequency Range 1562-1612MHz
  • LNA GAIN (dB) 26
  • Number of GPS Elements 1 Module
  • Cable Length – LTE min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
  • Cable length – GPS min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
  • Cable Length – WIFI min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
  • Cable Type (LTE) FR RG174
  • Cable Type (GPS) FR RG174
  • Cable Type (WIFI) FR RG174
  • Quantity of Cell Cable 2
  • Quantity of GPS/GNSS Extension 1
  • Quantity of WIFI Extension max: 4
  • Connector (WIFI) Reverse Polarity SMA; SMA (f)
  • Connector (GPS) SMA (m); FME (f)
  • Connector (LTE) SMA (m)
  • Mounting Type Fixed Panel
  • Mounting Type Temp Magnetic
  • Mounting Methods Magnetic; Panel
  • IP Rating IP69K
  • Cable Flammability EN45545-2 HL3; UN ECE R118; EN6722
  • Technology GPS; 4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready; FirstNet; GNSS; WIFI MIMO; WIFI
