• PANORAMA Compact Low Profile MIMO LTE antenna 2G/3G/4G/5G LTE cellular bands, Weatherproof 698-960/1710-3800MHz.
1 1

PANORAMA

PANORAMA Compact Low Profile MIMO LTE antenna 2G/3G/4G/5G LTE cellular bands, Weatherproof 698-960/1710-3800MHz.

PANORAMA Compact Low Profile MIMO LTE antenna 2G/3G/4G/5G LTE cellular bands, Weatherproof 698-960/1710-3800MHz.

$89.00
$89.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

PANORAMA Compact Low Profile MIMO LTE antenna 2G/3G/4G/5G LTE cellular bands, Weatherproof 698-960/1710-3800MHz.


  • PANORAMA Compact Low Profile MIMO LTE antenna 2G/3G/4G/5G LTE cellular bands, Weatherproof 698-960/1710-3800MHz.

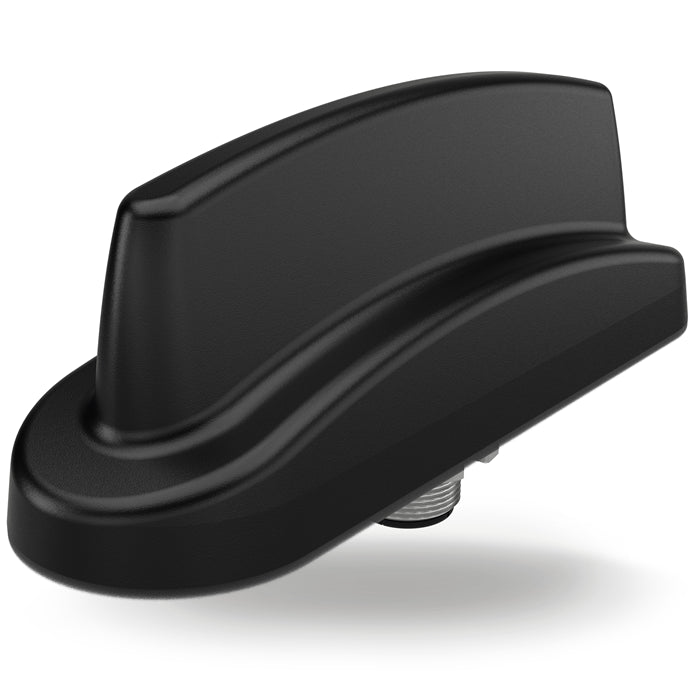

  • The LP[G]AM-BC3G-26-[XSP] range has been designed to provide MiMo Cellular / LTE antenna function for IOT and M2M applications. The compact, robust low-profile housing is weatherproof and contains two antenna elements with effective isolation and correlation covering all current global cellular and LTE bands in freq. range 698-960/1710-3800MHz.The compact, robust low-profile housing is weatherproof and contains two antenna elements with effective isolation and correlation covering all current global cellular and LTE bands in freq. range 698-960/1710-3800MHz. The LG version includes an active GPS/GNSS/Galileo/Beidou antenna for applications that require position or timing function.The antenna can be fitted on a non-conductive panel if required* and offers easy, quick, secure, and weatherproof installation with the single hole mounting bush and acrylic adhesive sealing pad. Supplied with integrated 1m (3.3’) or 3m (10’) cable and SMA plug connectors, the antenna will offer plug and play connectivity with many different terminals.
  • Pattern Omnidirectional
  • Max Input Power(W) 20
  • Frequency Range | Gain 698 – 960MHz | ; 1710 – 2170MHz | 4.5dBi; 2500 – 3800MHz | 5dBi
  • Cellular LTE Elements 2 x 2 MIMO
  • WIFI Elements No
  • UHF Elements No
  • Cable Length – LTE min: 1 (m) | 3.28 (ft); max: 3 (m) | 9.84 (ft)
  • Cable length – GPS min: 1 (m) | 3.28 (ft); max: 3 (m) | 9.84 (ft)
  • Cable Type (LTE) RG174
  • Cable Type (GPS) RG174
  • Connector (GPS) SMA (m)
  • Connector (LTE) SMA (m)
  • Mounting Type Fixed Mast; Panel; Wall
  • Mounting Methods Mast; Panel; Wall
  • IP Rating IP66
  • Technology GPS; 4G/5G; 5G; 2G/3G; 2G/3G/4G; GNSS
