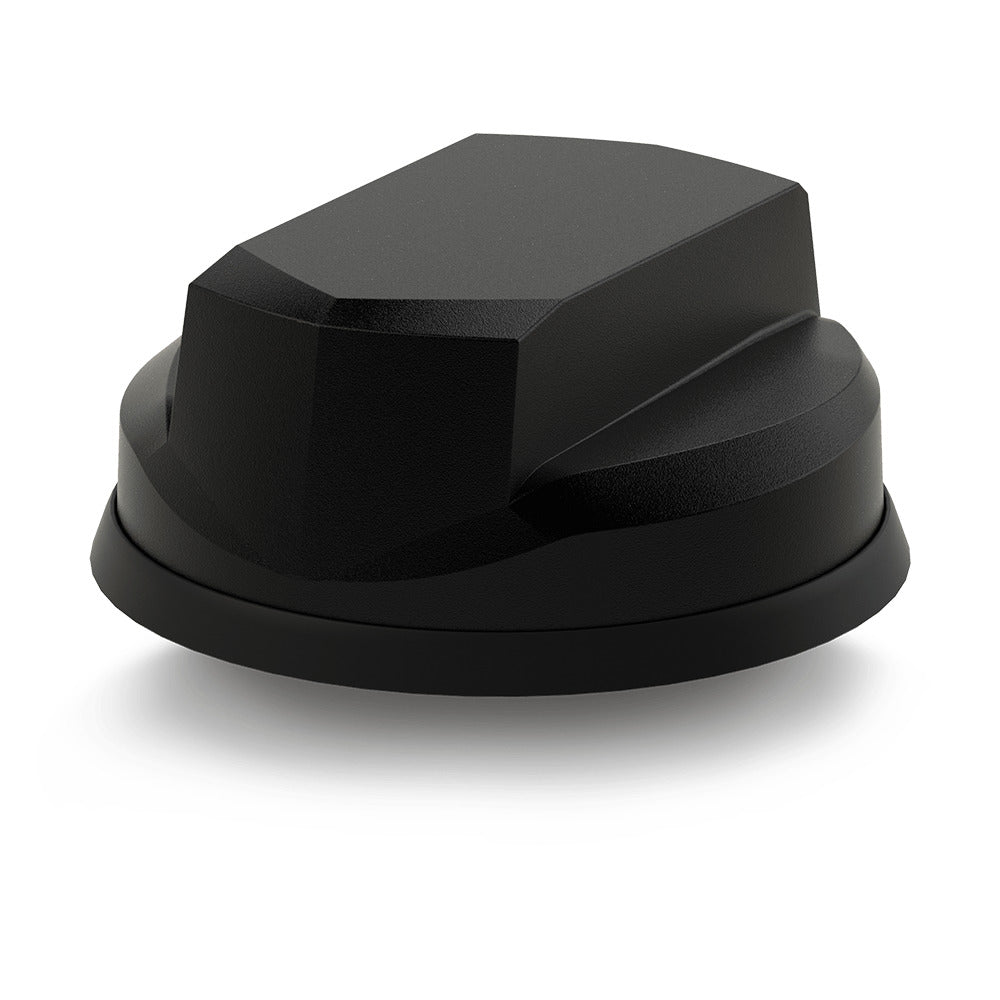

• PANORAMA 2-in-1 4G/5G DOME Antenna Black 5m FTD CABLS ‘Great White’ | 2×2 MiMo 4G/5G, 617-960/1427-6000MHz, IK10, IP69K
1 1

PANORAMA

PANORAMA 2-in-1 4G/5G DOME Antenna Black 5m FTD CABLS Great White | 22 MiMo 4G/5G, 617-960/1427-6000MHz, IK10, IP69K

PANORAMA 2-in-1 4G/5G DOME Antenna Black 5m FTD CABLS Great White | 22 MiMo 4G/5G, 617-960/1427-6000MHz, IK10, IP69K

$457.00
$457.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

PANORAMA 2-in-1 4G/5G DOME Antenna Black 5m FTD CABLS ‘Great White’ | 2×2 MiMo 4G/5G, 617-960/1427-6000MHz, IK10, IP69K


  • PANORAMA 2-in-1 4G/5G DOME Antenna Black 5m FTD CABLS ‘Great White’ | 2×2 MiMo 4G/5G, IK10, IP69K
  • The L[G]M[X]M[X]-6-60[-24-58] range has been designed to provide 2×2 4G/5G MiMo performance from 617-960/1427-6000MHz in a robust low profile package.The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and up to 6×6 MiMo WiFi 2.4/4.9-7.2GHz.The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UN ECE R118.03 and EN45545-2) and a halogen-free flame retardant radome the antenna is suitable for many environments and applications.The LGM variants have an integrated GPS/GNSS module supporting GPS, Glonass, Galileo and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in-band interference.The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection.
  • Pattern Omnidirectional
  • Max Input Power(W) 20
  • Frequency Range | Gain 617 – 960MHz | 5dBi; 1710 – 3800MHz | 9dBi; 4900 – 6000MHz | 10dBi
  • Cellular LTE Elements 2 x 2 MIMO
  • WIFI Elements 6 x 6 MIMO; No; 2 x 2 MIMO; 4 x 4 MIMO; 3 x 3 MIMO
  • UHF Elements No
  • GPS Frequency Range 1562-1612MHz
  • LNA GAIN (dB) 26
  • Number of GPS Elements 1 Module; No
  • Cable Length – LTE min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
  • Cable length – GPS min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
  • Cable Length – WIFI min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
  • Cable Type (LTE) FR RG174
  • Cable Type (GPS) FR RG174
  • Cable Type (WIFI) FR RG174
  • Quantity of Cell Cable 2
  • Quantity of GPS/GNSS Extension 1
  • Quantity of WIFI Extension max: 6
  • Connector (WIFI) Reverse Polarity SMA; SMA (f)
  • Connector (GPS) SMA (m); FME (f)
  • Connector (LTE) SMA (m)
  • MOUNTING DATA
  • Mounting Type Fixed Panel
  • Mounting Type Temp Magnetic
  • Mounting Methods Panel
