• PANORAMA Low Profile Omni-Directional Antenna 2x2 MIMO,1562-1612MHz, Dual band WiFi 2.4/5Ghz Antenna Reverse Polarity SMA,IK10
1 1

PANORAMA

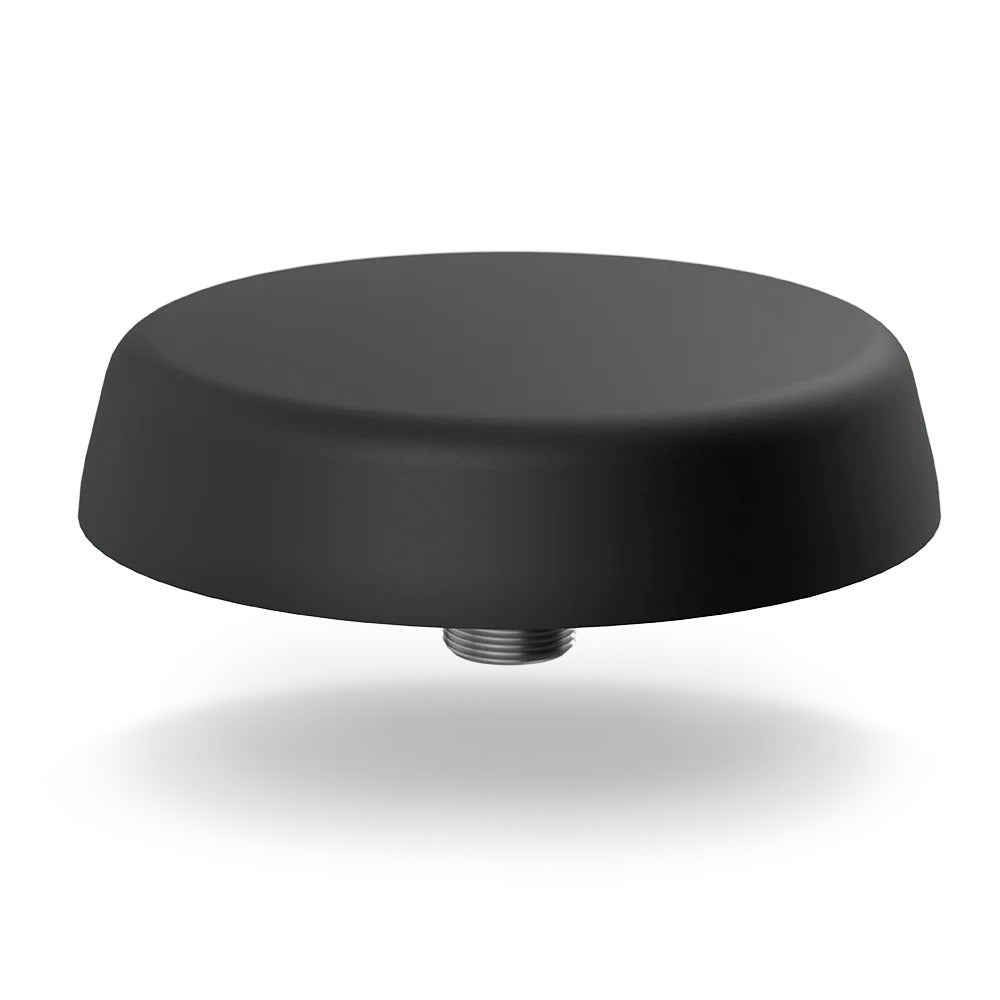

PANORAMA Low Profile Omni-Directional Antenna 2x2 MIMO,1562-1612MHz, Dual band WiFi 2.4/5Ghz Antenna Reverse Polarity SMA,IK10

PANORAMA Low Profile Omni-Directional Antenna 2x2 MIMO,1562-1612MHz, Dual band WiFi 2.4/5Ghz Antenna Reverse Polarity SMA,IK10

$254.00
$254.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

PANORAMA Low Profile Omni-Directional Antenna 2x2 MIMO,1562-1612MHz, Dual band WiFi 2.4/5Ghz Antenna Reverse Polarity SMA,IK10


  • PANORAMA Low Profile Omni-Directional Antenna 2x2 MIMO,1562-1612MHz, Dual band WiFi 2.4/5Ghz Antenna Reverse Polarity SMA,IK10.
  • The L[G]M[X]-24-58 range has been designed to provide MiMo dual-band WiFI coverage in an ultra low profile package. The compact, robust low-profile housing contains up to four antenna elements with effective isolation and low correlation covering 2.4-2.5/4.9-6GHz. The antenna is designed to be panel mounted on vehicles or devices and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant CS32 cables (Compliant to UN ECE R118 and EN45545-2) and a halogen-free flame retardant radome the antenna is suitable for many environments and applications. The LGM variants have an integrated GPS/GNSS module with 26dB LNA gain. The antenna is available with a black or white radome.
  • Pattern Omnidirectional
  • Max Input Power(W) 10
  • Cellular LTE Elements No
  • WIFI Elements 2 x 2 MIMO; 3 x 3 MIMO; 4 x 4 MIMO
  • UHF Elements No
  • GPS Frequency Range 1562-1612MHz
  • LNA GAIN (dB) 26
  • Number of GPS Elements 1 Module; No
  • Cable length – GPS 5 (m) | 16.40 (ft)
  • Cable Length – WIFI 5 (m) | 16.40 (ft)
  • Cable Type (GPS) FR CS32; RG174
  • Cable Type (WIFI) FR CS32
  • Connector (WIFI) Reverse Polarity SMA
  • Connector (GPS) Reverse Polarity SMA; SMA (m)
  • Mounting Type Fixed Panel
  • Mounting Methods Panel
  • IP Rating IP66; IK10; IP69K
  • Cable Flammability EN45545-2 HL3; UN ECE R118; EN6722
  • Material Flammability UL746C-F1, UL94-V0
  • Technology GPS; WIFI MIMO; WIFI; 5G; GNSS
