• PANORAMA 2x2 Multifunction MiMo Antenna 4G/5G LTE 698-3800MHz 2x2 MiMo WiFi 2.4/5.0GHz Low profile fin design
1 1

PANORAMA

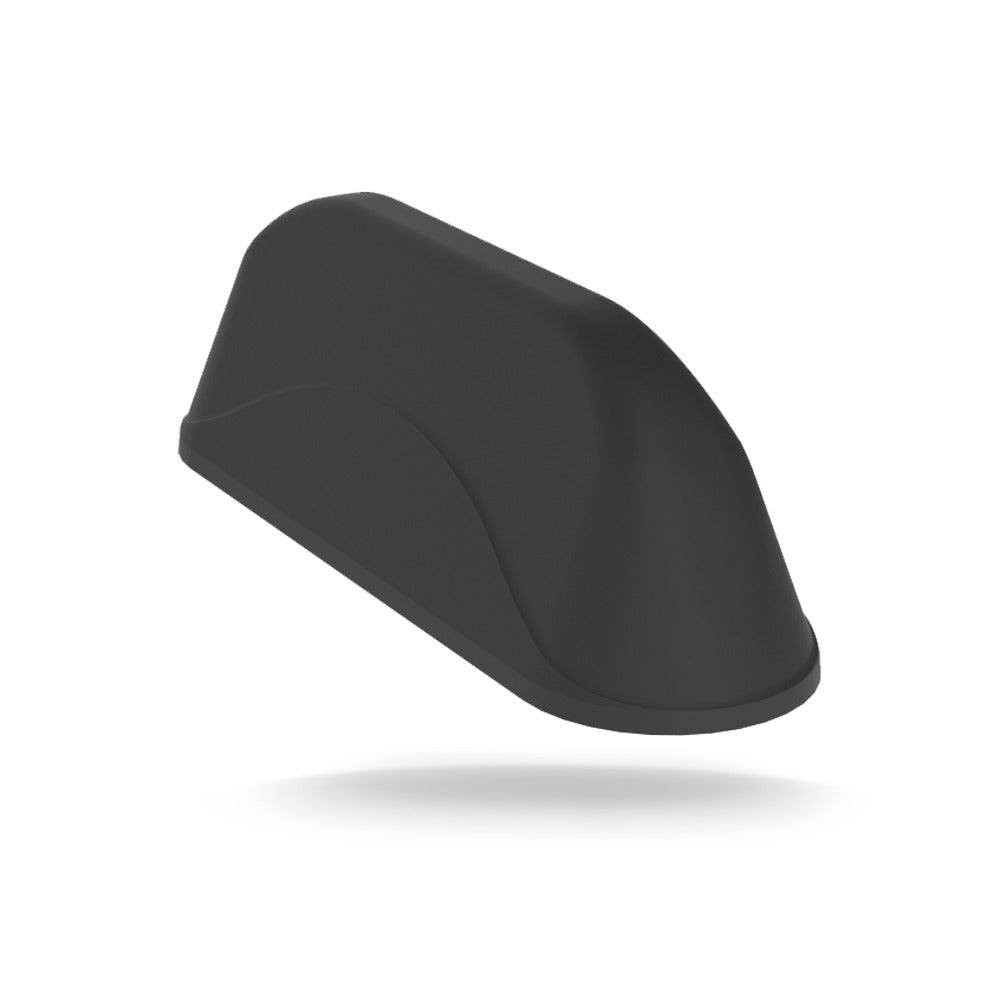

PANORAMA 2x2 Multifunction MiMo Antenna 4G/5G LTE 698-3800MHz 2x2 MiMo WiFi 2.4/5.0GHz Low profile fin design

PANORAMA 2x2 Multifunction MiMo Antenna 4G/5G LTE 698-3800MHz 2x2 MiMo WiFi 2.4/5.0GHz Low profile fin design

$170.00
$170.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

PANORAMA 2x2 Multifunction MiMo Antenna 4G/5G LTE 698-3800MHz 2x2 MiMo WiFi 2.4/5.0GHz Low profile fin design


  • PANORAMA 2x2 Multifunction MiMo Antenna 4G/5G LTE 698-3800MHz 2x2 MiMo WiFi 2.4/5.0GHz Low profile fin design
  • This high-performance antenna offers multiple antenna functions for applications where a cost-effective, efficient and robust antenna is essential. It is ideal for vending machines, payment terminals and other M2M applications.
  • The L[G]AM consists of a 2×2 MiMo function for 2G/3G/4G/5G covering 698-3800MHz, a 2×2 MiMo function for 2.4/5GHz WiFi and an optional active antenna for GPS/GLONASS/Galileo/BeiDou with 26dB gain LNA for high-quality positioning and filtering. The antenna maintains a high level of performance even when mounted on a non-metallic surface.
  • Cradlepoint Approved for S700, IBR600 Series
  • Compact low profile MiMo LTE antenna
  • 1x or 2×2 MiMo dual-band WiFi
  • Optional GNSS version available
  • High performance in a distinctive design
  • Covers all 2G/3G/4G/5G LTE cellular band
  • Dual-band 2.4/5GHz WiFi
  • Weatherproof IP66 Certified design
  • Single hole mount with a small footprint
  • Static M2M & loT devices
  • Remote monitoring
  • Smart metering
  • Vending machines
  • ELECTRICAL DATA
  • Pattern Omnidirectional
  • Max Input Power(W) 25
  • Frequency Range | Gain 698 – 960MHz | 2dBi; 1710 – 3800MHz | 5dBi
  • Cellular LTE Elements 2 x 2 MIMO
  • WIFI Elements 2 x 2 MIMO; No
  • UHF Elements No
  • GPS DATA
  • GPS Frequency Range 1562-1612MHz
  • LNA GAIN (dB) 26
  • Number of GPS Elements 1 Module; No
  • MECHANICAL DATA
  • Colour Black
  • Operating Temperature -40°/ +80°C (-40.0°/ +176.0°F)
  • CABLE DATA
  • Cable Length – LTE 3 (m) | 9.84 (ft)
  • Cable length – GPS 3 (m) | 9.84 (ft)
  • Cable Length – WIFI 3 (m) | 9.84 (ft)
  • Cable Type (LTE) RG174
  • Cable Type (GPS) RG174
  • Cable Type (WIFI) RG174
  • TERMINATION DATA
  • Connector (WIFI) SMA Rev Pol; FAKRA I
  • Connector (GPS) SMA (m); FAKRA C
  • Connector (LTE) SMA (m); FAKRA D
  • MOUNTING DATA
  • Mounting Type Fixed Panel
  • Mounting Methods Panel
  • APPROVALS DATA
  • IP Rating IP66
  • TECHNOLOGY DATA
  • Technology GPS; WIFI MIMO; 4G/5G; WIFI; 5G; 2G/3G; 2G/3
