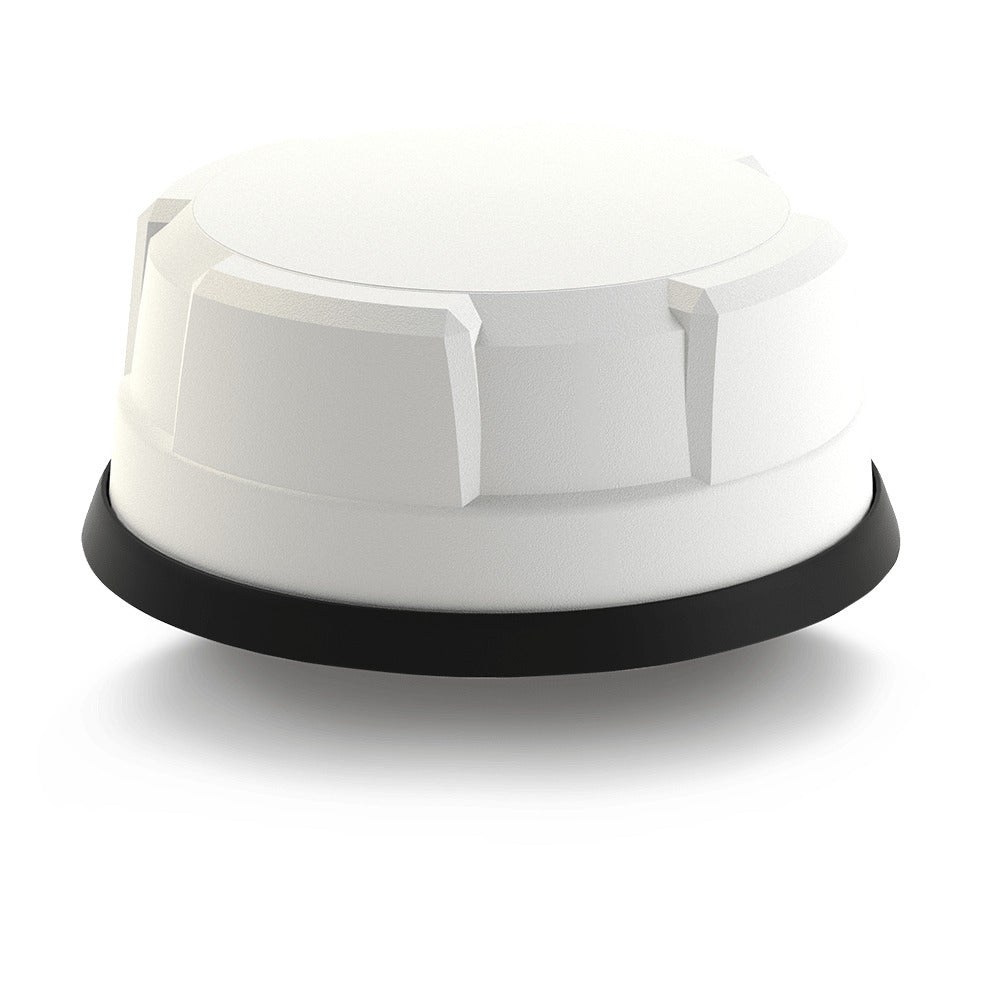

• PANORAMA 7 -in-1 5G DOME Antenna White, 4×4 MiMo 4G/5G, up to 6×6 MiMo WiFi, optional GPS/GNSS Vehicle Ant,SMA (m) 617-960/1710-6000MHz, IK10, IP69K
1 1

PANORAMA

PANORAMA 7 -in-1 5G DOME Antenna White, 44 MiMo 4G/5G, up to 66 MiMo WiFi, optional GPS/GNSS Vehicle Ant,SMA (m) 617-960/1710-6000MHz, IK10, IP69K

PANORAMA 7 -in-1 5G DOME Antenna White, 44 MiMo 4G/5G, up to 66 MiMo WiFi, optional GPS/GNSS Vehicle Ant,SMA (m) 617-960/1710-6000MHz, IK10, IP69K

$990.00
$990.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

PANORAMA 7 -in-1 5G DOME Antenna White, 4×4 MiMo 4G/5G, up to 6×6 MiMo WiFi, optional GPS/GNSS Vehicle Ant,SMA (m) 617-960/1710-6000MHz, IK10, IP69K


  • PANORAMA 7-in-1 5G DOME Antenna White, 4×4 MiMo 4G/5G, up to 6×6 MiMo WiFi, optional GPS/GNSS Vehicle Ant,SMA (m) 617-960/1710-6000MHz, IK10, IP69K(loose 5m cables)
  • The MAKO® 5G Dome is a range of high-performance 4×4 MiMo antennas covering 617-960/1710-6000MHz with optional GPS/GNSS and optional 2×2, 3×3 or 4×4, or 6×6 MiMo/Diversity at 2.4/5.0/7.2GHz.
  • The MAKO® 5G Dome consists of up to 11 elements; four isolated high-performance antenna elements covering 617-960/1710-6000MHz offer MiMo/Diversity at cellular/LTE frequencies, up to 6 optional dual band elements covering 2.4 & 5.0/7.2GHz support MiMo/Diversity operation for WiFi and optional high-performance GPS/GNSS antenna with an integrated 26dB gain LNA and high-quality filtering offers unparalleled positioning accuracy. None of the antennas in this range require a metallic ground plane, and all maintain a high level of performance even when mounted on non-metallic surfaces.
  • Designed for latest generation LTE Cat 18/20 routers and devices
  • Low profile antenna with up to 11 functions in 1
  • 4×4 MiMo 4G/5G LTE cellular, Optional GPS/GNSS & optional MiMo 2.4/7.2GHz in one housing
  • Kits with extension cables available for a range of LTE routers
  • Flame retardant cables compliant to UNECE R118
  • Pre-terminated antenna connectors fitted as standard
  • Cable flags attached for easy cable identification and installation
  • Extension cable available upon request
  • Single Hole Panel Mount Installation
  • Suitable for FirstNet (USA) and ESN (UK) Public Safety Networks
  • Ground Plane Independent | Suitable for Conductive or Non-Conductive Surfaces
  • ELECTRICAL DATA
  • Pattern Omnidirectional
  • Max Input Power(W) 10
  • Frequency Range | Gain 617 – 960MHz | 4dBi; 1710 – 3800MHz | 8dBi; 4900 – 6000MHz | 9dBi
  • Cellular LTE Elements 4 x 4 MIMO
  • WIFI Elements No; 2 x 2 MIMO; 4 x 4 MIMO; 6 x 6 MIMO; 5 x 5 MIMO; 3 x 3 MIMO
  • UHF Elements No
  • GPS DATA
  • GPS Frequency Range 1562-1612MHz
  • LNA GAIN (dB) 26
  • Number of GPS Elements 1 Module; No
  • MECHANICAL DATA
  • Colour Black; White
  • Height 80 (mm) | 3.15 (in)
  • Diameter 180 (mm) | 7.09 (in)
  • Operating Temperature -40°/ +80°C (-40.0°/ +176.0°F)
  • CABLE DATA
  • Cable Length – LTE min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
  • Cable length – GPS min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
  • Cable Length – WIFI min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
  • Cable Type (LTE) FR RG174; RG174
  • Cable Type (GPS) FR RG174
  • Cable Type (WIFI) FR RG174; RG174
  • Quantity of Cell Cable 4
  • Quantity of GPS/GNSS Extension 1
  • Quantity of WIFI Extension max: 6
  • TERMINATION DATA
  • Connector (WIFI) Reverse Polarity SMA; FAKRA I; SMA (f)
  • Connector (GPS) SMA (m); FAKRA C; FME (f)
  • Connector (LTE) SMA (m); FAKRA D; N (f)
  • MOUNTING DATA
  • Mounting Type Fixed Panel
  • Mounting Type Temp Magnetic
  • Mounting Methods Magnetic; Panel
  • APPROVALS DATA
  • IP Rating IK10; IP69K
  • Cable Flammability EN45545-2 HL3; UN ECE R118; EN6722
  • TECHNOLOGY DATA
  • Technology GPS; 4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready; FirstNet; GNSS; WIFI MIMO; WIFI
  • LG-IN2445-W-LC White 4 x 4 MIMO 1 Module 2 x 2 MIMO
  • 5m 5m 5m
  • SMA (m) SMA (m) Reverse Polarity SMA
  • Cables Loose Cables Loose Cables Loose
