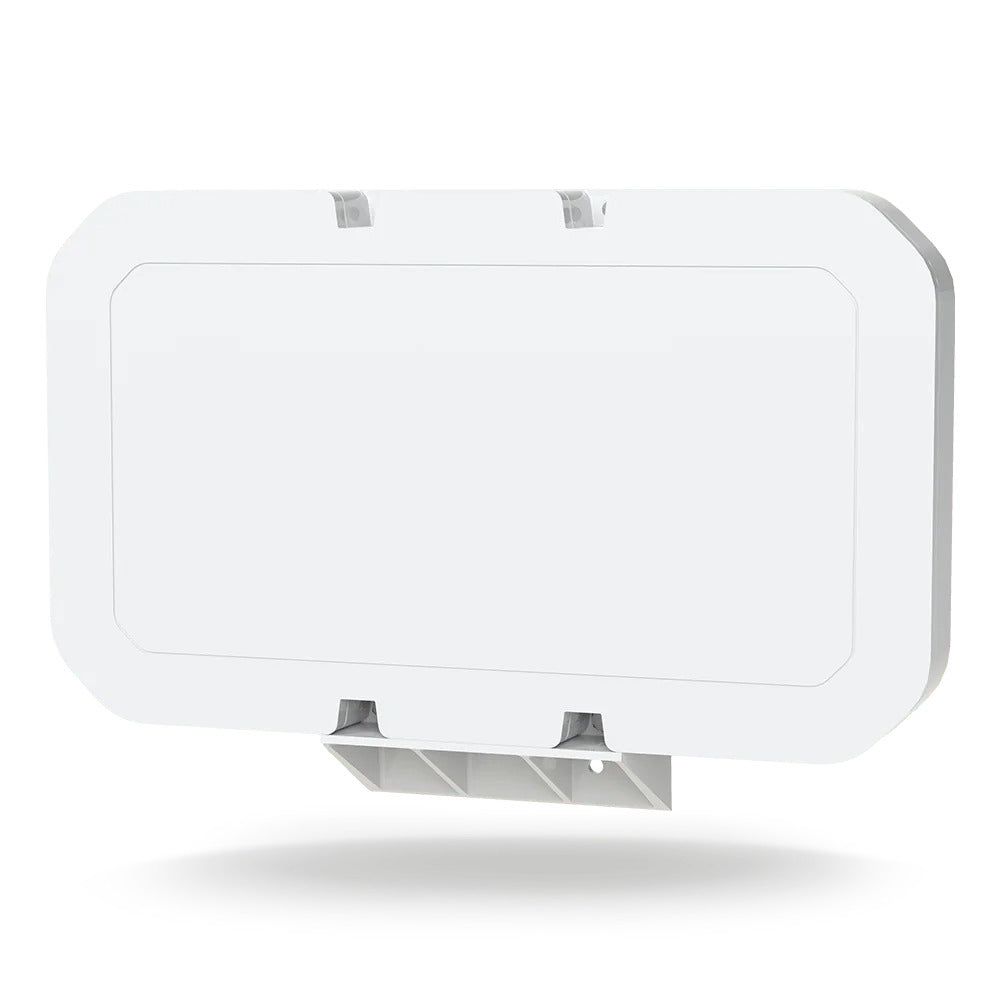

PANORAMA 4×4 MiMo Omnidirectional Antenna, 4G/5G LTE Ready, WALL, DESK, MOUNT, 617-6000MHz, 5m SMA(m), IP66 rated


  • PANORAMA 4×4 MiMo Omnidirectional Antenna, 4G/5G LTE Ready, WALL, DESK, MOUNT, 617-6000MHz, 5m SMA(m), IP66 rated
  • The DWMM4[G]-6-60 Antenna Provides a 4x4 MiMo Solution for Global 4G/5G Networks from 617-6000MHz. Incorporating four separately fed ultra wideband elements in a single housing the DWMM4[G] is suitable for a huge range of fixed site and failover applications. The supplied mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast mounting using the supplied clamps.
  • The antenna can also be mounted with screws directly to non-conductive panels or internal walls or stood on a desk using supplied mounting feet. The omnidirectional radiation pattern allows easy placement of the antenna without requiring directional alignment. The DWMM4G type is supplied with an integrated GPS/GNSS module with 26dB LNA gain and advanced filtering to combat noise.
  • The antenna is fitted with an integrated flame retardant CS32 cable (FR CS29 for GPS/GNSS) which minimises exposed connector joints and simplifies cable management for easy installation.
  • Suitable for Indoor or Outdoor Use
  • Branch Office & Enterprise
  • Failover
  • ELECTRICAL DATA
  • Max Input Power(W) 10
  • Cellular LTE Elements 4 x 4 MIMO
  • WIFI Elements No
  • UHF Elements No
  • GPS DATA
  • LNA GAIN (dB) 26
  • Number of GPS Elements No; 1 Module
  • MECHANICAL DATA
  • Colour White
  • Length 371 (mm) | 14.61 (in)
  • Width 40 (mm) | 1.57 (in)
  • Height 221 (mm) | 8.70 (in)
  • Operating Temperature -40°/ +80°C (-40.0°/ +176.0°F)
  • TERMINATION DATA
  • Connector (GPS) SMA (m); FAKRA C; N (m); N (f)
  • Connector (LTE) SMA (m); N (f); FAKRA D; N (m)
  • MOUNTING DATA
  • Mounting Type Fixed Desk; Mast; Wall
  • Mounting Methods Desk; Mast; Wall; Pole
  • APPROVALS DATA
  • IP Rating IP66
  • TECHNOLOGY DATA
  • Technology 4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready; GPS; GNSS
