• PANORAMA 2x2 Mount MiMo Portable Antenna 4G/5G Desk, Window or Wall Mount Antenna, 617-960 / 1710-6000MHz, SMA (m), Band71 Ready
1 1

PANORAMA

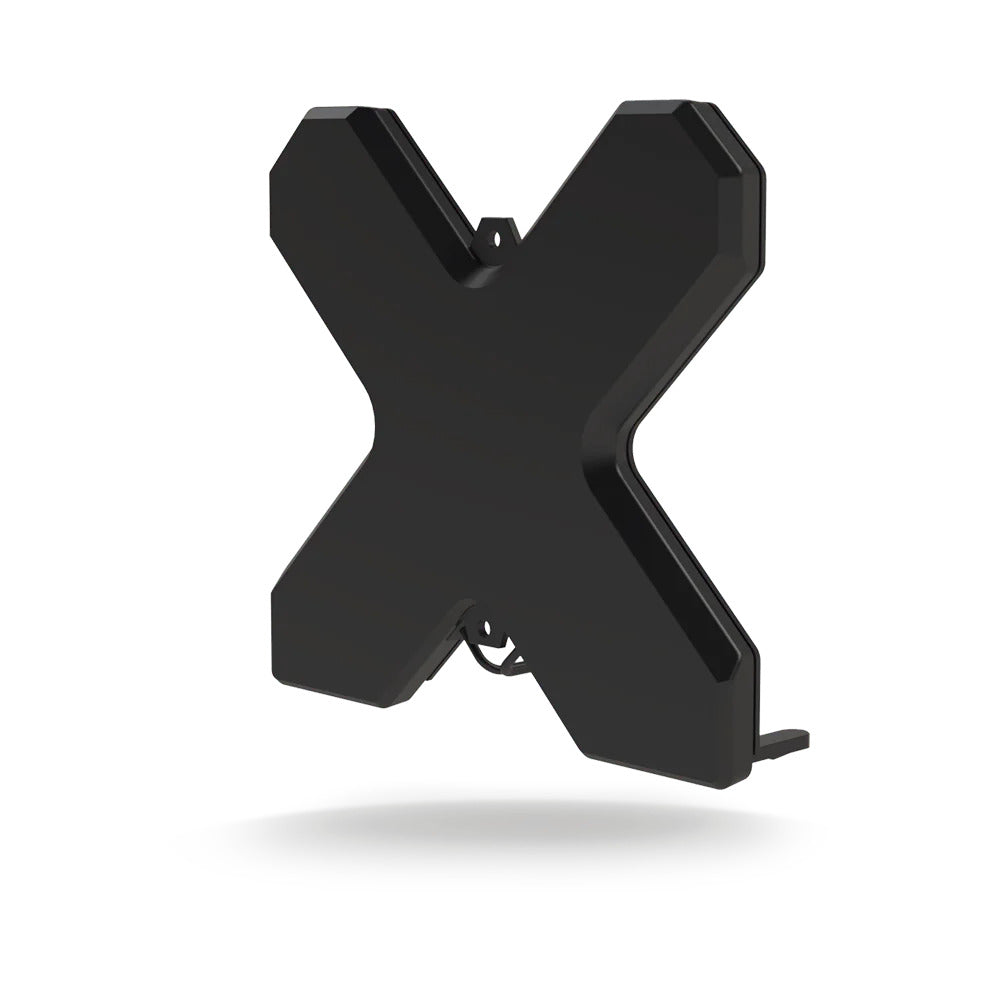

PANORAMA 2x2 Mount MiMo Portable Antenna 4G/5G Desk, Window or Wall Mount Antenna, 617-960 / 1710-6000MHz, SMA (m), Band71 Ready

PANORAMA 2x2 Mount MiMo Portable Antenna 4G/5G Desk, Window or Wall Mount Antenna, 617-960 / 1710-6000MHz, SMA (m), Band71 Ready

$98.00
$98.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

PANORAMA 2x2 Mount MiMo Portable Antenna 4G/5G Desk, Window or Wall Mount Antenna, 617-960 / 1710-6000MHz, SMA (m), Band71 Ready


  • PANORAMA 2x2 Mount MiMo Portable Antenna 4G/5G Desk, Window or Wall Mount Antenna, 617-960 / 1710-6000MHz, SMA (m), Band71 Ready
  • The DMM portable antenna is an innovative antenna design which provides 2×2 MiMo function for 4G/5G with fallback to 3G/2G.Incorporating two separately fed, ultra wideband elements in a single housing, the DMM is equipped to provide portable MiMo and diversity function for frequencies from 617-960/1710-6000MHz to cover global LTE and 5G sub mmWave bands. A handy suction window mount enables users to optimise their signal by antenna position, with instant installation and easy removal. For more permanent use, screw and adhesive pad mounting options are also provided. The antenna is supplied with 2 metres (6’) of twinned coaxial cable with the option of SMA or TS9 plug connectors.The DMM is a cost effective, value added product for network operators and service providers, helping to provide a stable connection with improved data rates for subscribers, thereby improving satisfaction and retention.
  • Cradlepoint Approved for S700, IBR600C, E100/E102 Series
  • The ideal loT antenna
  • Multiple mounting options
  • Integrated coax with connector terminations
  • ELECTRICAL DATA
  • Pattern Omnidirectional
  • Max Input Power(W) 20
  • Frequency Range | Gain 617 – 960MHz | 3dBi; 1427 – 2700MHz | 5dBi; 3400 – 6000MHz | 6dBi
  • Cellular LTE Elements 2 x 2 MIMO
  • WIFI Elements No
  • UHF Elements No
  • GPS DATA
  • Number of GPS Elements No
  • MECHANICAL DATA
  • Colour Black
  • Length 16 (mm) | 0.63 (in)
  • Width 184.6 (mm) | 7.27 (in)
  • Height 176.3 (mm) | 6.94 (in)
  • Operating Temperature -40°/ +80°C (-40.0°/ +176.0°F)
  • CABLE DATA
  • Cable Length – LTE min: 0.5 (m) | 1.64 (ft); max: 2 (m) | 6.56 (ft)
  • Cable Type (LTE) RG174
  • TERMINATION DATA
  • Connector (LTE) SMA (m); TS9 (m)
  • MOUNTING DATA
  • Mounting Type Fixed Desk
  • Mounting Type Temp Glass Mount
  • Mounting Methods Desk; Glass Mount
  • TECHNOLOGY DATA
  • Technology 4G/5G; 5G; 2G/3G; 2G/3G
