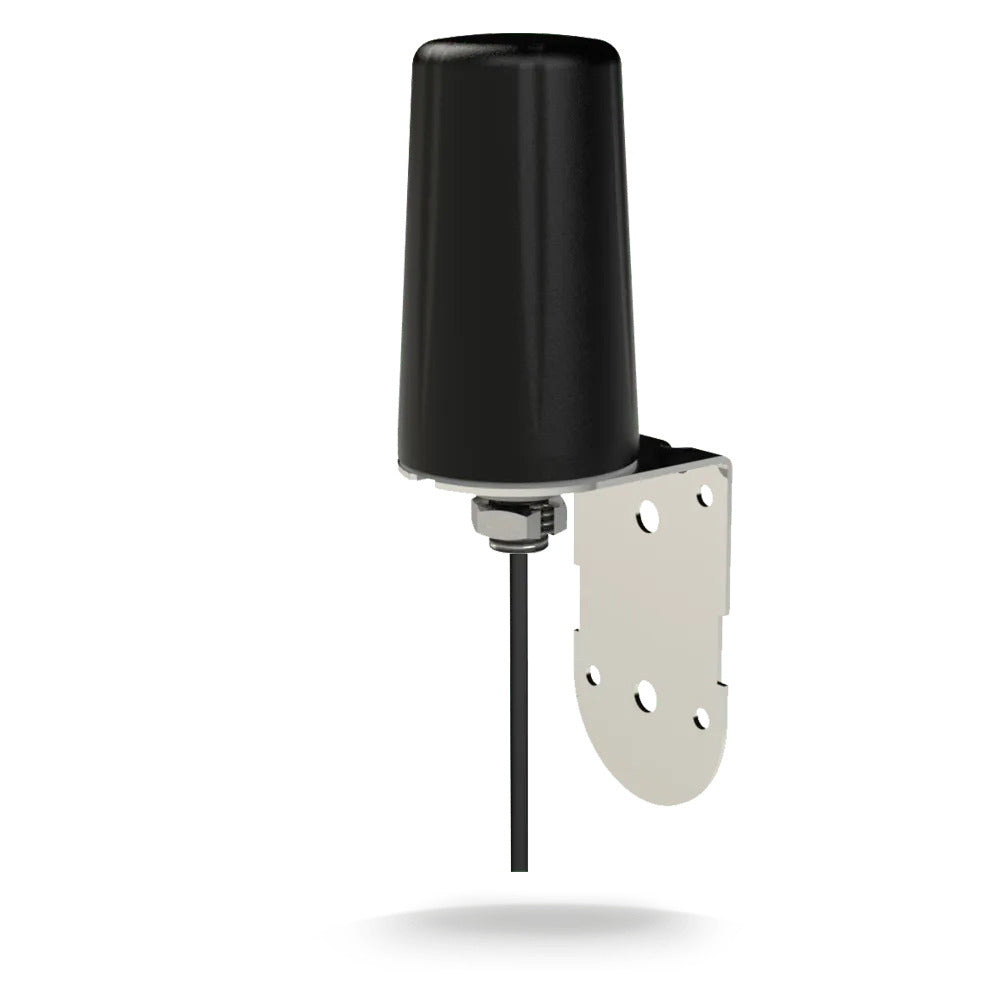

PANORAMA BRACKET MOUNT ANTENNA 617-960/1710-6000MHz 5m SMA(m) Wall, Mast or Panel Mount, 4G/5G LTE Covering 600-6000MHz

PANORAMA BRACKET MOUNT ANTENNA 617-960/1710-6000MHz 5m SMA(m) Wall, Mast or Panel Mount, 4G/5G LTE Covering 600-6000MHz

$67.00
$67.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

PANORAMA BRACKET MOUNT ANTENNA 617-960/1710-6000MHz 5m SMA(m) Wall, Mast or Panel Mount, 4G/5G LTE Covering 600-6000MHz


  • PANORAMA BRACKET MOUNT ANTENNA 617-960/1710-6000MHz 5m SMA(m) Wall, Mast or Panel Mount, 4G/5G LTE Covering 600-6000MHz
  • The Panorama B4BE is a robust bracket mount antenna for LTE, M2M, and IoT applications.
  • The B4BE range has been designed to provide cost-effective coverage booster antennas for 2G/3G/4G and 5G devices. The antennas are designed for wall or mast mounting and are weatherproof which allows the device to reap the benefits of an antenna mounted in an elevated or external location where the signal is strongest. The Omni-directional radiation pattern allows the antenna to be quickly installed while the global Cellular/GSM/LTE coverage provided by the antenna allows it to be utilised for 2G/3G & 4G applications the world over.
  • Integrated Low Loss Cable
  • 5dBi Peak Gain Performance
  • UV Stable & IP Rated
  • ELECTRICAL DATA
  • Pattern Omnidirectional
  • Max Input Power(W) 30
  • Frequency Range | Gain 617 – 960MHz | 2dBi; 1710 – 2700MHz | 3.5dBi; 3400 – 3800MHz | 5dBi
  • Operating Temperature -40°/ +80°C (-40.0°/ +176.0°F); -40°/ +85°C (-40.0°/ +185.0°F)
  • Cellular LTE Elements SiSo
  • WIFI Elements No
  • UHF Elements No
  • GPS DATA
  • Number of GPS Elements No
  • Cable Type (LTE) CS29
  • Connector (LTE) SMA (m)
  • IP Rating IP66
  • Material Flammability UL746C F2, UL 94-HB
  • Technology 4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready
