• PANORAMA 4x4 MiMo 4G/5G Desk Mount MiMo Antenna – Portable Antenna, Window or Wall Mount Antenna, 617-960 / 1710-6000MHz, SMA (m), Band71 Ready
1 1

PANORAMA

PANORAMA 4x4 MiMo 4G/5G Desk Mount MiMo Antenna Portable Antenna, Window or Wall Mount Antenna, 617-960 / 1710-6000MHz, SMA (m), Band71 Ready

PANORAMA 4x4 MiMo 4G/5G Desk Mount MiMo Antenna Portable Antenna, Window or Wall Mount Antenna, 617-960 / 1710-6000MHz, SMA (m), Band71 Ready

$230.00
$230.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

PANORAMA 4x4 MiMo 4G/5G Desk Mount MiMo Antenna – Portable Antenna, Window or Wall Mount Antenna, 617-960 / 1710-6000MHz, SMA (m), Band71 Ready


  • PANORAMA 4x4 MiMo 4G/5G Desk Mount MiMo Antenna – Portable Antenna, Window or Wall Mount Antenna, 617-960 / 1710-6000MHz, SMA (m), Band71 Ready

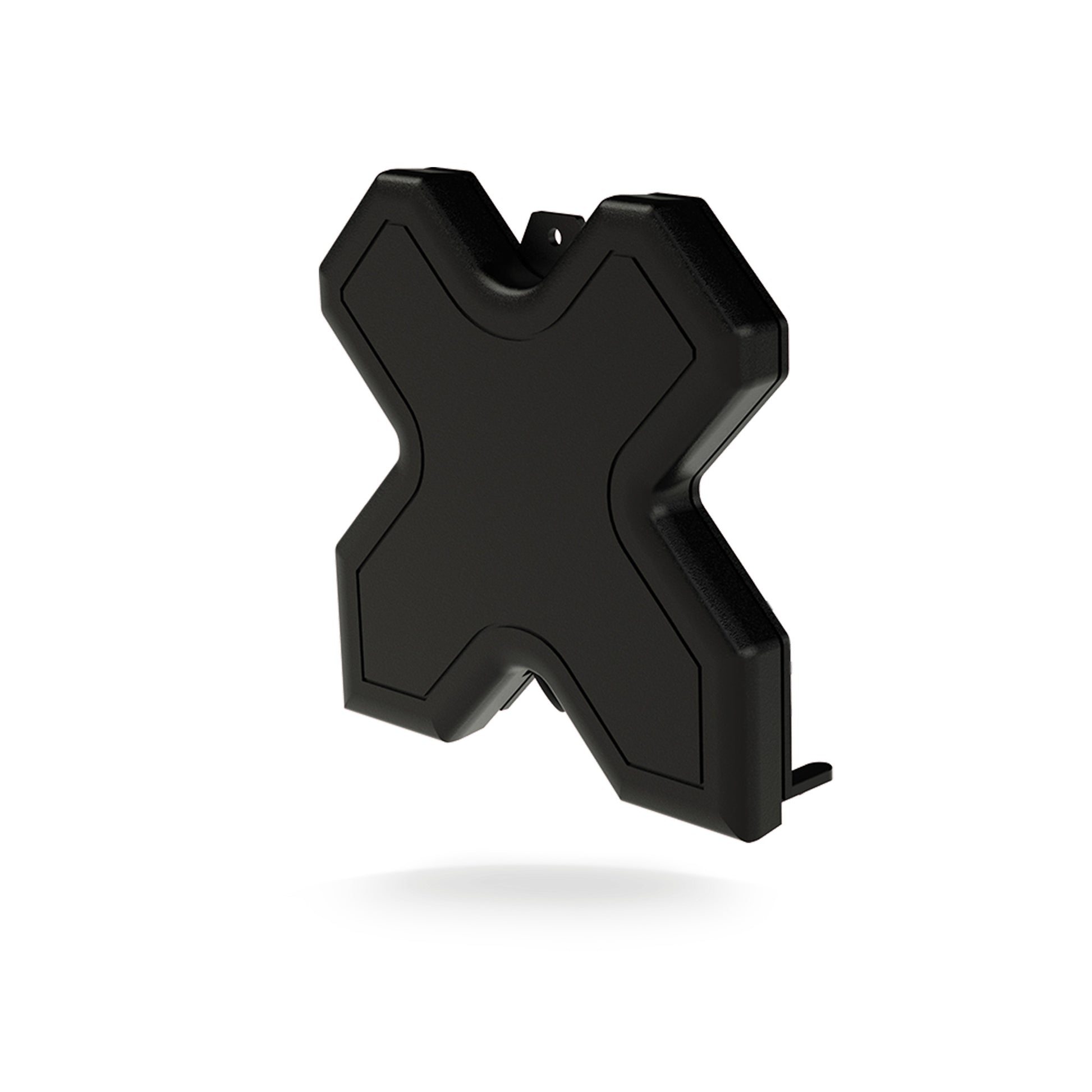

  • The DMM4 portable antenna is an innovative antenna design which provides 4×4 MiMo function for 4G/5G with fallback to 3G/2G. The DMM4 antenna is a future proof solution for Cat 18/20 4G and 5G devices. Incorporating four separately fed, ultra wide band elements for 617-960/1710- 6000MHz in a single housing, the DMM4 provides a 4×4 MiMo function. It can also provide 2x 2×2 MiMo function for a router with dual modems, each requiring a 2×2 antenna system. The DMM4 is highly portable and features desk mount feet which fold out for use, and flat for transport. A suction window mount enables the user to optimise their signal in multiple locations, with instant installation and easy removal. For more permanent use, screw and adhesive pad mounting options are also provided. The antenna is supplied with two twinned 2m (6’) length coaxial cables, with the option of SMA, TS9 or FAKRA D connectors. The DMM4 is a cost eff ective value added product for network operators and service providers ensuring a stable link with improved data rates for subscribers, thereby improving satisfaction and retention.
  • ELECTRICAL DATA
  • Pattern Omnidirectional
  • Max Input Power(W) 2
  • Typical VSWR 2.5:1
  • Frequency Range | Gain 617 – 960MHz | 2dBi; 1427 – 2700MHz | 4dBi; 2700 – 6000MHz | 5dBi
  • Cellular LTE Elements 4 x 4 MIMO
  • WIFI Elements No
  • UHF Elements No
  • GPS DATA
  • Number of GPS Elements No
  • MECHANICAL DATA
  • Colour Black
  • Length 23 (mm) | 0.91 (in)
  • Width max: 185 (mm) | 7.28 (in)
  • Height max: 185 (mm) | 7.28 (in)
  • Operating Temperature -40°/ +80°C (-40.0°/ +176.0°F)
  • CABLE DATA
  • Cable Length – LTE 2 (m) | 6.56 (ft)
  • Cable Type (LTE) RG174
  • TERMINATION DATA
  • Connector (LTE) SMA (m); FAKRA D; TS9 (m)
  • MOUNTING DATA
  • Mounting Type Fixed Desk; Wall
  • Mounting Type Temp Hook/Loop or Adhesive
  • Mounting Methods Desk; Hook/Loop or Adhesive; Wall
  • TECHNOLOGY DATA
  • Technology 4G/5G; 5G; CBRS; 2G/3G/4G; Band 71 600MHz ready
