• Alloy SCR460SC-1 RS-232/422/485 Serial DB-9 to Multimode Fibre Converter. Max. range 2Km
1 1

Alloy

Alloy SCR460SC-1 RS-232/422/485 Serial DB-9 to Multimode Fibre Converter. Max. range 2Km

Alloy SCR460SC-1 RS-232/422/485 Serial DB-9 to Multimode Fibre Converter. Max. range 2Km

$363.00
$363.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

Alloy SCR460SC-1 RS-232/422/485 Serial DB-9 to Multimode Fibre Converter. Max. range 2Km

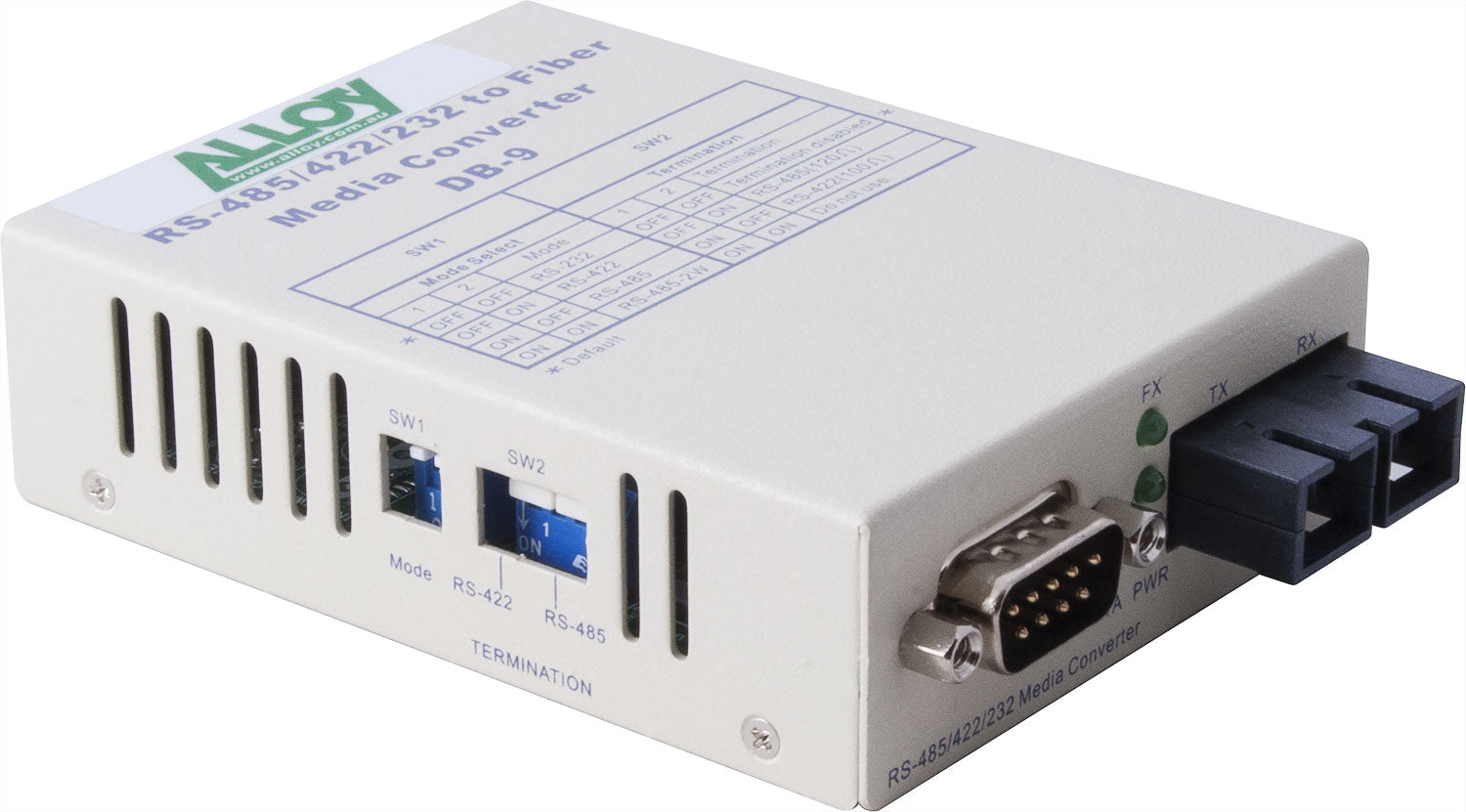

  • Alloy SCR460SC-1 Serial to Fibre Standalone/Rack Converter
  • The SCR460SC-1, an SCR Series Media Converter, is used standalone or installed in a DCR12 Series Converter Chassis. This RS232/422/485 Serial to Fibre Converter has a DB-9 port and a SC terminated multimode fibre port with a range of up to 2Km.
  • The SCR460SC-1 is a dual purpose Serial over Fibre Media Converter. It can be used as a standalone device, or can be installed as a Media Converter Module into any Alloy DCR12 Series 12-slot Media Converter Rackmount Chassis. The SCR460SC-1 has one triple mode circuit RS-232/RS-422/RS-485 Serial DB-9 copper port and an SC terminated multimode fibre port, enabling the Converter to extend data and control signaling over a fibre cable segment up to a maximum range of 2 kilometres. With auto baud rate (up to 460.8K) and direction control functions, the Converter automatically detects serial signal characteristics to operate automatically in RS-232, RS-422 or RS-485 mode.
  • Features:
  • SCR460SC-1 Converter: RS-232/422/485 DB-9 serial (DB-9) to serial over multimode fibre (SC) - 2Km range
  • SCR Series Converters for all types of serial over fibre media conversion - up to 20Km range
  • DB-9 or Terminal Block options for copper serial cabling, ST or SC fibre connectors
  • Triple mode circuit support for Plug-and-play RS-232triple mode circuit RS-232/RS-422/RS-485, RS-422 or RS-485
  • Auto baud rate (up to 460.8K) and Direction Control functions
  • High EMI and EMS immunity
  • Dual Purpose ACR Series - use 'standalone' or install in a DCR12 Series Media Converter Chassis
  • Easy 'Slide-in, Hot Swap' installation into DCR12 Media Converter Chassis systems
  • Compact, rugged all-metal case
