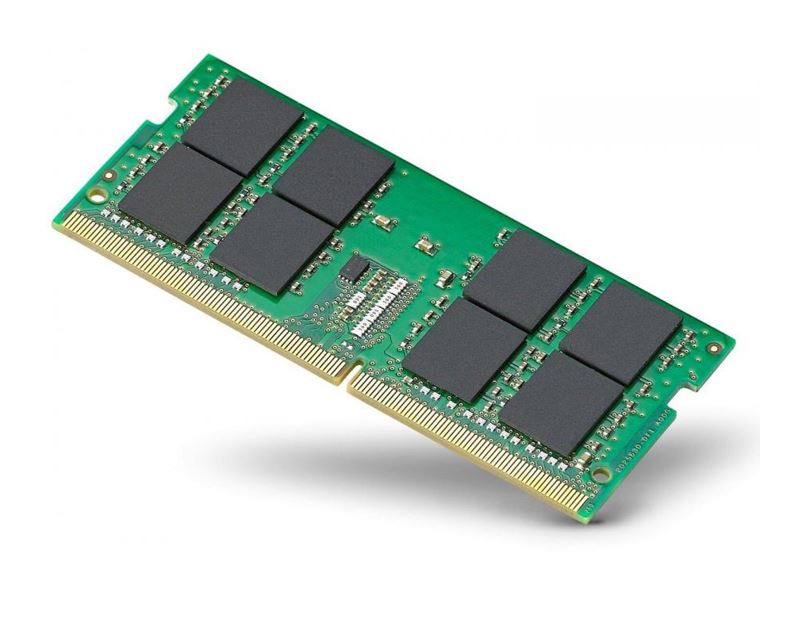

• Kingston 16GB (1x16GB) DDR4 SODIMM 3200MHz CL22 2Rx8 ValueRAM Notebook Laptop Memory DRAMCL22 260-Pin SODIMM
1 1

Kingston

Kingston 16GB (1x16GB) DDR4 SODIMM 3200MHz CL22 2Rx8 ValueRAM Notebook Laptop Memory DRAMCL22 260-Pin SODIMM

Kingston 16GB (1x16GB) DDR4 SODIMM 3200MHz CL22 2Rx8 ValueRAM Notebook Laptop Memory DRAMCL22 260-Pin SODIMM

$208.00
$208.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

Kingston 16GB (1x16GB) DDR4 SODIMM 3200MHz CL22 2Rx8 ValueRAM Notebook Laptop Memory DRAMCL22 260-Pin SODIMM


  • Kingston 16GB (1x16GB) DDR4 SODIMM 3200MHz CL22 2Rx8 ValueRAM Notebook Laptop Memory DRAM CL22 260-Pin SODIMM
  • This document describes ValueRAM's KVR32S22D8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, non-ECC, memory module, based on sixteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
  • Features:
  • Power Supply: VDD = 1.2V Typical
  • VDDQ = 1.2V Typical
  • VPP = 2.5V Typical
  • VDDSPD = 2.2V to 3.6V
  • Nominal and dynamic on-die termination (ODT) for
  • data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Dual-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • 16 internal banks; 4 groups of 4 banks each
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8
  • via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology
  • Terminated control command and address bus
  • PCB: Height 1.18' (30.00mm)
  • RoHS Compliant and Halogen-Free
