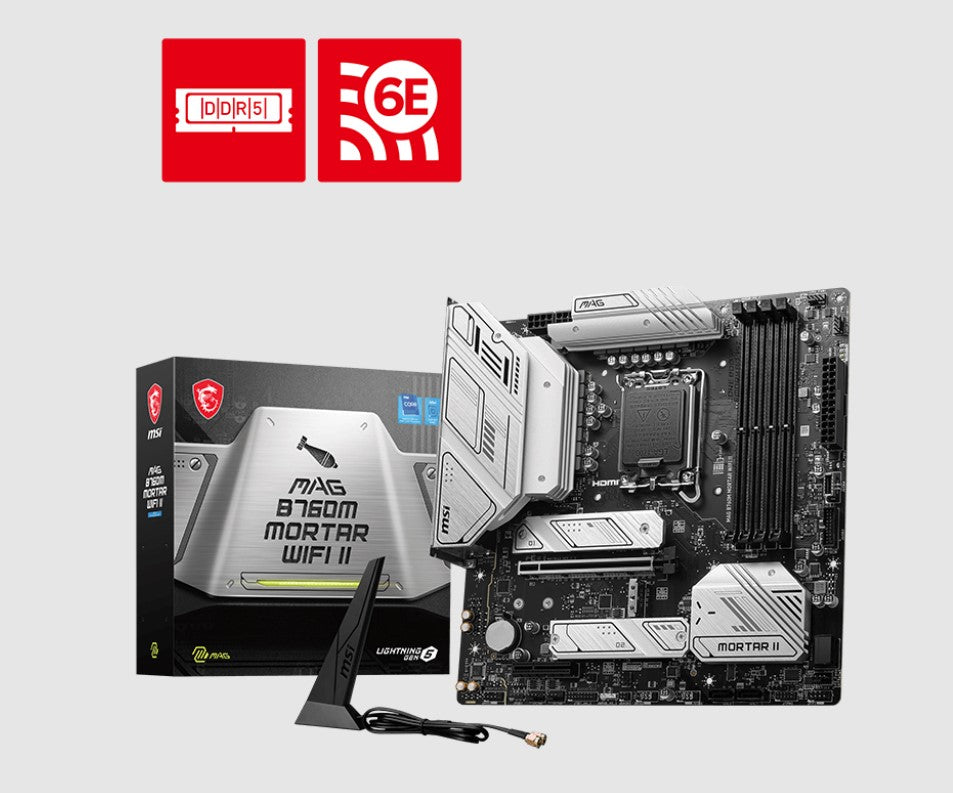

• MSI PRO B760M MORTAR WIFI II mATX Motherboard, 4x DDR5~256GB, 1x PCI-E x 16, 1x PCI-E x 4, 3x M.2, 4x SATA, 8x USB 2.0, Wi-Fi 6E
1 1

MSI

MSI PRO B760M MORTAR WIFI II mATX Motherboard, 4x DDR5~256GB, 1x PCI-E x 16, 1x PCI-E x 4, 3x M.2, 4x SATA, 8x USB 2.0, Wi-Fi 6E

MSI PRO B760M MORTAR WIFI II mATX Motherboard, 4x DDR5~256GB, 1x PCI-E x 16, 1x PCI-E x 4, 3x M.2, 4x SATA, 8x USB 2.0, Wi-Fi 6E

$428.00
$428.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

MSI PRO B760M MORTAR WIFI II mATX Motherboard, 4x DDR5~256GB, 1x PCI-E x 16, 1x PCI-E x 4, 3x M.2, 4x SATA, 8x USB 2.0, Wi-Fi 6E


  • MSI PRO B760M MORTAR WIFI II mATX Motherboard, 4x DDR5~256GB, 1x PCI-E x 16, 1x PCI-E x 4, 3x M.2, 4x SATA, 8x USB 2.0, Wi-Fi 6E
  • Specifications:
  • CHIPSET INTEL B760
  • CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
  • LGA 1700
  • MEMORY 4x DDR5, Maximum Memory Capacity 192GB
  • Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
  • ONBOARD GRAPHICS
  • 1x HDMI™
  • Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
  • 1x DisplayPort
  • Support DP 1.4, maximum resolution of 4K 60Hz*
  • Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
  • EXPANSION SLOT
  • 1x PCI-E x16 slot
  • 1x PCI-E x4 slot
  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
  • STORAGE
  • 3x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
  • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
  • 4x SATA 6G
  • USB
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 3.2 Gen1 Type A (Front)
  • 3x USB 3.2 Gen2 Type A (Rear)
  • 1x USB 3.2 Gen2 Type C (Front)
  • 1x USB 3.2 Gen2x2 Type C (Rear)
  • INTERNAL I/O
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 4x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x TBT connector (JTBT, supports RTD3)
  • 1x Tuning Controller connector(JDASH)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports
  • 1x
  • WIRELESS LAN & BLUETOOTH Intel® Wi-Fi 6E
  • OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
  • PCB DIMENSION mATX 243.84mmx243.84mm
