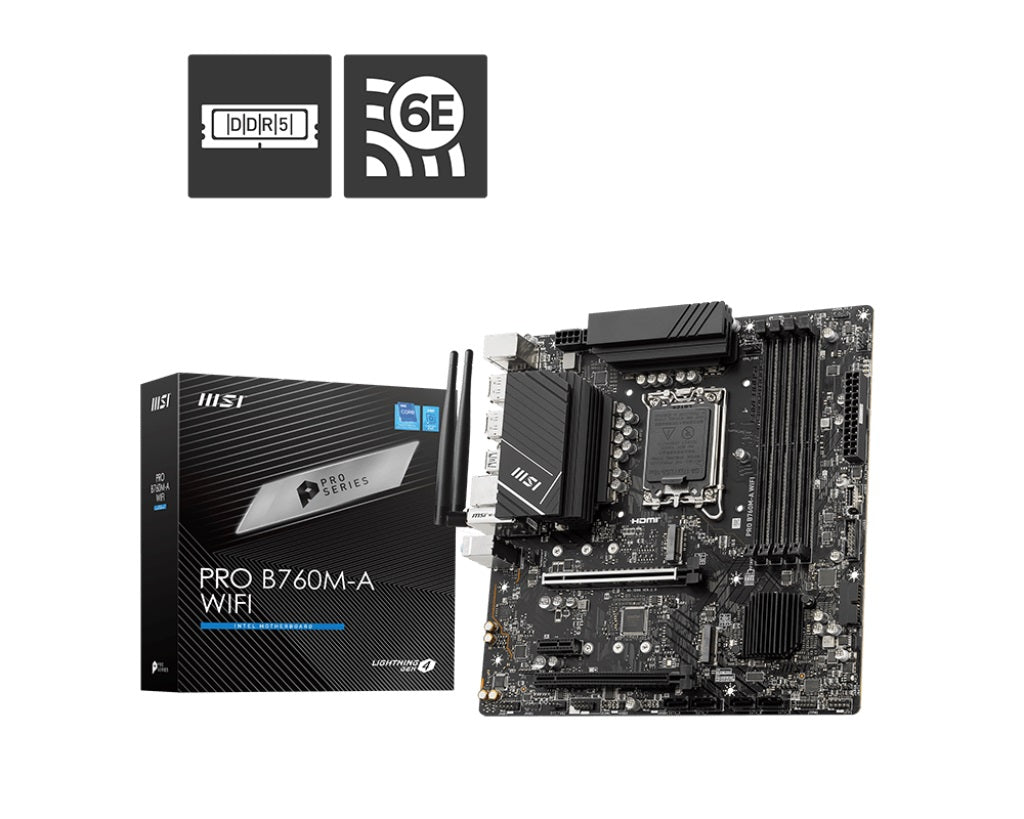

• MSI PRO B760M-A WIFI mATX Motherboard, 4x DDR5~128GB, 2x PCI-E x 16, 1x PCI-E x 1, 2x M.2, 4x SATA, 4x USB 3.2 , 2x USB 2.0
1 1

MSI

MSI PRO B760M-A WIFI mATX Motherboard, 4x DDR5~128GB, 2x PCI-E x 16, 1x PCI-E x 1, 2x M.2, 4x SATA, 4x USB 3.2 , 2x USB 2.0

MSI PRO B760M-A WIFI mATX Motherboard, 4x DDR5~128GB, 2x PCI-E x 16, 1x PCI-E x 1, 2x M.2, 4x SATA, 4x USB 3.2 , 2x USB 2.0

$356.00
$356.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

MSI PRO B760M-A WIFI mATX Motherboard, 4x DDR5~128GB, 2x PCI-E x 16, 1x PCI-E x 1, 2x M.2, 4x SATA, 4x USB 3.2 , 2x USB 2.0


  • MSI PRO B760M-A WIFI mATX Motherboard, 4x DDR5~128GB, 2x PCI-E x 16, 1x PCI-E x 1, 2x M.2, 4x SATA, 4x USB 3.2 , 2x USB 2.0
  • FEATURES:
  • Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
  • Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK and additional choke thermal pads are built for high performance system and non-stop gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thicke
  • Specifications:
  • CHIPSET INTEL B760
  • CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
  • LGA 1700
  • MEMORY
  • 4x DDR5, Maximum Memory Capacity 192GB
  • Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
  • ONBOARD GRAPHICS 2x HDMI™
  • 2x DisplayPort
  • Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
  • Support DP 1.4, maximum resolution of 4K 60Hz*
  • EXPANSION SLOT
  • 2x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
  • STORAGE 2x M.2 slot
  • M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
  • M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  • 4x SATA 6G port
  • USB 2x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 3.2 Gen1 Type A (Rear)
  • 4x USB 3.2 Gen1 Type A (Front)
  • 1x USB 3.2 Gen1 Type C (Front)
  • 2x USB 3.2 Gen2 Type A (Rear)
  • OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
  • PCB DIMENSION mATX 243.84mmx243.84mm
