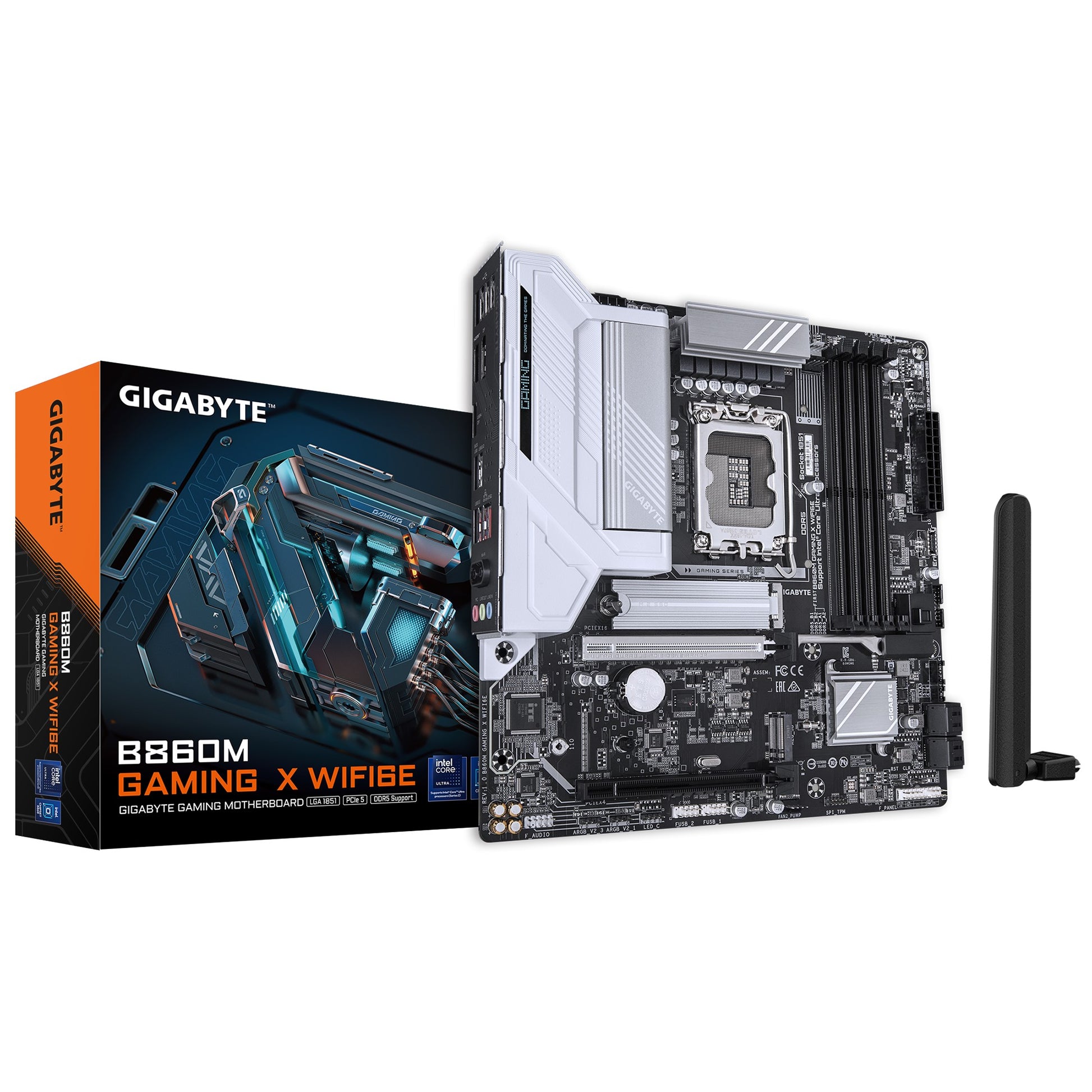

• Gigabyte M/B B860M GAMING X WIFI6E 1.0, Intel ® B860, 4 x DDR5 up to 256 GB, 1x HDMI, 2 x PCI Express x16, 2 x M.2, 4 x SATA, 6x USB 3.2
1 1

Gigabyte

Gigabyte M/B B860M GAMING X WIFI6E 1.0, Intel ® B860, 4 x DDR5 up to 256 GB, 1x HDMI, 2 x PCI Express x16, 2 x M.2, 4 x SATA, 6x USB 3.2

Gigabyte M/B B860M GAMING X WIFI6E 1.0, Intel ® B860, 4 x DDR5 up to 256 GB, 1x HDMI, 2 x PCI Express x16, 2 x M.2, 4 x SATA, 6x USB 3.2

$327.00
$327.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

Gigabyte M/B B860M GAMING X WIFI6E 1.0, Intel ® B860, 4 x DDR5 up to 256 GB, 1x HDMI, 2 x PCI Express x16, 2 x M.2, 4 x SATA, 6x USB 3.2


  • Gigabyte M/B B860M GAMING X WIFI6E 1.0, Intel ® B860, 4 x DDR5 up to 256 GB, 1x HDMI, 2 x PCI Express x16, 2 x M.2, 4 x SATA, 6x USB 3.2
  • CPU
  • LGA1851 socket: Support for Intel® Core™ Ultra Processors
  • Go to GIGABYTE's website for the latest CPU support list.)
  • L3 cache varies with CPU
  • Chipset
  • Intel® B860 Express Chipset
  • Memory
  • Support for DDR5 9200(O.C)/ 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
  • 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to 'Memory Support List' on GIGABYTE's website for more information.)
  • Onboard Graphics
  • Integrated Graphics Processor-Intel® HD Graphics support:
  • 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
  • Support for DisplayPort 2.1 version.
  • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
  • Support for DisplayPort 2.1 version.
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • Support for HDMI 2.1 version and HDCP 2.3.
  • Graphics specifications may vary depending on CPU support.)
  • Support for up to triple-display at the same time
  • LAN
  • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module
  • Intel® Wi-Fi 6E AX211 (PCB rev. 1.0/2.0)
  • Expansion Slots
  • CPU:
  • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
  • The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • Chipset:
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
  • Storage Interface
  • CPU:
  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
  • Chipset:
  • 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB)
  • 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
  • USB
  • CPU:
  • 1 x USB4® USB Type-C® port on the back panel
  • Chipset:
  • 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  • 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  • Chipset+2 USB 2.0 Hubs:
  • 9 x USB 2.0/1.1 ports (5 ports on the back panel, 4 ports available through the internal USB headers)
