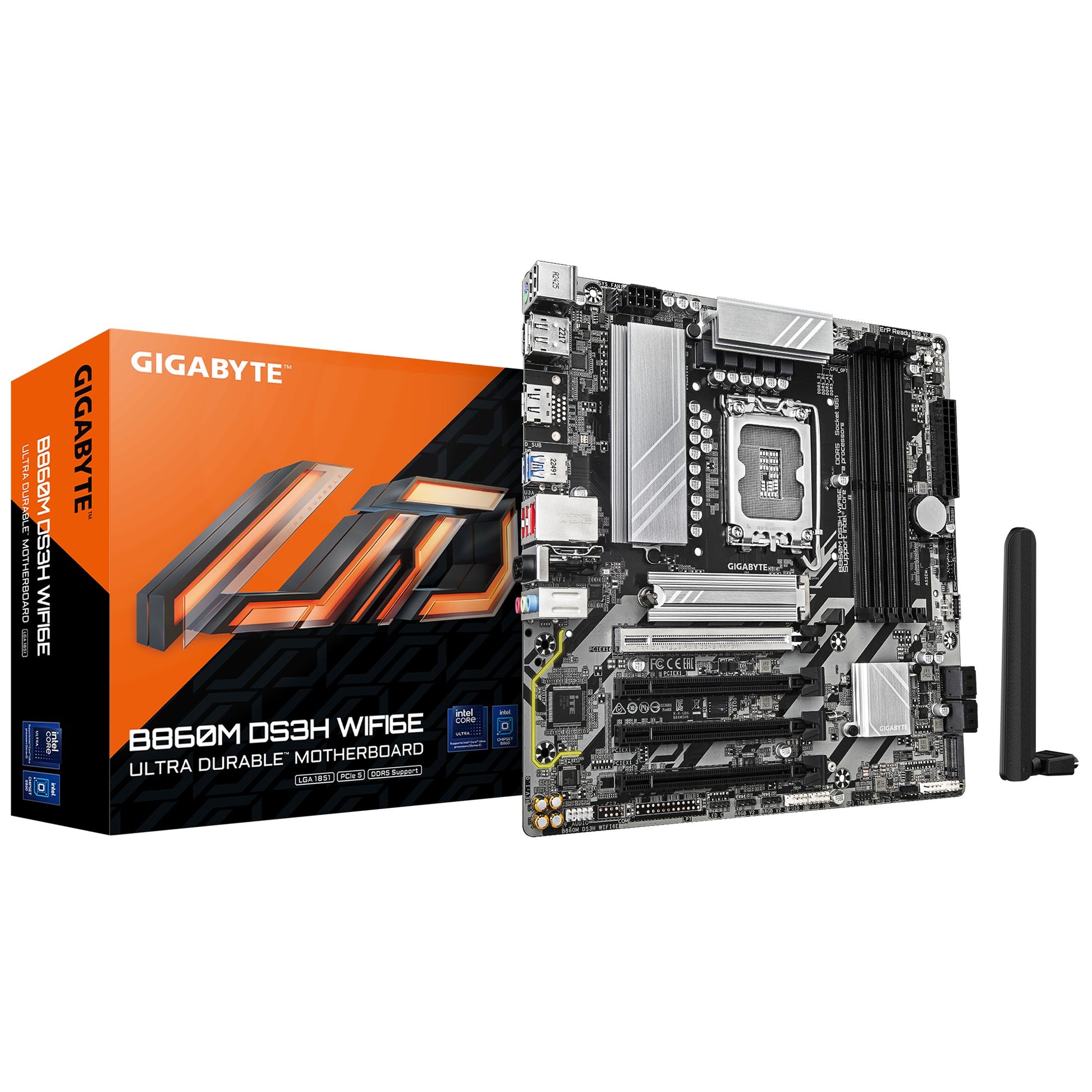

• Gigabyte M/B B860M DS3H WIFI6E 1.0, Intel ® B860, 4 x DDR5 up to 256 GB, 1x HDMI, 4 x PCI Express x16, 2 x M.2, 4 x SATA, 5x USB 3.2
1 1

Gigabyte

Gigabyte M/B B860M DS3H WIFI6E 1.0, Intel ® B860, 4 x DDR5 up to 256 GB, 1x HDMI, 4 x PCI Express x16, 2 x M.2, 4 x SATA, 5x USB 3.2

Gigabyte M/B B860M DS3H WIFI6E 1.0, Intel ® B860, 4 x DDR5 up to 256 GB, 1x HDMI, 4 x PCI Express x16, 2 x M.2, 4 x SATA, 5x USB 3.2

$285.00
$285.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

Gigabyte M/B B860M DS3H WIFI6E 1.0, Intel ® B860, 4 x DDR5 up to 256 GB, 1x HDMI, 4 x PCI Express x16, 2 x M.2, 4 x SATA, 5x USB 3.2


  • Gigabyte M/B B860M DS3H WIFI6E 1.0, Intel ® B860, 4 x DDR5 up to 256 GB, 1x HDMI, 4 x PCI Express x16, 2 x M.2, 4 x SATA, 5x USB 3.2
  • CPU
  • LGA1851 socket: Support for Intel® Core™ Ultra Processors
  • Go to GIGABYTE's website for the latest CPU support list.)
  • L3 cache varies with CPU
  • Chipset
  • Intel® B860 Express Chipset
  • Memory
  • Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
  • 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to 'Memory Support List' on GIGABYTE's website for more information.)
  • Onboard Graphics
  • Integrated Graphics Processor-Intel® HD Graphics support:
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • Support for HDMI 2.1 version and HDCP 2.3.
  • 2 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
  • Support for DisplayPort 2.1 version.
  • Graphics specifications may vary depending on CPU support.)
  • Support for up to triple-display at the same time
  • LAN
  • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module
  • Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)
  • Expansion Slots
  • CPU:
  • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
  • The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • Chipset:
  • 3 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1/2/3)
  • Storage Interface
  • CPU:
  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
  • Chipset:
  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB)
  • 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
  • USB
  • Chipset:
  • 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • 3 x USB 2.0/1.1 ports on the back panel
  • Chipset+USB 2.0 Hub:
  • 4 x USB 2.0/1.1 ports available through the internal USB headers
