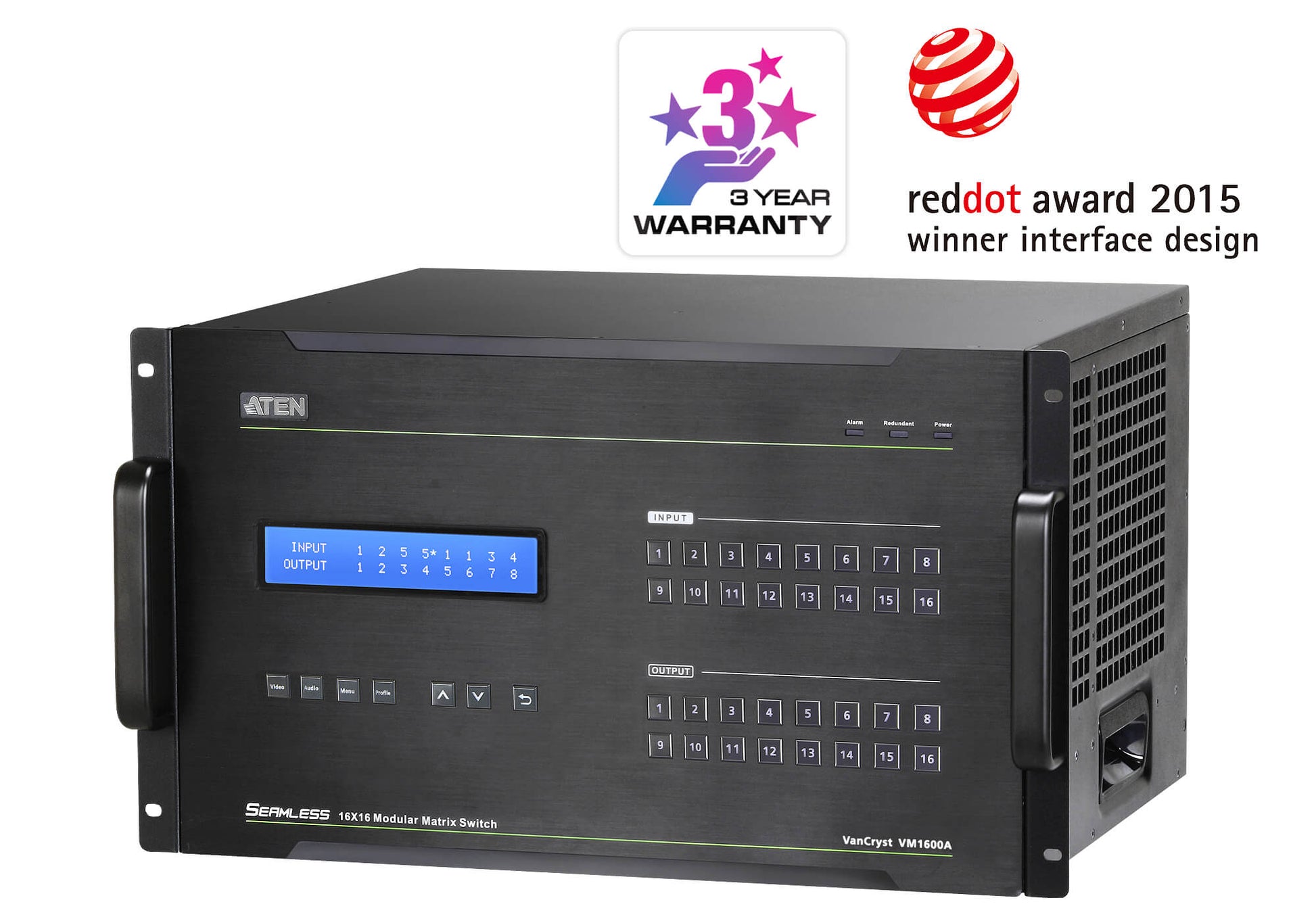

Aten 16x16 Modular Digital Matrix with Scaler, Seamless Switch, Hot-swappable Aten I/O boards, control via front-panel pushbuttons (PROJECT)


  • Aten 16x16 Modular Digital Matrix with Scaler, Seamless Switch, Hot-swappable Aten I/O boards, control via front-panel pushbuttons, RS232 and Ethernet (Telnet / Web GUI), supports Video Wall, EDID management and Calendar-based scheduling.
  • Connects any of 16 video sources to any of 16 displays in combination with ATEN Modular Matrix Solutions
  • Hot-pluggable: Modular Fan Design Power Module Easy integration of I/O boards
  • Optional redundant power supply for continuous operation
  • Multiple Control Methods – system management via front-panel pushbuttons, RS-232 control, and Ethernet connections (Web GUI)
  • Board Output 4 x Slot
  • Board Input 4 x Slot
  • Video Input
  • Interfaces Depends on which I/O board is inserted
  • Max. Data Rate 15.2 Gbps (3.8Gbps per Lane)
  • Audio
  • Input Depends on which Input board is inserted
  • Output Depends on which Output board is inserted
  • Control
  • RS-232 Connector: 1 x DB-9 Female (Black)
  • Serial Control Pin Configurations:
  • Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd
  • Baud Rate and Protocol:
  • Baud Rate:19200, Data Bits:8, Stop Bits:1, Parity: No, Flow Control: No
  • RS-485/RS-422 Connector: 1 x Captive Screw Connector, 5 Pole
  • Ethernet Connector: 1 x RJ-45 Female
  • EDID Settings EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)
  • Connectors
  • Power 1 x 3-Prong AC Socket
  • Power
  • Maximum Input Power Rating 100-240 VAC; 50/60Hz; 3/6 A
  • Power Consumption AC110V:460W:166BTU
  • AC220V:460W:156BTU
  • Fan Airflow: 55.2 cfm
  • Operating Voltage: 10.2 - 12VDC
  • Operating Temp: -10 - 60°C
  • Environmental
  • Operating Temperature 0 - 40°C
  • Storage Temperature -20 - 60°C
  • Humidity 0 - 80% RH, Non-Condensing
  • Physical Properties
  • Housing Metal
  • Weight 15.11 kg ( 33.28 lb )
  • Dimensions (L x W x H) 48.20 x 46.66 x 26.59 cm
  • 18.98 x 18.37 x 10.47 in.)
  • Rack Height (U Spaces) 6U
  • Carton Lot 1 pc
  • Package Contents
  • 1x VM1600A Modular Matrix Switch
  • 1x Power Cord
  • 1x Terminal Block connector
  • 1x Fan Module (pluggable)
  • 1x Power Module (pluggable)
  • 1x User Instructions
