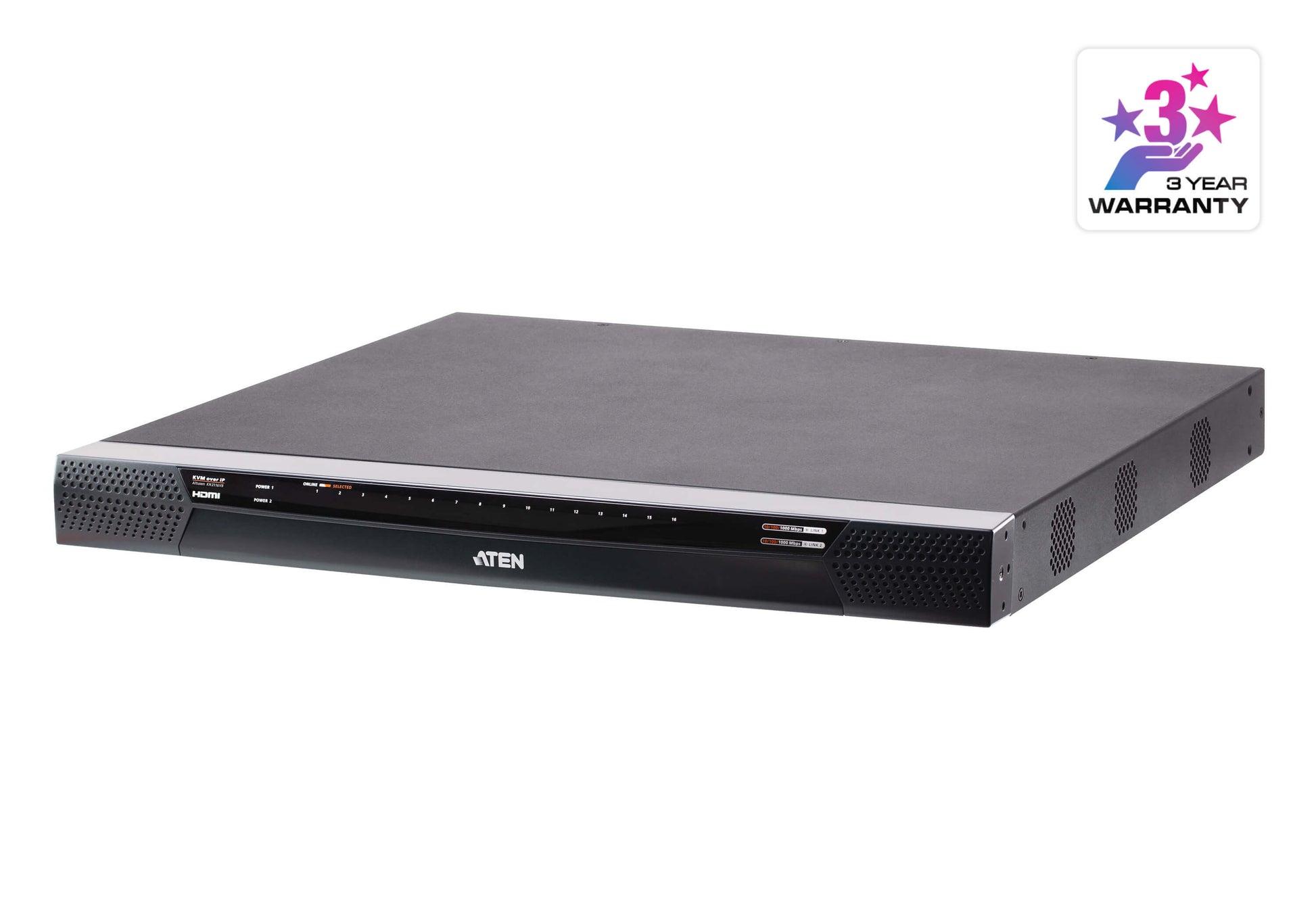

• Aten 1-Local/2-Remote Access 16-Port Multi-Interface Cat 5 KVM over IP Switch
1 1

Aten

Aten 1-Local/2-Remote Access 16-Port Multi-Interface Cat 5 KVM over IP Switch

Aten 1-Local/2-Remote Access 16-Port Multi-Interface Cat 5 KVM over IP Switch

$8,870.00
$8,870.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

Aten 1-Local/2-Remote Access 16-Port Multi-Interface Cat 5 KVM over IP Switch


  • The KN series KVM over IP switch provides local console and remote over IP access for users to monitor and access their entire data center over a network. The KN series offers superior FHD video resolution up to 1920 x 1200, virtual media transmissions at double speed, FIPS 140-2 with level 1 security standards by using an embedded FIPS 140-2 certified OpenSSL cryptographic module. Equipped with dual on-board NICs, the KN series is built to ensure reliability and availability of remote access to all servers. The KN series can be remotely accessed via WinClient / JavaClient* at a console from a separated location for management and operation. ATEN also provides an iOS app - PadClient, whose intuitive interface makes it easy to connect to the KVM over IP switch and control computers direct from user's iPad.
  • High port density – RJ-45 connectors and Cat 5e / 6 cable for up to 16 ports in 1U housing
  • Laptop USB Console (LUC) – a dedicated USB port directly connects to a laptop for easy console operation
  • 2 separate buses for remote KVM over IP access (varies by different models)
  • Two 10 / 100 / 1000 Mbps NICs for redundant LAN or two IP operation
  • Blade server support
  • Supports PS/2, USB, Sun Legacy and serial (RS-232) connectivity
  • Multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
  • Audio enabled
  • Dual power supply
  • Superior video quality – video resolution up to 1920 x 1200 @ 60 Hz, 24-bit color depth; transmission distance of up to 50m
  • Cascadable – controls up to 512 computers
  • Console Connections
  • Local 1
  • Remote 2
  • Computer Connections
  • Direct 16
  • Maximum 512 (via Cascade)
  • Port Selection Pushbuttons, Hotkeys, GUI
  • Connectors
  • Console Ports 2 x USB Type-A Female (White)
  • 1 x HDMI Female (Black)
  • 1 x VGA HDB-15 (Blue)
  • USB Port 3 x USB Type-A Female
  • Audio 2 x Audio Jack Female
  • Laptop USB Console (LUC) Port 1 x USB Mini-B Female
  • KVM Ports 16 x RJ-45 Female
  • Serial 1 x RJ-45 Female
  • LAN Ports 2 x RJ-45 Female
  • PON 1 x RJ-4
