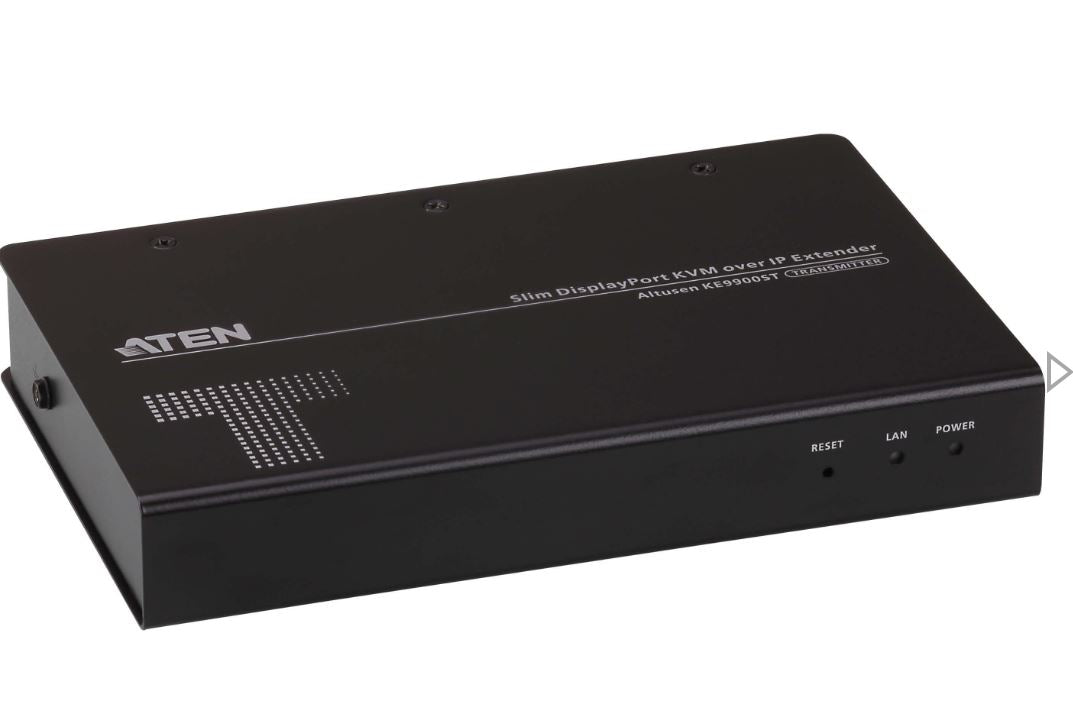

• Aten DisplayPort Slim KVM over IP Transmitter, supports up to 1920 x 1200 @ 60 Hz
1 1

Aten

Aten DisplayPort Slim KVM over IP Transmitter, supports up to 1920 x 1200 @ 60 Hz

Aten DisplayPort Slim KVM over IP Transmitter, supports up to 1920 x 1200 @ 60 Hz

$1,159.00
$1,159.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

Aten DisplayPort Slim KVM over IP Transmitter, supports up to 1920 x 1200 @ 60 Hz


  • Aten DisplayPort Slim KVM over IP Transmitter, supports up to 1920 x 1200 @ 60 Hz
  • Advance processor provides lossless and low latency video transmissions up to 1920 x 1200 @ 60Hz; 24-bit color depth; compliant with DP 1.2 and HDCP 1.3
  • Flexible connections - allows multiple extender and matrix connections for Multi-Display installations and Video Wall applications
  • Slim, light, and fanless design
  • Hardware
  • Advance processor provides lossless and low latency video transmissions up to 1920 x 1200 @ 60Hz; 24-bit color depth
  • Support standard HDMI resolutions from 640 x 480 up to 1920 x 1200
  • USB Virtual Media Support
  • Compliant with DP 1.2 and HDCP 1.3
  • Auto-MDIX – automatically detects cable type
  • Built-in 8KV/15KV ESD protection and 1KV surge protection
  • Slim, light and fanless design for silent operations that are energy efficient
  • Support connection via Gigabit Ethernet port
  • Rack Mountable* and Wall Mountable
  • Connectors
  • KVM Ports 1 x USB Type B Female (White)
  • 1 x DisplayPort Female (Black)
  • 1 x DB-9 Female (Black)
  • Power 1 x DC Jack (Black)
  • 1 x 3-Pole Terminal Block Connector (Green)
  • LAN Ports 1 x RJ-45 (Black)
  • Switches
  • Reset 1 x Semi-recessed Pushbutton
  • LEDs
  • 10/100/1000 Mbps 1 (10: Orange / 100: Orange & Green / 1000: Green)
  • Power 1 (Blue)
  • Emulation
  • Keyboard / Mouse USB
  • Power Consumption DC5V:4.75W:22BTU
  • DC48V:6.97W:33BTU
  • Video Resolution Up to 1920 x 1200 @ 60Hz
  • Environmental
  • Operating Temperature 0–50°C
  • Storage Temperature -20–60°C
  • Humidity 0–95% RH, Non-condensing
  • Physical Properties
  • Housing Metal
  • Weight 0.65 kg ( 1.43 lb )
  • Dimensions (L x W x H) 18.20 x 11.75 x 2.87 cm
  • 7.17 x 4.63 x 1.13 in.)
  • Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
