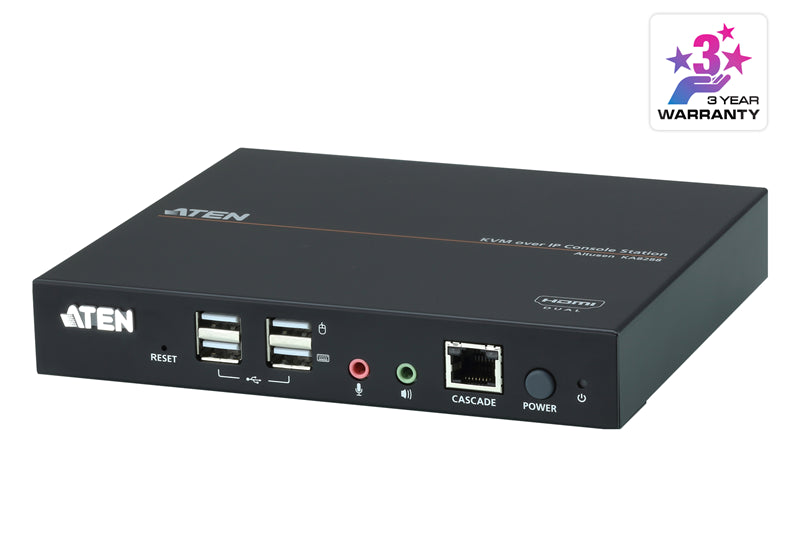

• Aten Dual HDMI USB KVM Console station for selected Aten KNxxxx KVM over IP series, supports full HD with small form factor design for 0U rack space
1 1

Aten

Aten Dual HDMI USB KVM Console station for selected Aten KNxxxx KVM over IP series, supports full HD with small form factor design for 0U rack space

Aten Dual HDMI USB KVM Console station for selected Aten KNxxxx KVM over IP series, supports full HD with small form factor design for 0U rack space

$1,689.00
$1,689.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

Aten Dual HDMI USB KVM Console station for selected Aten KNxxxx KVM over IP series, supports full HD with small form factor design for 0U rack space


  • Aten Dual HDMI USB KVM Console station for selected Aten KNxxxx KVM over IP series, supports full HD with small form factor design for 0U rack space
  • A standalone Java-free console that replaces PC or NB, enabling users to remotely access and control ATEN’s KVM over IP switches*
  • Advanced FPGA graphics processor – with a Full HD resolution of 1920 x 1200
  • Panel Array Mode™ – allows administrators to monitor the video output of up to 64 servers on one screen simultaneously
  • Space-saving 0U rack mount design for rear rack mounting
  • Specifications
  • Connectors
  • Video 2 x HDMI Female
  • RS-232 1 x DB-9 Male
  • Power 1 x DC Jack
  • Audio 2 x Audio Jack Female
  • LAN Ports 1 x RJ-45 Female
  • Keyboard 1 x USB Type-A Female
  • Mouse 1 x USB Type-A Female
  • USB Port 2 x USB Type-A Female
  • Cascade Port 1 x RJ-45 Female
  • LEDs
  • Power 1 (Blue)
  • Switches
  • Power 1 x Push button
  • Reset 1 x Semi-recessed Push button
  • Video 1920 x 1200 @ 60Hz
  • Power Consumption DC 5V:6.53W:56.18BTU
  • Environmental
  • Operating Temperature 0 -40°C
  • Storage Temperature -20 - 60°C
  • Humidity 0-80% RH, Non-condensing
  • Physical Properties
  • Housing Metal
  • Weight 0.80 kg ( 1.76 lb )
  • Dimensions (L x W x H) 17.42 x 15.54 x 2.88 cm
  • 6.86 x 6.12 x 1.13 in.)
  • Compatible Appliances
  • KVM over IP switches KN1132V, KN2116VA, KN4116VA, KN2132VA, KN4132VA, KN4164V, KN8132V, KN8164V, KN2124VA, KN4124VA, KN2140VA, KN4140VA, CN8000A, KN1000A.
  • Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format
