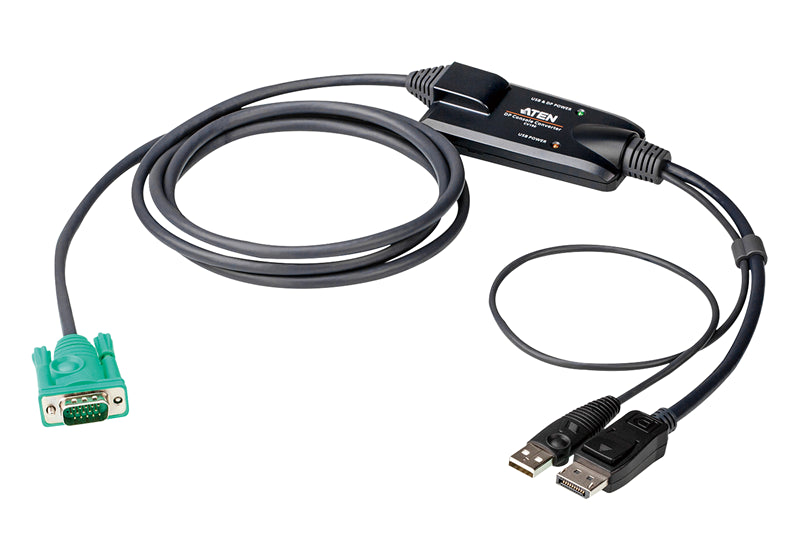

• Aten DisplayPort Console Converter, connects an Aten SPHD (VGA KVM) interface switch to a DisplayPort and USB PC, up to 1920 x 1080 @ 60 Hz, compliant
1 1

Aten

Aten DisplayPort Console Converter, connects an Aten SPHD (VGA KVM) interface switch to a DisplayPort and USB PC, up to 1920 x 1080 @ 60 Hz, compliant

Aten DisplayPort Console Converter, connects an Aten SPHD (VGA KVM) interface switch to a DisplayPort and USB PC, up to 1920 x 1080 @ 60 Hz, compliant

$61.00
$61.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

Aten DisplayPort Console Converter, connects an Aten SPHD (VGA KVM) interface switch to a DisplayPort and USB PC, up to 1920 x 1080 @ 60 Hz, compliant


  • Aten DisplayPort Console Converter, connects an Aten SPHD (VGA KVM) interface switch to a DisplayPort and USB PC, up to 1920 x 1080 @ 60 Hz, compliant with DP 1.1
  • Featurs:
  • Connects an ATEN SPHD-interfaced KVM switch to a DisplayPort and USB-enabled target computer
  • Supports high video resolution – up to 1920 x 1080 @ 60Hz
  • DisplayPort 1.1 compliant
  • Supports USB keyboard and mouse
  • Bus-powered – no external power adapter required
  • Easy installation – no software required
  • Console Connections 1
  • Connectors
  • To Computer 1 x USB Type A Male
  • 1 x DisplayPort Male
  • To Switch 1 x SPHD-15 Male
  • Switches
  • Power Selected 1 x Slide Switch
  • LEDs
  • Status 1 (Green; USB & DP Power)
  • 1 (Orange; USB Power)
  • Video 1920 x 1080 @ 60 Hz
  • Power Consumption DC5V:1.01W:5BTU
  • Environmental
  • Operating Temperature 0-50°C
  • Storage Temperature -20-60°C
  • Humidity 0-80% RH, Non-condensing
  • Physical Properties
  • Housing Plastic
  • Weight 0.21 kg ( 0.46 lb )
  • Cable Length 1.8 m
  • Dimensions (L x W x H) 9.00 x 4.30 x 2.18 cm
  • 3.54 x 1.69 x 0.86 in.)
  • Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
  • Package Contents
  • 1x CV190 DisplayPort console converter cable
