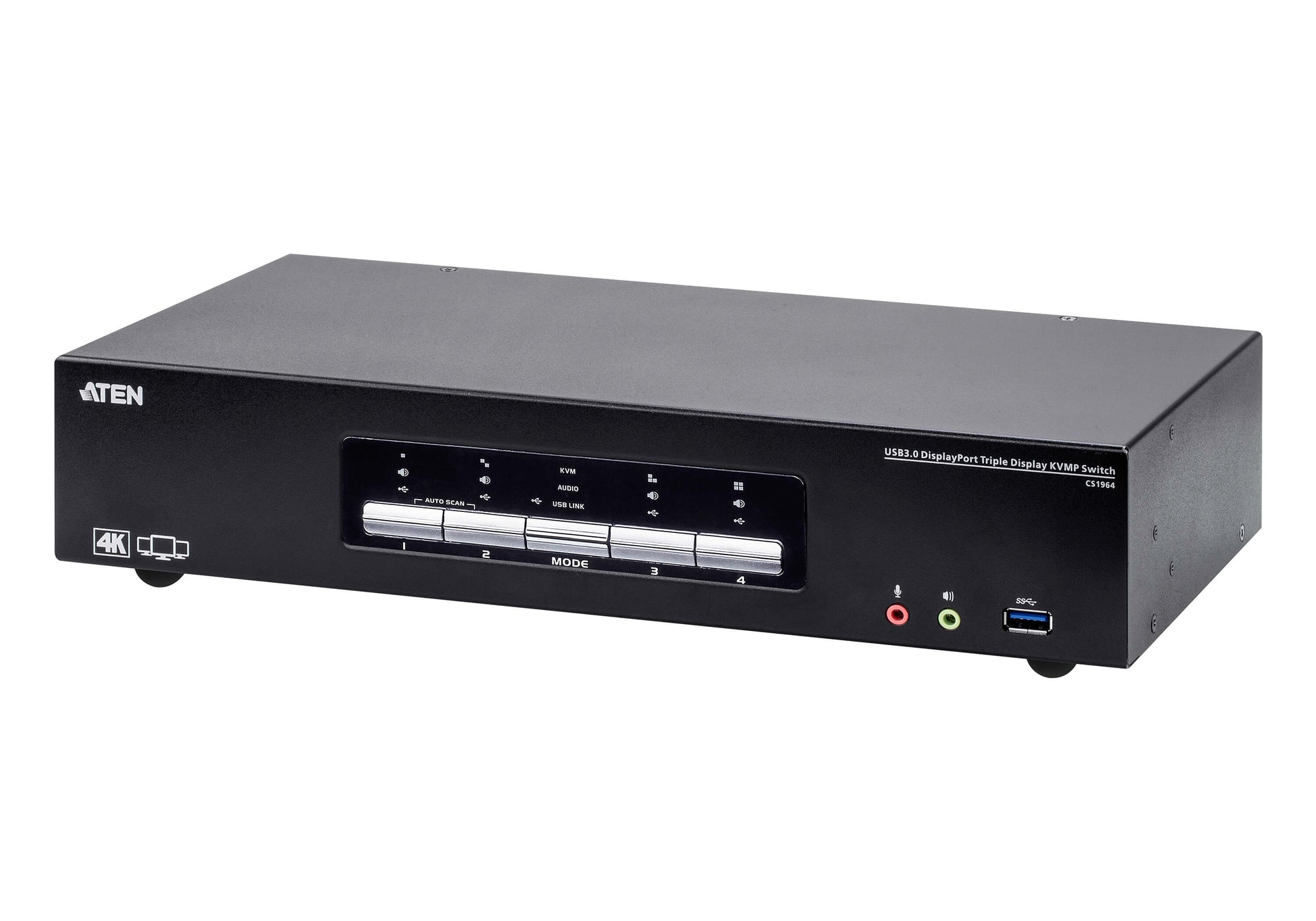

• Aten Desktop KVMP Switch 4 Port Triple Display 4k DisplayPort w/ audio, Cables Included, 2x USB Port, Selection Via Front Panel
1 1

Aten

Aten Desktop KVMP Switch 4 Port Triple Display 4k DisplayPort w/ audio, Cables Included, 2x USB Port, Selection Via Front Panel

Aten Desktop KVMP Switch 4 Port Triple Display 4k DisplayPort w/ audio, Cables Included, 2x USB Port, Selection Via Front Panel

$1,819.00
$1,819.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

Aten Desktop KVMP Switch 4 Port Triple Display 4k DisplayPort w/ audio, Cables Included, 2x USB Port, Selection Via Front Panel


  • Aten 4 Port USB 3.0 4K Triple DisplayPort KVMP Switch, supports up to 4096 x 2160 @ 60 Hz, supports MST on DP 1.2 compliant inputs, suppports Video DynaSync, 6 displays by connecting two CS1964 units, includes only two KVM Cable kits
  • Superior video quality – 4096 x 2160 @ 60Hz and 3840 x 2160 @ 60Hz; 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
  • Hex-Display – connect a second CS1964 unit for two triple-display setup controlled by one operator
  • Supports Video DynaSync
  • Computer selection via pushbuttons, hotkeys, mouse, and RS-232 Commands
  • omputer Connections 4
  • Port Selection Hotkey, Pushbutton, Mouse, RS-232 Commands
  • Connectors
  • Console Ports 2 x USB Type A Female
  • 3 x HDMI Female (Black)
  • 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
  • 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
  • KVM (Computer) Ports 4 x USB3.1 Gen1 Type B Female (Blue)
  • 12 x DisplayPort Female (Black)
  • 4 x 3.5mm Audio Jack Female (Green)
  • 4 x 3.5mm Audio Jack Female (Pink)
  • Daisy Chain Ports 1 x RJ-45 Female
  • Power 1 x DC Jack
  • USB Hub 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
  • Switches
  • Selected 5 x Pushbutton
  • Station Selection 1 x Slide Switch
  • LEDs
  • USB Link 5 (Green)
  • Audio 5 (Green)
  • KVM 5 (Orange)
  • Emulation
  • Keyboard / Mouse USB
  • Video 4096 x 2160 @ 60Hz
  • Scan Interval 1-99 seconds (default: 5 seconds)
  • Power Consumption DC12V:15.49W:115BTU
  • Environmental
  • Operating Temperature 0–50°C
  • Storage Temperature -20–60°C
  • Humidity 0-80% RH, Non-condensing
  • Physical Properties
  • Housing Metal
  • Weight 1.93 kg ( 4.25 lb )
  • Dimensions (L x W x H)33.50 x 15.60 x 6.55 cm
