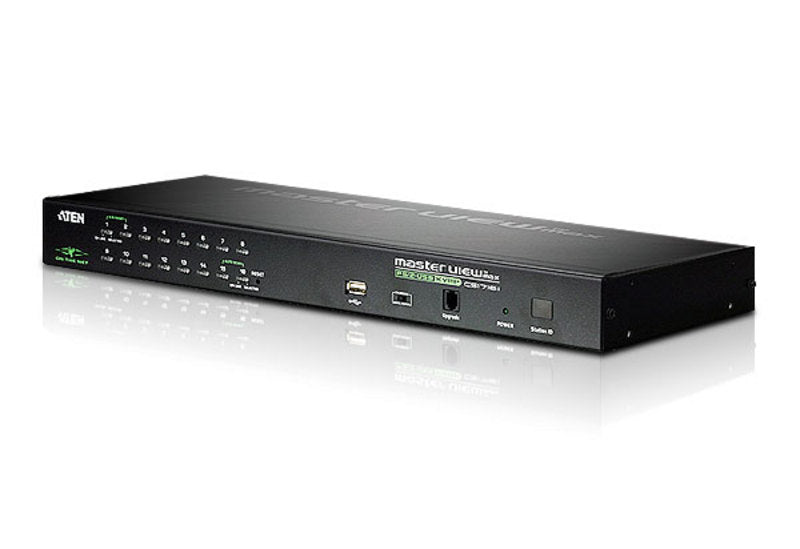

• Aten 16 Port PS/2-USB 2.0 KVMP Switch over IP, 1 VGA USB KVM Cable, 1 VGA PS/2 KVM Cable included
1 1

Aten

Aten 16 Port PS/2-USB 2.0 KVMP Switch over IP, 1 VGA USB KVM Cable, 1 VGA PS/2 KVM Cable included

Aten 16 Port PS/2-USB 2.0 KVMP Switch over IP, 1 VGA USB KVM Cable, 1 VGA PS/2 KVM Cable included

$1,459.00
$1,459.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Customer Satisfaction
  • 30 days change of mind return policy
  • Manufacture Warranty

Change of Mind Returns:

We want you to be happy with your purchase. That’s why we offer a 30-day change of mind return policy, allowing you to request a return for a refund or exchange within 30 days of receiving your order. Please note that return shipping costs will be deducted from the refund amount as follows:

For small, single items under 1kg with free shipping, a $10.70 charge will be deducted.

The return postage cost will be deducted for other free shipping orders based on the item’s weight and dimensions.

Read More

View full details

Aten 16 Port PS/2-USB 2.0 KVMP Switch over IP, 1 VGA USB KVM Cable, 1 VGA PS/2 KVM Cable included


  • Superior video quality - up to 2048 x 1536; DDC2B for the local console; up to 1920 x 1200 @ 60Hz** and 1600 x 1200 @ 60Hz / 24 bit color depth for remote sessions
  • Supports TLS 1.2 data encryption and RSA 2048 bit certificates for secure user logins from a browser
  • Panel array mode enables user to monitor multiple servers from single screen at the same time - each selected server's video output appears in a separate panel - users can easily select the number of panels to view
  • Computer Connections
  • Direct 16
  • Maximum 256 (via daisy chain)
  • Port Selection OSD/GUI; Hotkey; Pushbutton
  • Connectors
  • Console Ports 1 x SPHD-18 Male (Yellow)
  • KVM Ports 16 x SPHD-17 Female (Yellow)
  • Daisy Chain Ports 1 x DB-25 Male
  • Power 1 x DC Jack
  • LAN Ports 1 x RJ-45 Female
  • Firmware Upgrade 1 x RJ-11
  • USB Port 1 x USB Type A Female
  • Switches
  • Reset 1 x Semi-recessed Pushbutton
  • Port Selection 16 x Pushbutton
  • Firmware Upgrade Recovery 1 x Slide
  • LEDs
  • Online 16 (Orange)
  • Selected 16 (Green)
  • Station ID 1 x 2-digit, 7-segment (Orange)
  • Power 1 (Dark Green)
  • 10/100 Mbps 1 (Orange/Green - at LAN port)
  • Emulation
  • Keyboard / Mouse PS/2, USB
  • Video
  • Local 2048 x 1536; DDC2B
  • Remote FHD : 1920 x 1200 @ 60Hz
  • Non-FHD : 1600 x 1200 @ 60Hz
  • Scan Interval 1–255 sec.
  • Power Consumption DC5.3V:9.2W:58BTU
  • Environmental
  • Operating Temperature 0–50°C
  • Storage Temperature -20–60°C
  • Humidity 0–80% RH, Non-condensing
  • Physical Properties
  • Housing Metal
  • Weight 3.00 kg ( 6.61 lb )
  • Dimensions (L x W x H) 43.72 x 15.96 x 4.40 cm
  • 17.21 x 6.28 x 1.73 in.)
  • Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
